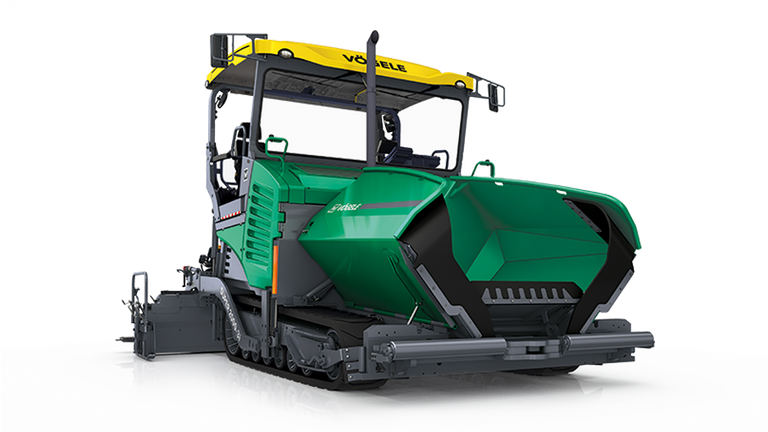

SUPER 2000-3i Tracked paver Highway Class
US t/hr
The versatile Highway Class tracked paver – A true SUPER paver
With the SUPER 2000-3i VÖGELE has now developed an entirely new paver for the North American market. The tracked paver is designed primarily for use in highway construction and large-scale commercial applications, which are all about power and productivity. With a powerful, 6-cylinder engine and high-output hydraulic drives, the paver is fully equipped for these jobs.
Show less
_US_Machine_View.jpg)
_US_Machine_View.jpg)
_US_Machine_View.jpg)
_US_Machine_View.jpg)
_US_Machine_View.jpg)
ErgoPlus 3
Even the very best machine with the most advanced technology can only really show its strengths if it can be operated easily and as intuitively as possible. At the same time, it should offer an ergonomic and safe working environment for the operating team. That is why the ErgoPlus 3 operating concept focuses on the operator. With VÖGELE pavers, the user consequently retains full control over the machine and construction project.
VÖGELE EcoPlus
The machine concept of the "Dash 3" road pavers is designed under the motto "Lower consumption – lower emissions – lower costs". Specifically, the low-emissions package combines VÖGELE EcoPlus a number of individual measures that can contribute to reducing fuel consumption and noise emissions.
Niveltronic Plus
The automatic leveling system Niveltronic Plus is an in-house development of JOSEPH VÖGELE AG and based on many years of experience in grade and slope control technology. Easy operation, precision and reliability are its hallmarks for perfect mastery of all grade and slope control jobs..
Technical specifications
- Engine
- Version
- Manufacturer
- Type
- Exhaust emissions standard
- Exhaust emissions after-treatment
- ECO mode output
- Nominal output
- Fuel tank
-
- Version
- liquid-cooled 6-cylinder diesel engine
- Manufacturer
- Cummins
- Type
- QSB 6.7 - C250
- Exhaust emissions standard
- European exhaust emissions standard 4, US standard EPA Tier 4f
- Exhaust emissions after-treatment
- DOC, SCR
- ECO mode output
- 224 hp / 1,700 rpm
- Nominal output
- 250 hp / 2,000 rpm
- Fuel tank
- 85 Imp.gal
- Undercarriage
- Version
- Traction drive crawler tracks
- Track tension adjuster
- Ground contact
- Speeds
- Paving speed (up to)
- Travel speed (up to)
- Lubrication of track rollers
-
- Version
- provided with rubber pads
- Traction drive crawler tracks
- electronically controlled separate hydraulic drive provided for each crawler track
- Track tension adjuster
- hydraulic
- Ground contact
- 9 ft 10 in x 6 in
- Paving speed (up to)
- 250 fpm
- Travel speed (up to)
- 7.46 mph
- Lubrication of track rollers
- lifetime
- Hopper capacity
- Width
- Feed height (bottom of material hopper) [imperial]
- Push-rollers
- Standard
- Positions
-
- Hopper capacity
- 16.5 tons
- Width
- 11 ft 3 in
- Feed height (bottom of material hopper) [imperial]
- 23 in
- Standard
- oscillating
- Positions
- can be adjusted in a forward direction by 3 or 6 in
- Conveyors
- Number
- Version
- Drive
- Running speed (up to)
- Augers
- Number
- Version
- Drive
- Speed (up to)
- Height
- Standard height
- Lubrication
-
- Number
- 2
- Version
- with replaceable feeder bars, direction of conveyor temporarily reversible
- Drive
- separate hydraulic drives, proportional control
- Running speed (up to)
- 197 fpm
- Number
- 2
- Version
- with replaceable auger blades, reversible direction of rotation
- Drive
- separate hydraulic drives, proportional control
- Speed (up to)
- 130 rpm
- Height
- infinitely variable
- Standard height
- hydraulically adjustable by 6 in
- Lubrication
- centralized lubrication system, electrically-driven grease pump
- Layer thickness (up to)
- Screed
- Screed heating
- Power supply
-
- Layer thickness (up to)
- 12 in
- Screed
-
Type Basic width Maximum width Compacting systems VF 600 10 ft 25 ft 5 in V VR 600 10 ft 28 ft 3 in V AB 600 9 ft 10 in 27 ft 11 in TV
- Screed heating
- electric, thermostat-controlled
- Power supply
- three-phase AC generator
