Cold milling machines


Efficient milling and granulating of road pavements

Asphalt and concrete pavements can be cost-effectively removed with cold milling machines. The range of applications extends from the complete removal of asphalt and concrete to the layer-by-layer removal and levelling of asphalt and concrete surfaces. With WIRTGEN cold milling machines, it is possible to machine working widths from 1 ft 2 in up to 14 ft 5 in and working depths up to 1 ft 2 in in a single pass. In addition, a large number of different milling drums, such as ECO cutters or fine milling drums, ensure that machines can be used with a high degree of flexibility.

Small milling machines

Small milling machines are equipped with a wheeled chassis and a milling drum positioned at the rear. The granulated RAP which is broken up by the rotating milling drum is transferred to a slewing and height-adjustable discharge conveyor and immediately loaded onto waiting transport vehicles. The compact rear loaders are highly maneuverable and their rear right wheel can be swiveled in when milling flush to the edges of obstacles. A variety of different milling drums are available, enabling the small milling machines to cover a wide range of applications extending from partial pavement rehabilitations and tie-in milling to the rehabilitation of industrial floors.

W 35 XRi Small milling machines
W 35 XRi

Small milling machines

Milling width
14 in
Milling depth max.
4 in
Maximum power 45 kW / 60 hp
Operating weight, CE
10,252 lbs
W 50 Ri Small milling machines
W 50 Ri

Small milling machines

Milling width
20 in
Milling depth max.
8 in
Maximum power 105 kW / 141 hp
Operating weight, CE
15,278 lbs
W 60 Ri Small milling machines
W 60 Ri

Small milling machines

Milling width
2 ft
Milling depth max.
8 in
Maximum power 105 kW / 141 hp
Operating weight, CE
16,424.4 lbs
W 100 Ri Small milling machines
W 100 Ri

Small milling machines

Milling width
3 ft 3 in
Milling depth max.
12 in
Maximum power 160 kW / 215 hp
Operating weight, CE
32,518 lbs
W 120 Ri Small milling machines
W 120 Ri

Small milling machines

Milling width
3 ft 11 in
Milling depth max.
12 in
Maximum power 160 kW / 215 hp
Operating weight, CE
33,951 lbs

Compact milling machines

The highly flexible compact milling machines combine the advantages of the small and large milling machine classes. The maneuverable front-loaders are easy to transport and are ideal for use on confined job sites. These powerful machines can mill off entire asphalt pavements cost-effectively. A wide range of different milling drums is available, greatly extending the possible range of applications so that the milling of individual layers and fine milling operations are also among the everyday tasks of these machines.

W 100 Fi Compact milling machines
W 100 Fi

Compact milling machines

Milling width
3 ft 3 in
Milling depth max.
13 in
Maximum power 265 kW / 355 hp
Operating weight, CE
44,092 lbs
W 120 Fi Compact milling machines
W 120 Fi

Compact milling machines

Milling width
4 ft
Milling depth max.
13 in
Maximum power 265 kW / 355 hp
Operating weight, CE
46,297 lbs

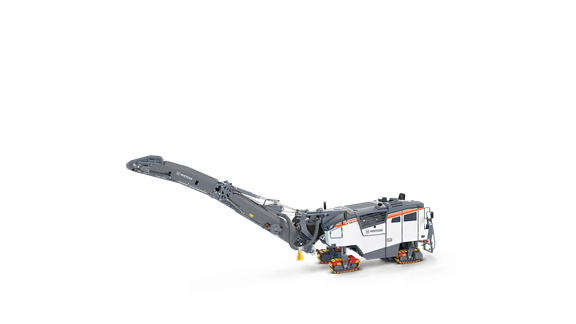

W 120 FTi Compact milling machines
W 120 FTi

Compact milling machines

Milling width
3 ft 11 in
Milling depth max.
13 in
Maximum power 265 kW / 355 hp
Operating weight, CE
46,297 lbs
W 130 Fi Compact milling machines
W 130 Fi

Compact milling machines

Milling width
4 ft 3 in
Milling depth max.
13 in
Maximum power 265 kW / 355 hp
Operating weight, CE
47,179 lbs
W 150 XFi Compact milling machines
W 150 XFi

Compact milling machines

Milling width
4 ft 11 in
Milling depth max.
13 in
Maximum power 298 kW / 400 hp
Operating weight, CE
45,966 lbs
W 150 Fi Compact milling machines
W 150 Fi

Compact milling machines

Milling width
4 ft 11 in
Milling depth max.
1 ft 1 in
Maximum power 313 kW / 420 hp
Operating weight, CE
46,958 lbs

Large milling machines

Large milling machines have a milling drum positioned centrally beneath the machine and a two-part front-loading system. Trucks can be loaded quickly and flexibly via the slewing and height-adjustable discharge conveyor. A variety of different milling drums and milling drum assemblies are available to cater to the wide array of milling tasks. They can be exchanged quickly and easily to suit the application. The range of applications extends from wide-scale complete removal down to a depth of 35 cm in a single pass to the rehabilitation of concrete pavements and airport runways as well as fine milling to improve pavement skid resistance.

W 200 Fi Large milling machines
W 200 Fi

Large milling machines

Milling width
7 ft 3 in
Milling depth max.
13 in
Maximum power 455 kW / 610 hp
Operating weight, CE
62,000 lbs
W 200 Hi Large milling machines
W 200 Hi

Large milling machines

Milling width
6 ft 11 in
Milling depth max.
12 in
Maximum power 455 kW / 610 hp
Operating weight, CE
65,697 lbs
W 207 Fi Large milling machines
W 207 Fi

Large milling machines

Milling width
7 ft 3 in
Milling depth max.
13 in
Maximum power 470 kW / 630 hp
Operating weight, CE
63,150 lbs

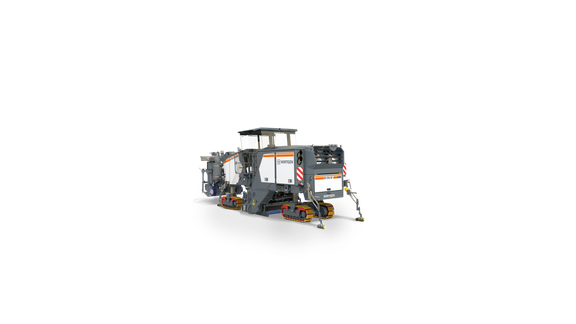

W 210 Fi Large milling machines
W 210 Fi

Large milling machines

Milling width
7 ft 3 in
Milling depth max.
13 in
Maximum power 563 kW / 755 hp
Operating weight, CE
64,500 lbs

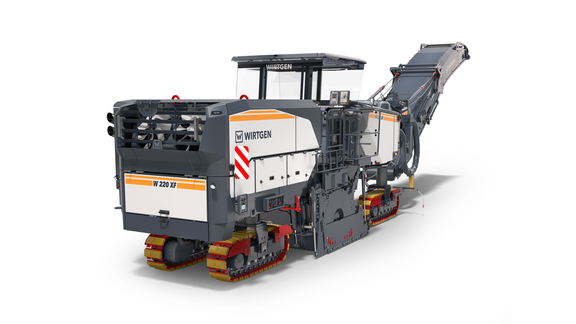

W 220 XFi Large milling machines
W 220 XFi

Large milling machines

Milling width
7 ft 3 in
Milling depth max.
14 in
Maximum power 627 kW / 841 hp
Operating weight, CE
83.335 lbs
W 220 Fi Large milling machines
W 220 Fi

Large milling machines

Milling width
7 ft 3 in
Milling depth max.
14 in
Maximum power 597 kW / 801 hp
Operating weight, CE
81,792 lbs
W 250 Fi Large milling machines
W 250 Fi

Large milling machines

Milling width
7 ft 3 in
Milling depth max.
14 in
Maximum power 753 kW / 1,010 hp
Operating weight, CE
93,256 lbs
