Screeds


VÖGELE screeds – Because building roads requires accuracy

The screed is the heart of each road paver. From an engineering perspective, it is the most crucial component, guaranteeing that the specified results are achieved on any paving job. JOSEPH VÖGELE AG is committed to the manufacture of extremely reliable cutting-edge screeds in premium quality.

Your selection: 0 products

Extending screeds

VÖGELE extending screeds are particularly adaptable, making them ideal for paving in varying widths and on winding roads. They cover a wide field of applications, handling paving widths from 10 in to 31 ft 2 in. Depending on the type of paver used, they can be equipped with various compacting systems. The range extends from the simplest screed version with vibrators (V) to the most powerful high compaction screeds with tamper (T) and two pressure bars (P2).

AB 220
AB 220
Maximum paving width 11 ft 6 in
Minimum paving width 1 ft 8 in
Compacting systems V, TV
AB 340
AB 340
Maximum paving width 16 ft 5 in
Minimum paving width 2 ft 6 in
Compacting systems V, TV
AB 500
AB 500
Maximum paving width 27 ft 11 in
Minimum paving width 8 ft 4 in
Compacting systems TV, TP1, TP2, TP2 Plus
AB 500
AB 500
Maximum paving width 28 ft 9 in
Minimum paving width 8 ft 4 in
Compacting systems TV, TP1, TP2, TP2 Plus
AB 600
AB 600
Maximum paving width 31 ft 2 in
Minimum paving width 9 ft 10 in
Compacting systems TV, TP1, TP2, TP2 Plus
AB 600
AB 600
Maximum paving width 32 ft
Minimum paving width 9 ft 10 in
Compacting systems TV, TP1, TP2, TP2 Plus
VF 500
VF 500
Maximum paving width 19 ft 6 in
Minimum paving width 4 ft
Compacting systems V

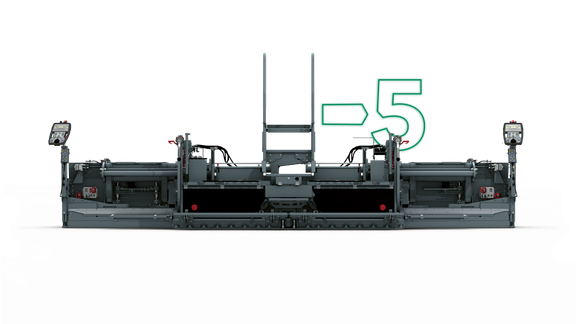

VF 600
VF 600
Maximum paving width 25 ft 5 in
Minimum paving width 6 ft
Compacting systems V

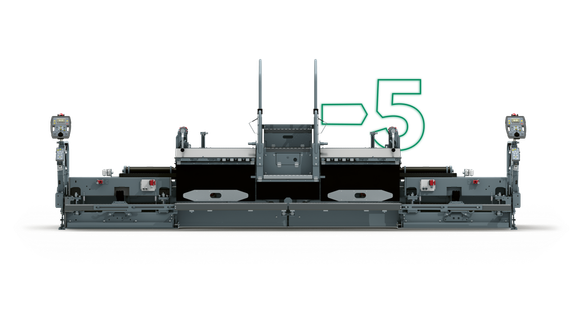

VR 600
VR 600
Maximum paving width 28 ft 3 in
Minimum paving width 10 ft
Compacting systems V

Fixed-width screeds

VÖGELE fixed-width screeds demonstrate their strengths wherever pavements need to be built in large widths up to 59 ft 1 in, true to line and level. And in all those projects requiring high compaction of materials such as water-bound base course mixes, Roller Compacted Concrete (RCC) or Paver Compacted Concrete (PCC). Thanks to 4 ft 1 in hydraulic bolt-on extensions, paving width is infinitely variable within a range of 8 ft 2 in. Screed plates, tamper bars and pressure bar(s) are heated uniformly for a homogeneous surface structure. The electric heating warms the screed up to its operating temperature much more quickly, even with the engine running at minimum rpm, thanks to intelligent generator management.

SB 300
SB 300
Maximum paving width 52 ft 6 in
Minimum paving width 9 ft 10 in
Compacting systems TV, TP1, TP2
SB 300 HD
SB 300 HD
Maximum paving width 39 ft 4 in
Minimum paving width 9 ft 10 in
Compacting systems TV
SB 350
SB 350
Maximum paving width 59 ft 1 in
Minimum paving width 11 ft 6 in
Compacting systems TV, TP1, TP2

VÖGELE Pave Width Configurator

This interactive application shows you how to build up your paver’s auger and screed in an optimal way. Based on the pave width required for your project, we guide you step by step through the process of finding your optimal auger and screed configuration.

To the configuration tool

All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
