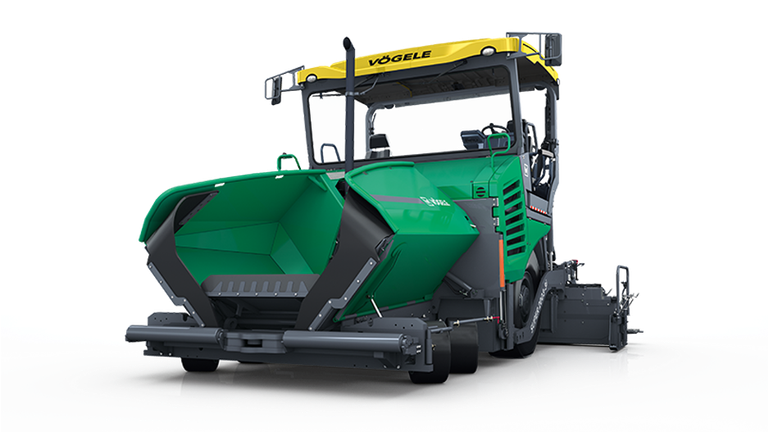

Wheeled paver Highway Class SUPER 2003-3i

SUPER 2003-3i Wheeled paver Highway Class

9 ft 10 in

25 ft 5 in

1,540

US t/hr

The powerful Highway Class wheeled paver – A true SUPER paver

With the SUPER 2003-3i, VÖGELE has now developed an entirely new paver for the North American market. The wheeled paver is designed primarily for use in highway construction and large-scale commercial applications, which are all about power and productivity. With a powerful, 6-cylinder engine and high-output hydraulic drives, the paver is fully equipped for these jobs.

Weniger anzeigen
The highlights of the SUPER 2003-3i
Range of applications
Engine
VÖGELE EcoPlus
Drive concept
Material hopper
Outside turning circle
Operating system
Extending screed
Tolles Produkt

ErgoPlus 3

Even the very best machine with the most advanced technology can only really show its strengths if it can be operated easily and as intuitively as possible. At the same time, it should offer an ergonomic and safe working environment for the operating team. That is why the ErgoPlus 3 operating concept focuses on the operator. With VÖGELE pavers, the user consequently retains full control over the machine and construction project.

More
Tolles Produkt

VÖGELE EcoPlus

The philosophy behind the machine concept of the Premium Line road pavers is "Lower consumption – lower emissions – lower costs". The VÖGELE EcoPlus low-emissions package combines a number of individual measures to reduce the fuel consumption and noise levels to a significant extent.

More
Tolles Produkt

Pivot Steer – the steering brake

With their standard Pivot Steer function, the SUPER wheeled pavers are almost as agile as the crawler-track models. A minimal internal radius enables the machines to turn virtually on the spot. This is a huge advantage, particularly on cramped job sites, such as those found in urban environments.

More
Tolles Produkt

Niveltronic Plus

VÖGELE Niveltronic Plus Automated Grade and Slope Control is a unique grade and slope control system providing the basis for efficient paving true to line and level on any kind of base. Niveltronic is an in-house development by VÖGELE and is based on many years’ experience in grade and slope control technology. In terms of ease of operation, quality and reliability, Niveltronic Plus represents the perfect solution for all grade and slope control tasks.

More

Technical specifications

Engine
Manufacturer
Type
Nominal output
ECO mode output
Exhaust emissions standard
Exhaust emissions after-treatment
Engine
liquid-cooled 6-cylinder diesel engine
Manufacturer
Cummins
Type
QSB 6.7 - C250
Nominal output
250 hp / 2000 RPM
ECO mode output
224 hp / 1700 rpm
Exhaust emissions standard
European exhaust emissions standard 4, US standard EPA Tier 4f
Exhaust emissions after-treatment
DOC, SCR
Front wheels
Tire equipment
Tire size, front wheels
Rear wheels
Tire size, rear wheels
Traction drive
Standard
Option
Option
Steering
Brakes
Service brake
Parking brake
Auxiliary brake
Speeds
Travel speed (up to)
Paving speed (up to)
Front wheels
4, mounted on bogies
Tire equipment
Elastic solid rubber tires
Tire size, front wheels
540/300–390
Rear wheels
2, pneumatic, tubeless
Tire size, rear wheels
445/95R25
Traction drive
Separate hydraulic drives
Standard
2 rear wheels (6x2)
Option
2 rear and 2 front wheels (6x4)
Option
2 rear and 4 front wheels (6x6)
Steering
hydraulic
Service brake
generously-dimensioned multiple-disk brakes operated by foot pedal, maintenance-free
Parking brake
spring-loaded multiple-disk brake, maintenance-free
Auxiliary brake
hydrostatic brake
Travel speed (up to)
12.5 mph
Paving speed (up to)
250 fpm
Push-rollers
Standard
Positions
Standard
oscillating
Positions
can be adjusted in a forward direction by 3 or 6 in
Conveyors
Conveyors
Version
Drive
Augers
Augers
Version
Drive
Height
Standard height
Lubrication
Conveyors
2
Version
with replaceable feeder bars, direction of conveyor temporarily reversible
Drive
separate hydraulic drives, proportional control
Augers
2
Version
with replaceable auger blades, reversible direction of rotation
Drive
separate hydraulic drives, proportional control
Height
infinitely variable
Standard height
hydraulically adjustable by 6 in
Lubrication
centralized lubrication system, electrically-driven grease pump
Screed heating
Power supply
Screed
Screed heating
electric, thermostat-controlled
Power supply
three-phase AC generator
Screed
Type Basic width Maximum width Compacting systems
VF 600 10 ft 25 ft 5 in V
VR 600 10 ft 23 ft 11 in V
AB 600 9 ft 10 in 24 ft 7 in TV
Operating weight
Length
Maximum laydown rate
Operating weight
Screed Total weight
VR 600 49,160 lbs
VF 600 48,280 lbs
AB 600 TV 49,420 lbs
Length
Screed Total length
VR 600 22 ft 6 in
VF 600 21 ft 6 in
AB 600 TV 21 ft 9 in
Maximum laydown rate
1,540 US t/hr
Please feel free to contact us!

All details, illustrations and texts are non-binding and may include optional additional fittings. Subject to technical modifications. Performance data dependant upon operational conditions.
