NEW
MINI 502e Wheeled paver Mini Class
1.07
m
1.8
m
20
t/h
MINI 502e E-Power drive for zero operating emissions

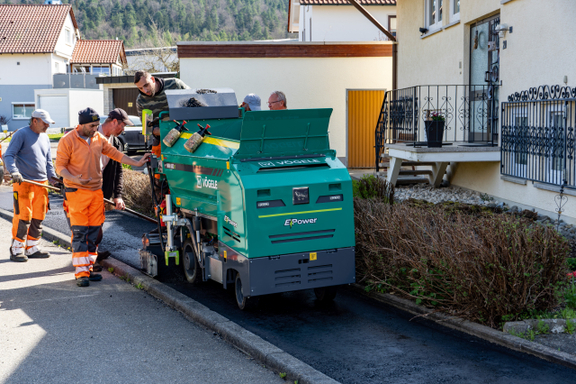

The MINI 502e wheeled battery-electric paver from VÖGELE enables users to realise paving projects with zero operating emissions. With its compact dimensions and variable paving width, the MINI-paver is ideal for projects requiring the paving of small areas. These include, for instance, the construction of cycleways and pedestrian walkways, paving between railway and tramlines and repair work on small inner-city project sites.
Show less
Technical specifications
- Battery
- Battery capacity
- Battery type
- Nominal voltage
-
- Battery capacity
- Standard 15 kWh, Option 21,5 kWh
- Battery type
- LFP lithium-ion
- Nominal voltage
- 48 V
- Traction drive
- Version
- Rear wheels
- Version
- Front wheels
- Version
- Tyre equipment
- Speeds
- Pave speed (up to)
- Travel speed (up to)
-
- Version
- electric
- Version
- 2, track pads, drive sprockets
- Version
- 2, mounted on bogies
- Tyre equipment
- Track pads
- Pave speed (up to)
- 40 m/min
- Travel speed (up to)
- 2.4 km/h
- Hopper capacity
- Width
- Feed height (bottom of material hopper)
-
- Hopper capacity
- 1.5 t
- Width
- 1,200 mm
- Feed height (bottom of material hopper)
- 1,400 mm
- Conveyors
- Number
- Version
- Drive
- Speed (up to)
- Augers
- Number
- Version
- Diameter
- Drive
- Rpm (up to)
- Height
-
- Number
- 1
- Version
- with wear-resistant steel conveyor belt and reversible running direction
- Drive
- electrically driven
- Speed (up to)
- 17 m/min
- Number
- 2
- Version
- reversible auger rotation
- Diameter
- 140 mm
- Drive
- separate, independent electric drives
- Rpm (up to)
- 94 U/min
- Height
- 10 cm from the ground to the bottom edge of the augers
Related products
MINI 500
| Basic width | 0.9 m |
| Pave width, max. | 1.8 m |
| Maximum laydown rate | 20 t/h |
MINI 502
| Basic width | 0.92 m |
| Pave width, max. | 1.8 m |
| Maximum laydown rate | 20 t/h |
NEW
MINI 500e
| Basic width | 0.91 m |
| Pave width, max. | 1.8 m |
| Maximum laydown rate | 20 t/h |
SUPER 800-5 P
| Basic width | 1.4 m |
| Pave width, max. | 3.5 m |
| Maximum laydown rate | 300 t/h |
All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
