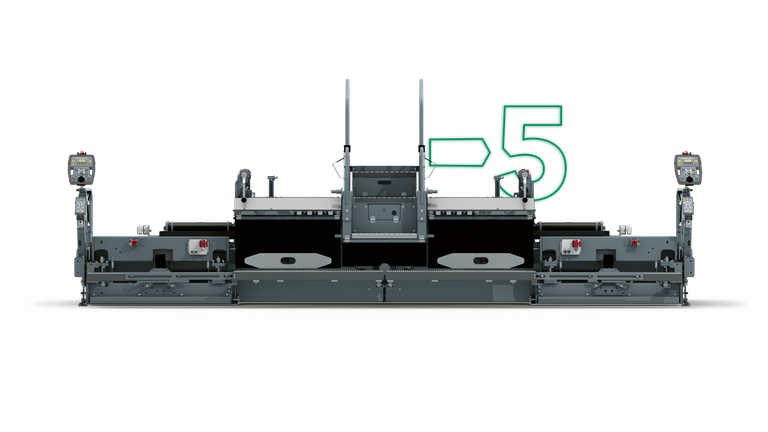

VR 600 Extending Screed
V
10 ft - 25 ft 11 in
10 ft
Extendable Screed for the Dash 5 Generation
Robust yet flexible: Thanks to the newly designed guide system, the VR 600 with rear-mounted extensions features precise screed width control together with the ErgoPlus 5 operating concept. Its optimized design offers good visibility of all relevant paving areas. Developed for the 10-foot highway-class pavers, it is particularly suitable for medium to large paving jobs and high paving speeds in North America.
Show less
Technical specifications
- Basic width
- Hydraulically adjustable
- Minimum paving width
- Maximum paving width
- Length
-
- Basic width
- 10 ft
- Hydraulically adjustable
- 10 ft to 19 ft 8 in
- Minimum paving width
- 10 ft
- Maximum paving width
- 25 ft 11 in
- Length
-
Extra bolt-on extensions 2 ft 6 in 10 in
- Crown adjustment
- Height adjustment, extending units
- Slope, extending units (max.)
-
- Crown adjustment
- -2.5 % to 5 %
- Height adjustment, extending units
- -0.2 in to 1.4 in
- Slope, extending units (max.)
- 10 %
- Compacting systems
- Vibrators (V)
- Version
-
- Compacting systems
- V
- Version
- eccentric vibrators
- Output generation
- Control
-
- Output generation
- three-phase AC generator
- Control
- electric, by heating rods
- Width (without end gate)
- Weight of basic screed
- Depth (in transport position)
-
- Width (without end gate)
- 10 ft
- Weight of basic screed
-
Screed Weight V 8,380 lbs
- Depth (in transport position)
-
Screed Depth VR 600 5 ft
