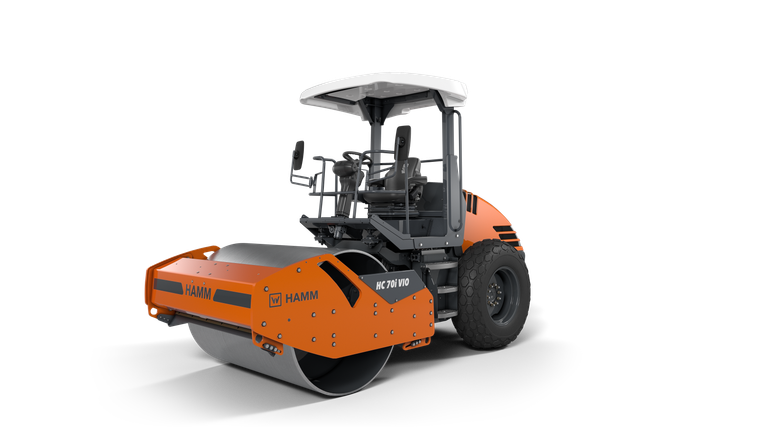

Compactor with VIO drum HC 70i VIO

HC 70i VIO Compactor with VIO drum

66.1 in

14,917 lbs

EU Stage V / EPA Tier 4

  • Simple, intuitive and language-neutral control
  • 3-point articulation for excellent traction and cross-country mobility
  • VIO compaction system—vibration or oscillation
  • Compact dimensions
  • High climbing ability
Show less

Three-point articulation

Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.

Learn more

Smart Compaction

In the Smart Compaction product range, HAMM offers various solutions for intelligent and simple compaction, compaction measurement, and documentation. The focus here is on digital interfaces between the driver and the machine as well as various assistants. The innovations offered here (such as Smart Doc) contribute significantly to meeting the increasing demands for high compaction quality in modern earthworks and road construction, and directly integrating the megatrends of digitalization and resource conservation into daily construction site activity.

Learn more

Oscillation

In an oscillation drum, two eccentric shafts are fitted at a 180° angle to each other. Both unbalanced masses rotate synchronously, which causes the drum to perform a rapidly alternating forward-backward rotational movement. This results in the compaction energy being transmitted forward and backward tangentially into the ground below in the form of shear forces. The oscillation system developed by HAMM achieves compaction results that are scientifically proven to be more homogeneous and higher-quality, leading to faster, more significant compaction increases. The scope of application is enormous.

Learn more

Technical specifications

Series
Name
Description
Exhaust emissions category
Series
Series
HC CompactLine
Name
HC 70i VIO
Description
Compactor with VIO drum
Exhaust emissions category
EU Stage V / EPA Tier 4
Series
H287
Static linear load, front
Operating weight with ROPS
Empty weight without cab, without ROPS
Operating weight with cab
Axle load, rear
Axle load, front
Static linear load, front
131.6 lbs/in
Operating weight with ROPS
14,399 lbs
Empty weight without cab, without ROPS
13,704 lbs
Operating weight with cab
14,917 lbs
Axle load, rear
6,218 lbs
Axle load, front
8,699 lbs
Total length
Total width with cab
Maximum working width
Total height with cab
Center distance
Ground clearance, center
Turning radius, inside
Total height with ROPS
Slope angle, rear
Slope angle, front
Total length
174.8 in
Total width with cab
79.4 in
Maximum working width
66.1 in
Total height with cab
113.5 in
Center distance
92 in
Ground clearance, center
12.7 in
Turning radius, inside
130.3 in
Total height with ROPS
113.3 in
Slope angle, rear
40 °
Slope angle, front
38 °
Drum type, front
Drum diameter, front
Drum width, front
Drum thickness, front
Drum type, front
Smooth
Drum diameter, front
47.5 in
Drum width, front
66.1 in
Drum thickness, front
0.8 in
Number of tires, rear
Tire size, rear
Width over tires, rear
Number of tires, rear
2
Tire size, rear
AW 14.9-24 6 PR
Width over tires, rear
65.6 in
Manufacturer
Model
Cylinders, quantity
Exhaust emission standard
Exhaust gas after-treatment
Power ISO 14396, rpm
Power ISO 14396, HP
Power ISO 14396, kW
Power SAE J1995, rpm
Power SAE J1995, HP
Power SAE J1995, kW
Manufacturer
KUBOTA
Model
V3307-CR-TE5AB
Cylinders, quantity
4
Exhaust emission standard
EU Stage V / EPA Tier 4
Exhaust gas after-treatment
DOC-DPF
Power ISO 14396, rpm
2,200 rpm
Power ISO 14396, HP
74.3 HP
Power ISO 14396, kW
54.6 kW
Power SAE J1995, rpm
2,200 rpm
Power SAE J1995, HP
74.2 hp
Power SAE J1995, kW
55.4 kW
Speed, transport gear
Climbing ability, without vibration
Speed, working gear, I
Speed, transport gear
0,0-5,3
Climbing ability, without vibration
60 %
Speed, working gear, I
0,0-3,7
Oscillation force
Oscillation frequency
Tangential amplitude, oscillation
Oscillation force
19,156 lbs
Oscillation frequency
2,160 VPM
Tangential amplitude, oscillation
0.04 in
Vibration frequency
Amplitude, vibration
Centrifugal force, vibration
Vibration frequency
2,160 VPM
Amplitude, vibration
0.039 in
Centrifugal force, vibration
19,156 lbs
Steering, type
Steering, type
Articulated steering
Fuel tank, capacity
Fuel tank, capacity
32.5 gal
Sound power level L(WA), guaranteed
Sound power level L(WA), guaranteed
105

Equipment

  • 12 V sockets (2-fold)
  • Driver's seat in black imitation leather
  • Plastic scraper, for smooth drum
  • Maintenance points, central on one machine side
  • Vibration-isolated driver's platform
  • Hose protection on the front vehicle
  • Large slope angles at front and rear
  • Cup holder
  • Spring-mounted driver's seat with armrest and seat belt
  • ECO mode
  • Fixture for cool box
  • Dashboard with displays, indicator lights and switches
  • Anti-slip control
  • Storage compartments
  • Storage compartment below the driver’s seat
  • Storage compartment behind the driver’s seat
  • 3-point articulation
  • Two large exterior rear-view mirrors

Optional equipment

  • ROPS cab with heating and air-conditioning system (FOPS, level I)
  • Tool kit
  • Battery isolation switch
  • Working spotlights
  • Automatic vibration system
  • Back-up alarm
  • Camera system
  • Automatic engine stop
  • Speedometer
  • Dozer blade
  • Bluetooth interface for Smart Doc
  • Tachograph
  • Seat belt monitoring device
  • Driver's seat with high backrest, anthracite fabric, comfort equipment
