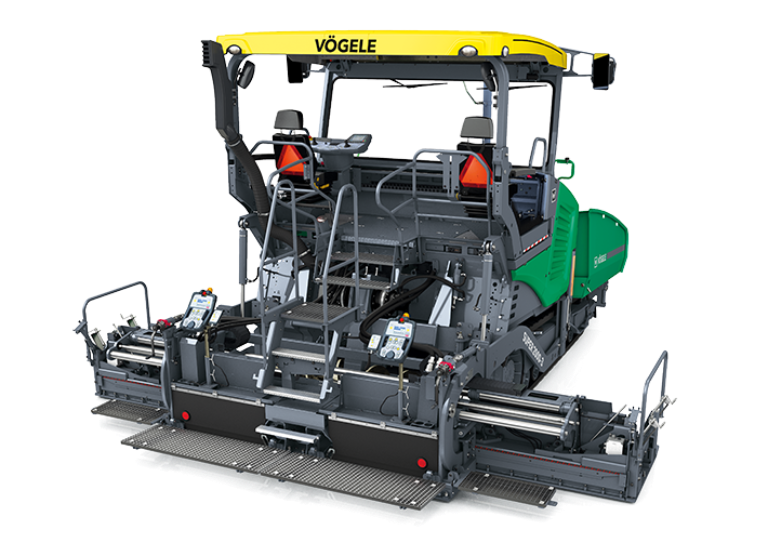

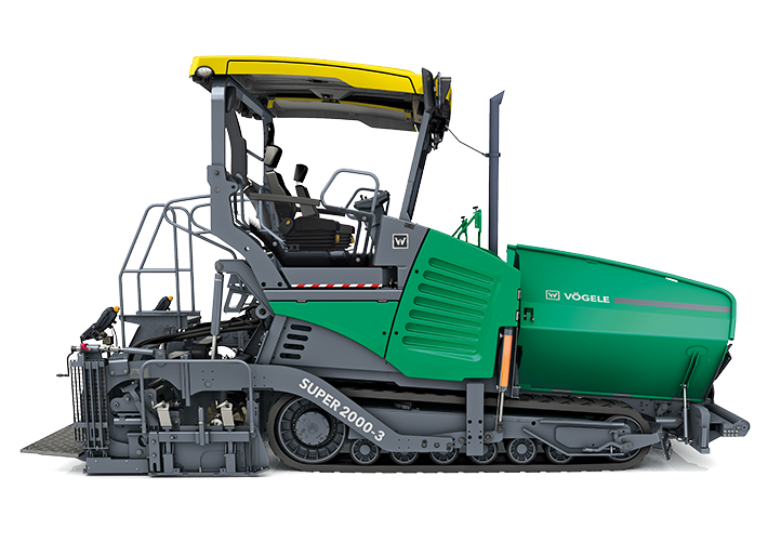

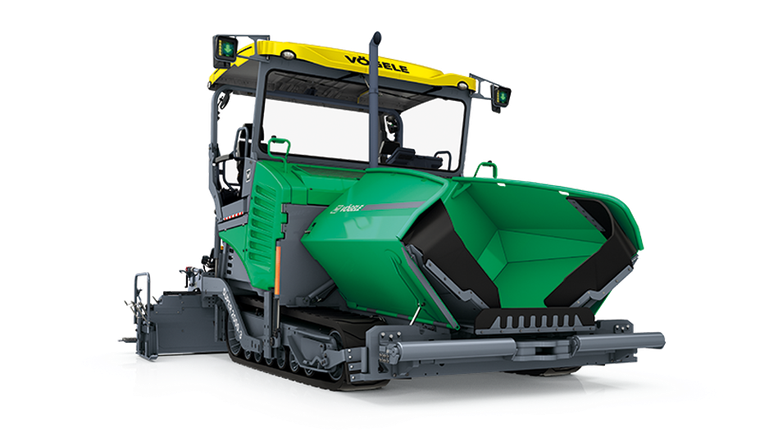

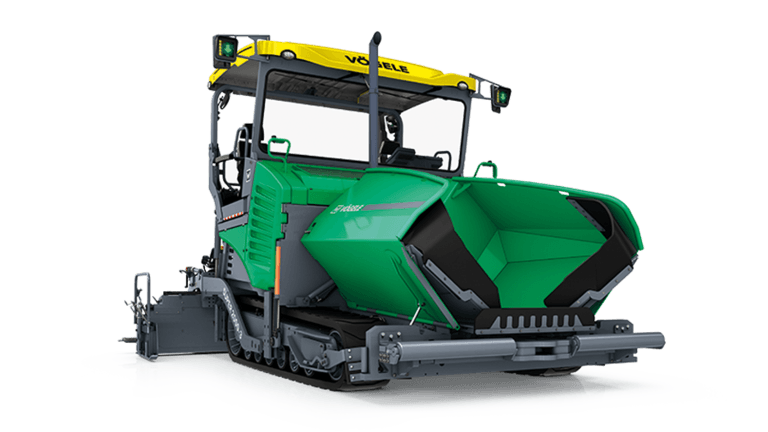

SUPER 2000-3 Tracked paver Highway Class
m
m
t/h

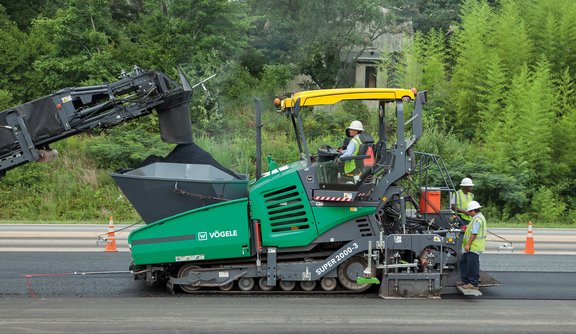

The versatile Highway Class tracked paver – a true SUPER paver
With the SUPER 2000-3 VÖGELE has now developed an entirely new paver for the North American and Australian market. The tracked paver is designed primarily for use in highway construction and large-scale commercial applications, which are all about power and productivity. With a powerful 6-cylinder engine and high-output hydraulic drives, the paver is fully equipped for these jobs.
Show less

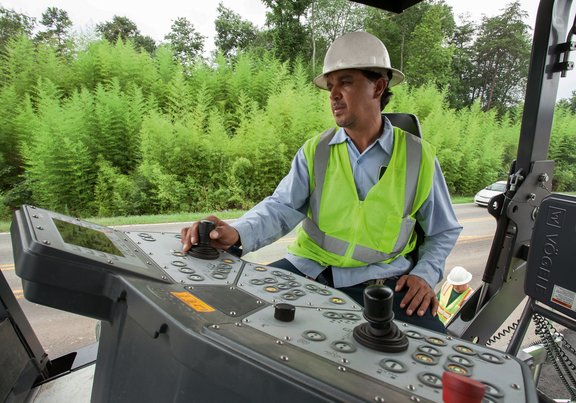

ErgoPlus 3
Even the very best machine with the most advanced technology can only really show its strengths if it can be operated easily and as intuitively as possible. At the same time, it should offer an ergonomic and safe working environment for the operating team. Therefore, the ErgoPlus 3 operating concept focuses on the operator.
VÖGELE EcoPlus
The machine concept behind the Dash 3 road pavers is summed up by the motto “Lower consumption – lower emissions – lower costs”. The VÖGELE EcoPlus low-emissions package combines a number of individual measures which can help to reduce fuel consumption and noise emissions.
AutoSet Plus
With AutoSet Plus, we have enhanced the efficiency, the convenience and thus the quality of key job site processes. AutoSet Plus has two handy automatic functions.
The two functions of AutoSet Plus automate routine tasks, allowing work processes to be carried out more quickly and with greater control. This in turn means that construction projects can be completed faster and more reliably.
PaveDock and PaveDock Assistant

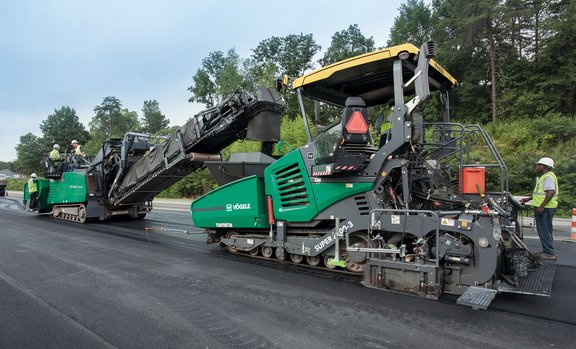

A constant supply of mix is essential for producing a level, high-quality pavement. That's why VÖGELE developed the PaveDock Assistant for their “Dash 3” generation of pavers. This exceedingly efficient system greatly facilitates communication between the paver operator and the driver of the feed vehicle, and it ensures that the mix is supplied to the paver safely and without jolts. Used in combination with the PaveDock push-rollers, PaveDock Assistant contributes greatly to process safety during the transfer of the mix.

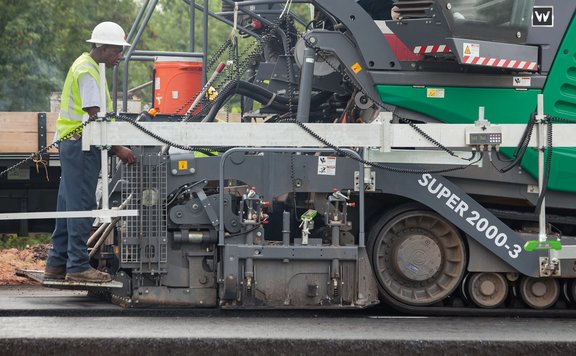

Niveltronic Plus
The automatic levelling system Niveltronic Plus is an in-house development of JOSEPH VÖGELE AG and based on many years of experience in grade and slope control technology. Easy operation, precision and reliability are its hallmarks for perfect mastery of all grade and slope control jobs.
Technical specifications
- Engine
- Version
- Manufacturer
- Type
- Exhaust emissions standard
- Nominal output
- ECO mode output
- Fuel tank
-
- Version
- liquid-cooled 6-cylinder diesel engine
- Manufacturer
- Cummins
- Type
- QSB 6.7 - C240
- Exhaust emissions standard
- European exhaust emissions standard 3a, US standard EPA Tier 3
- Nominal output
- 179 kW / 2,000 U/min
- ECO mode output
- 168 kW / 1,700 U/min
- Fuel tank
- 380 l

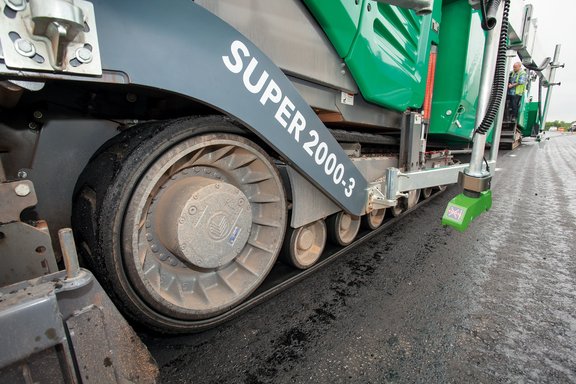

- Undercarriage
- Version
- Ground contact
- Traction drive crawler tracks
- Track tension adjuster
- Speeds
- Pave speed (up to)
- Travel speed (up to)
- Lubrication of track rollers
-
- Version
- provided with rubber pads
- Ground contact
- 2,994 mm x 457 mm
- Traction drive crawler tracks
- separate hydraulic drives with electronic control
- Track tension adjuster
- hydraulic
- Pave speed (up to)
- 76 m/min
- Travel speed (up to)
- 12 km/h
- Lubrication of track rollers
- lifetime
- Hopper capacity
- Width
- Feed height (bottom of material hopper)
- Push-rollers
- Standard
- Positions
-
- Hopper capacity
- 15 t
- Width
- 3,420 mm
- Feed height (bottom of material hopper)
- 595 mm
- Standard
- oscillating
- Positions
- can be adjusted in a forward direction by 75 mm or 150 mm
- Conveyors
- Number
- Version
- Drive
- Speed (up to)
- Augers
- Number
- Version
- Diameter
- Drive
- Rpm (up to)
- Height
- Standard height
- Lubrication
-
- Number
- 2
- Version
- with replaceable feeder bars, direction of conveyor temporarily reversible
- Drive
- separate hydraulic drives, proportional control
- Speed (up to)
- 60 m/min
- Number
- 2
- Version
- with replaceable auger blades, auger rotation reversible
- Diameter
- 400 mm
- Drive
- separate hydraulic drives, proportional control
- Rpm (up to)
- 130 U/min
- Height
- infinitely variable
- Standard height
- hydraulically adjustable by 15 cm
- Lubrication
- centralized lubrication system, electrically-driven grease pump
