Vögele presents the spray-ready version of the 5th generation the X

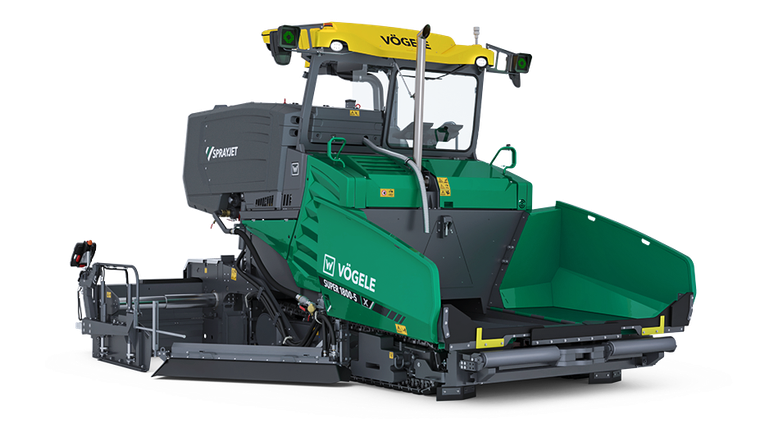

New SUPER 1800-5 X SprayJet
NEW
SUPER 1800-5 X SprayJet
8 ft 4 in
27 ft 1 in
770
US t/hr
The innovative Dash 5 SprayJet Paver
As a Dash 5 generation machine, the SUPER 1800-5 X SprayJet paver unites maximum performance and the most advanced spray technology. The VÖGELE SprayJet paver can be used not only for paving ultra-thin bonded overlays (UTBO) hot over a polymer-modified bitumen emulsion seal, but also for paving conventional surface and binder courses. Thanks to the ErgoPlus 5 operating concept, the spray module is easy to use and enables users to keep a constant eye on all relevant settings.
Show less
ErgoPlus – The operating concept
An innovative machine with the latest technology also includes an advanced operating concept. This must be easy and intuitive to use - and simultaneously ergonomic. The ErgoPlus 5 operating concept makes the operator the focus.
Comfort Package with Paver Access Control (PAC)
The Comfort Package makes operating Dash 5 pavers more user-friendly, safe and ergonomic than ever before. The Comfort Package includes the PAC comfort access feature, Ergonomic Plus operator seats, luggage nets, sound insulation in the canopy, and bottle holders.
Light Package and Light Package Plus
In the Light Package and Light Package Plus, VÖGELE offers two options for optimum illumination of the workplace for the Dash 5 machine generation.
Auto Grade Plus
Auto Grade Plus has been developed by JOSEPH VÖGELE AG based on extensive experience in leveling technology. Easy operation, precision and reliability are its hallmarks for perfect mastery of all grade and slope control jobs.
Technical specifications
- Engine
- Version
- Manufacturer
- Type
- Exhaust emissions standard
- Exhaust emissions after-treatment
- Nominal output
- Fuel tank
- Emission data
- Guaranteed sound power level LWA
- Sound pressure level LPA at the operator stations (≤)
- Output ECO mode 1
- Output ECO mode 2
-
- Version
- liquid-cooled 4-cylinder diesel engine
- Manufacturer
- Cummins
- Type
- B4.5 – C173
- Exhaust emissions standard
- Equivalent EU Stage 5, US EPA Tier 4f
- Exhaust emissions after-treatment
- DOC, DPF, SCR
- Nominal output
- 173 hp / 2,000 rpm
- Fuel tank
- 79 Imp.gal
- Guaranteed sound power level LWA
- 108 db(A)
- Sound pressure level LPA at the operator stations (≤)
- 80 db(A)
- Output ECO mode 1
- 170 hp / 1,700 rpm
- Output ECO mode 2
- 164 hp / 1,500 rpm
- Undercarriage
- Version
- Traction drive crawler tracks
- Lubrication of track rollers
- Track tension adjuster
- Ground contact
- Speeds
- Paving speed (up to)
- Travel speed (up to)
-
- Version
- provided with rubber pads
- Traction drive crawler tracks
- electronically controlled separate hydraulic drive provided for each crawler track
- Lubrication of track rollers
- lifetime
- Track tension adjuster
- spring assembly
- Ground contact
- 9 ft 3 in x 12 in
- Paving speed (up to)
- 82 fpm
- Travel speed (up to)
- 2.8 mph
- Hopper capacity
- Width
- Feed height (bottom of material hopper) [imperial]
- Push-rollers
- Standard
- Positions
- Option
-
- Hopper capacity
- 14.33 tons
- Width
- 10 ft 8 in
- Feed height (bottom of material hopper) [imperial]
- 23 in
- Standard
- oscillating
- Positions
- Longitudinally adjustable by 4 in (100mm)
- Option
- sprung (PaveDock)
- Conveyors
- Number
- Drive
- Augers
- Number
- Version
- Lubrication
-
- Number
- 2
- Drive
- Separate hydraulic drive for each conveyor and auger
- Number
- 2
- Version
- with replaceable auger blades, reversible direction of rotation
- Lubrication
- centralized lubrication system, electrically-driven grease pump
- Spray nozzles
- Number of spray nozzles
- Spray pressure (up to)
- Rate of spread
- Spray cone
- Emulsion tank
- Capacity
- Standard
- Optionally with extra tank
- Spray bars
- Spray width
- Number of spray bars
- Heating
-
- Number of spray nozzles
- 24
- Spray pressure (up to)
- 43.6 psi
- Rate of spread
- 0.06 lbs/sq.ft to 0.33 lbs/sq.ft
- Spray cone
- 120 °
- Emulsion tank
- insulated hopper walls
- Standard
- 555 Imp.gal
- Optionally with extra tank
- 1,876 Imp.gal
- Spray width
- 8 ft 4 in to27 ft
- Number of spray bars
- 5
- Heating
- electric, thermostat-controlled
- Layer thickness (up to)
- Screed
- Screed heating
- Power supply
-
- Layer thickness (up to)
- 12 in
- Screed
-
Type Basic width Maximum width Compacting systems AB 500 8 ft 4 in 28 ft 8 in TV, TP1 AB 600 9 ft 10 in 30 ft 4 in TV, TP1 VR 600 10 ft 25 ft 11 in V
- Screed heating
- electric by heating rods
- Power supply
- three-phase AC generator
All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
