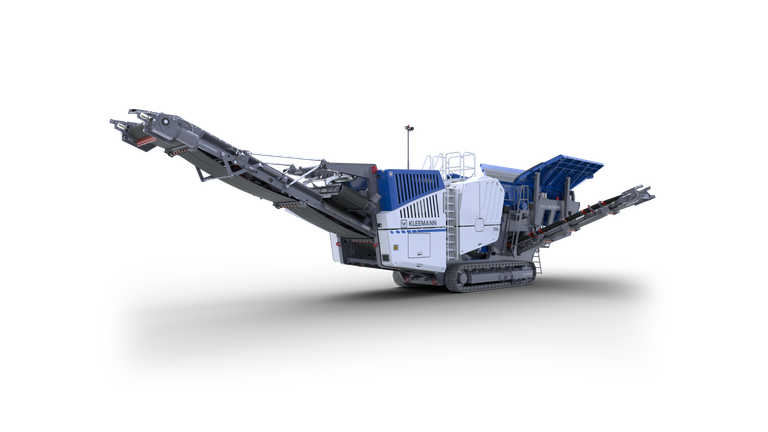

MC 120 PRO Mobile jaw crusher
US t/hr
Properties
The MOBICAT MC 120 PRO, the first jaw crusher in the PRO range, is used for precrushing almost all types of natural stone. The jaw crusher is extremely robust and impresses with its low-maintenance operation. The machine therefore guarantees high production outputs.
Show lessThe jaw crusher MOBICAT MC 120 PRO is extremely robust and impresses with its low-maintenance operation. The machine also guarantees high production outputs.
Intuitive control concept SPECTIVE - for simple operation
The easy-to-operate control concept SPECTIVE allows the machines to be operated at a touch panel. All components and functions can be controlled comfortably from the ground.
SPECTIVE guides the operator step by step through the starting procedure. The start screen provides a graphical view of the plant with all adjustable functions at a glance. When the desired function is selected, clear instructions guide users through all operating steps. If a fault occurs, a fault diagnosis appears on the display. Fault localization, the description and remedy tips result in reduced downtimes. The 12" touch panel is resistant to dust and always easy to read thanks to the light intensity and high contrast. It reacts to fingers, pen or gloves.
Jaw crusher
Jaw crushers operate according to the principle of pressure crushing. The crushed material is crushed in the wedge-shaped pit between the fixed crusher jaw and the crusher jaw articulated on an eccentric shaft. The material is crushed by the elliptic course of movement and falls down due to gravity. This occurs until the material is smaller than the set crushing gap.
_PRO_Highlights_LO_Video_ENGB.jpg)
_PRO_Naturstein_Polen_1.jpg)
Related products
| Drive concept | D-DRIVE (Diesel-direct) |
| Max. feed size | 34 in x 21 in x 13 in |
| Feed capacity up to approx. | 243 US t/hr |
_EVO2_Freisteller.png)
| Drive concept | D-DRIVE (Diesel-direct) |
| Max. feed size | 39 in x 25 in x 15 in |
| Feed capacity up to approx. | 441 US t/hr |
Technical specifications
- Max. feed size
- Feed height
- Feed height with extension
- Feed capacity up to approx.
- Hopper width
- Hopper width with extension
- Hopper length
- Hopper length with extension
- Hopper volume
- Hopper volume with extension
-
- Max. feed size
- 43 in x 27 in x 16 in
- Feed height
- 16 ft 2 in
- Feed height with extension
- 17 ft 4 in
- Feed capacity up to approx.
- 717 US t/hr
- Hopper width
- 9 ft 4 in
- Hopper width with extension
- 12 ft 10 in
- Hopper length
- 13 ft 5 in
- Hopper length with extension
- 12 ft 10 in
- Hopper volume
- 12.7 yd³
- Hopper volume with extension
- 17 yd³
- Width x length
-
- Width x length
- 44 in x 11 ft 10 in
- Width x length
- Type
-
- Width x length
- 3 ft 12 in x 9 ft 6 in
- Type
- Double-deck heavy-piece screen
- Discharge height
- Width
- Length
-
- Discharge height
- 11 ft 4 in
- Width
- 26 in
- Length
- 21 ft 10 in
- Crusher drive type
- Crusher inlet width
- Crusher inlet depth
- Crusher weight (approx.)
- Crusher capacity
- Single toggle jaw crusher type
- Crusher gap adjustment
- Gap width max.
- Gap width min.
-
- Crusher drive type
- electric
- Crusher inlet width
- 48 in
- Crusher inlet depth
- 32 in
- Crusher weight (approx.)
- 64,350 lbs
- Crusher capacity
- 268 hp
- Single toggle jaw crusher type
- STR120
- Crusher gap adjustment
- Fully hydraulic
- Gap width max.
- 8 in
- Gap width min.
- 3 in
- Crushing capacity with CSS = 3.9" up to approx.
- Crushing capacity with CSS = 5.1" up to approx.
- Crushing capacity with CSS = 6.1" up to approx.
-
- Crushing capacity with CSS = 3.9" up to approx.
- 276 US t/hr
- Crushing capacity with CSS = 5.1" up to approx.
- 358 US t/hr
- Crushing capacity with CSS = 6.1" up to approx.
- 441 US t/hr
- Discharge height approx.
- Discharge height, extended, approx.
- Width
- Crusher discharge conveyor length
- Length, extended
-
- Discharge height approx.
- 13 ft 1 in
- Discharge height, extended, approx.
- 14 ft 11 in
- Width
- 48 in
- Crusher discharge conveyor length
- 40 ft 4 in
- Length, extended
- 45 ft 7 in
- Width x length
-
- Width x length
- 51 in x 6 ft 7 in
- Drive concept
- Generator
- Power pack manufacturer
- Power supply unit output
- Rated speed
-
- Drive concept
- E-DRIVE (Diesel-electric)
- Generator
- 500 kVA
- Power pack manufacturer
- Scania
- Power supply unit output
- 493 hp
- Rated speed
- 1,800 rpm
- Transport height approx. (standard value)
- Transport length approx.
- Transport width approx.
- Transport weight of basic plant
- Transport weight max. configuration approx.
-
- Transport height approx. (standard value)
- 13 ft 5 in
- Transport length approx.
- 63 ft 6 in
- Transport width approx.
- 9 ft 10 in
- Transport weight of basic plant
- 159,900 lbs
- Transport weight max. configuration approx.
- 189,500 lbs
All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
