SUPER 2003-5 X
US t/hr
The maneuverable 10-foot Dash 5 Road Paver
The SUPER 2003-5 X from VÖGELE combines an economical drive, effective material management, and useful Dash 5 features with the transportability and maneuverability of a wheeled paver. As a paver of the Dash 5 generation, the machine impresses with its user-friendliness, automation, and cost-effective operation, and is designed for large paving projects and highways in North America.
Show less

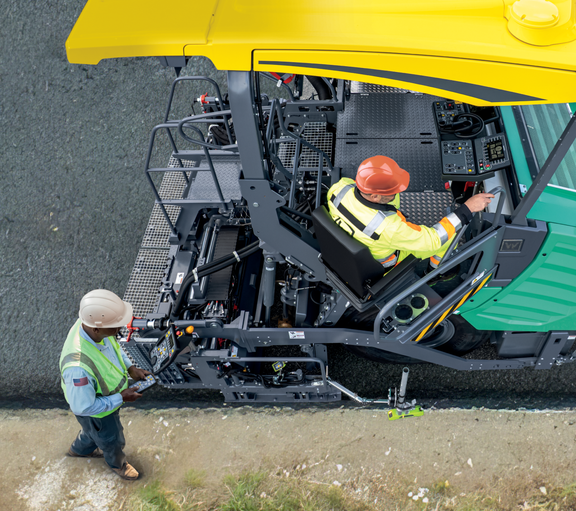

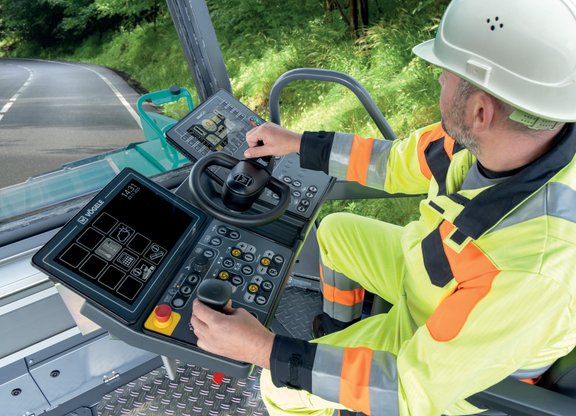

ErgoPlus 5
An innovative and ergonomic operating concept is an indispensable part of an innovative machine using the latest technology. This is why the user is at the heart of the ErgoPlus 5 operating concept for wheeled pavers at VÖGELE.
VÖGELE EcoPlus
The fact that our road pavers comply with the applicable emissions directives is by no means enough for us. The machine concept of the “Dash 5” generation is based on environmentally friendly machine technology. An important building block for this is VÖGELE EcoPlus which reduces consumption and emissions.

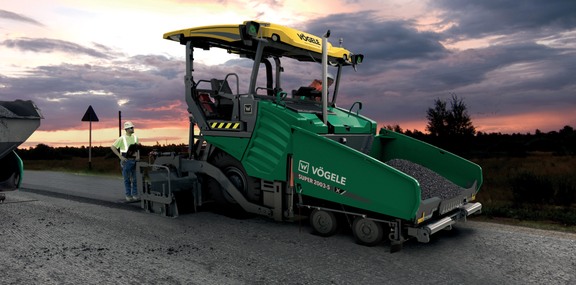

Light Package and Light Package Plus
In the Light Package and Light Package Plus, VÖGELE offers two options for optimum illumination of the workplace for the Dash 5 machine generation.
From the System for Automated Grade and Slope Control, to the Automated Control System and on to Digital Jobsite Documentation: VÖGELE delivers innovative solutions to make life easier for users and to make paving with Dash 5 pavers even more efficient.
VÖGELE SolutionsTechnical specifications
- Engine
- Version
- Manufacturer
- Type
- Exhaust emissions standard
- Exhaust emissions after-treatment
- Nominal output
- Fuel tank
- Output ECO mode 1
- Output ECO mode 2
-
- Version
- liquid-cooled 6-cylinder diesel engine
- Manufacturer
- Cummins
- Type
- QSB 6.7 - C250
- Exhaust emissions standard
- European exhaust emissions standard 4, US standard EPA Tier 4f
- Exhaust emissions after-treatment
- DOC, SCR
- Nominal output
- 250 hp / 2,000 rpm
- Fuel tank
- 100 Imp.gal
- Output ECO mode 1
- 235 hp / 1,700 rpm
- Output ECO mode 2
- 208 hp / 1,500 rpm
- Traction drive
- Version
- Option
- Standard
- Rear wheels
- Version
- Tire size, rear wheels
- Speeds
- Paving speed (up to)
- Travel speed (up to)
- Front wheels
- Tire equipment
- Tire size, front wheels
-
- Version
- Separate hydraulic drives
- Option
- 2 rear wheels and 4 front wheels (all-wheel drive 6x6)
- Standard
- 2 rear and 2 front wheels (6x4)
- Version
- 2, pneumatic, tubeless
- Tire size, rear wheels
- 445/95R25
- Paving speed (up to)
- 250 fpm
- Travel speed (up to)
- 12 mph
- Tire equipment
- Elastic solid rubber tires
- Tire size, front wheels
- 540/300–390

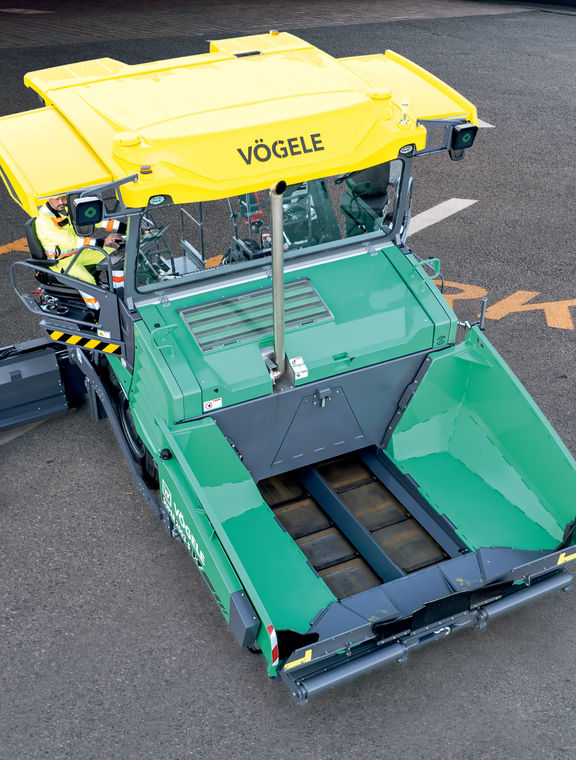

- Hopper capacity
- Width
- Push-rollers
- Standard
- Positions
- Option
-
- Hopper capacity
- 15.5 tons
- Width
- 11 ft 1 in
- Standard
- oscillating
- Positions
- can be adjusted in a forward direction by 4 in
- Option
- Option 1: Hinged push rollers, option 2: Truck trailer hitch
- Conveyors
- Number
- Drive
- Running speed (up to)
- Augers
- Number
- Drive
- Speed (up to)
- Standard height
- Lubrication
-
- Number
- 2
- Drive
- separate hydraulic drives
- Running speed (up to)
- 197 fpm
- Number
- 2
- Drive
- Independent hydraulic drives for each conveyor and each auger
- Speed (up to)
- 130 rpm
- Standard height
- hydraulically adjustable by 6 in
- Lubrication
- centralized lubrication system, electrically-driven grease pump
- Layer thickness (up to)
- Screed
- Screed heating
- Power supply
-
- Layer thickness (up to)
- 12 in
- Screed
-
Type Basic width Maximum width Compacting systems VF 600 10 ft 25 ft 5 in V VR 600 10 ft 24 ft V AB 600 9 ft 10 in 24 ft 7 in TV
- Screed heating
- electric by heating rods
- Power supply
- three-phase AC generator
All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
