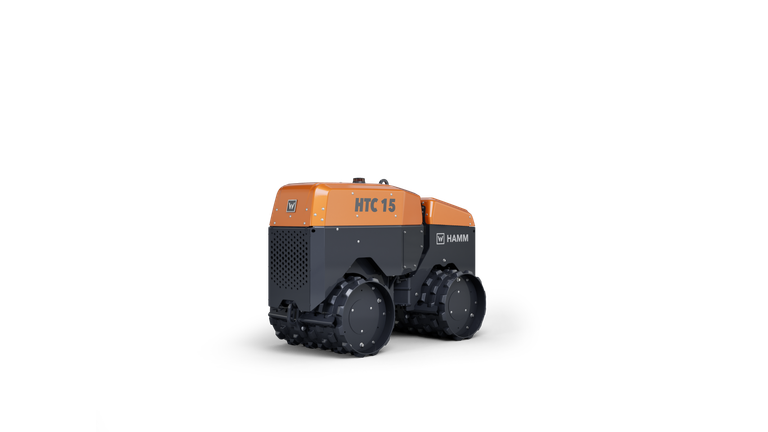

Trench roller with two vibration padfoot drums HTC 15

NEW

HTC 15 Trench roller with two vibration padfoot drums

32.3 in

EPA Tier 4

Tip-Over Engine Protection to protect engine
High versatility - drum width extensions as standard
Easy to transport and maintain
IR remote control with 3 sensors to ensure line of sight
Low centre of gravity to lower risk of overturning

Technical specifications

Series

Name

Description

Exhaust emissions category

Series

Series: HTC

Name: HTC 15

Description: Trench roller with two vibration padfoot drums

Exhaust emissions category: EPA Tier 4

Series: H951

Static linear load, front

Axle load, rear

Axle load, front

Max. operating weight

Static linear load, front: 52.6 lbs/in

Axle load, rear: 1,561 lbs

Axle load, front: 1,649 lbs

Max. operating weight: 3,210 lbs

Total width

Total length

Maximum working width

Center distance

Total width: 32.3 in

Total length: 75.2 in

Maximum working width: 32.3 in

Center distance: 42.5 in

Drum type, front

Drum type, rear

Drum thickness, front

Drum diameter, rear

Drum diameter, front

Drum width, rear

Drum width, front

Drum type, front: Padfoot

Drum type, rear: Padfoot

Drum thickness, front: 0.3 in

Drum diameter, rear: 22.4 in

Drum diameter, front: 22.4 in

Drum width, rear: 32.3 in

Drum width, front: 32.3 in

Manufacturer

Model

Cylinders, quantity

Exhaust emission standard

Power ISO 14396, rpm

Power ISO 14396, HP

Power ISO 14396, kW

Power SAE J1349, rpm

Power SAE J1349, HP

Power SAE J1349, kW

Manufacturer: KOHLER

Model: KDW 1003

Cylinders, quantity: 3

Exhaust emission standard: EPA Tier 4

Power ISO 14396, rpm: 3,000 rpm

Power ISO 14396, HP: 20.07 HP

Power ISO 14396, kW: 14.8 kW

Power SAE J1349, rpm: 3,000 rpm

Power SAE J1349, HP: 19.8 hp

Power SAE J1349, kW: 14.8 kW

Climbing ability, without vibration

Climbing ability, without vibration: 50 %

Vibration frequency, front

Amplitude, front

Centrifugal force, front

Vibration frequency, rear

Amplitude, rear

Centrifugal force, rear

Vibration frequency, front: 2,520 VPM

Amplitude, front: 0.091 in

Centrifugal force, front: 16,200 lbs

Vibration frequency, rear: 2,520 VPM

Amplitude, rear: 0.091 in

Centrifugal force, rear: 16,200 lbs

Steering, type

Steering, type: Articulated steering

Fuel tank, capacity

Fuel tank, capacity: 9.5 gal

Sound power level L(WA), guaranteed

Sound power level L(WA), guaranteed: 109

1/8

Downloads

All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
