Cold milling machines

Efficient milling and granulating of road pavements

Asphalt and concrete pavements can be cost-effectively removed with cold milling machines. The range of applications extends from the complete removal of asphalt and concrete to the layer-by-layer removal and levelling of asphalt and concrete surfaces. With WIRTGEN cold milling machines, it is possible to machine working widths from 1 ft 2 in up to 14 ft 5 in and working depths up to 1 ft 2 in in a single pass. In addition, a large number of different milling drums, such as ECO cutters or fine milling drums, ensure that machines can be used with a high degree of flexibility.

Compact milling machines

Compact milling machines

The highly flexible compact milling machines combine the advantages of the small and large milling machine classes. The maneuverable front-loaders are easy to transport and are ideal for use on confined job sites. These powerful machines can mill off entire asphalt pavements cost-effectively. A wide range of different milling drums is available, greatly extending the possible range of applications so that the milling of individual layers and fine milling operations are also among the everyday tasks of these machines.

Milling width
Milling depth max.
Maximum power
Operating weight, CE
Product No. 1
W 100 XFi
Milling width
1,000 mm
Milling depth max.
330 mm
Maximum power
257 kW / 350 HP
Operating weight, CE
20,900 kg
Product No. 1
W 120 XTi
Milling width
1,200 mm
Milling depth max.
330 mm
Maximum power
257 kW / 350 HP
Operating weight, CE
21,900 kg
Product No. 1
W 120 XFi
Milling width
1,200 mm
Milling depth max.
330 mm
Maximum power
257 kW / 350 HP
Operating weight, CE
21,900 kg
Product No. 1
W 130 XFi
Milling width
1,300 mm
Milling depth max.
330 mm
Maximum power
257 kW / 350 HP
Operating weight, CE
22,300 kg

Large milling machines

Large milling machines

Large milling machines have a milling drum positioned centrally beneath the machine and a two-part front-loading system. Trucks can be loaded quickly and flexibly via the slewing and height-adjustable discharge conveyor. A variety of different milling drums and milling drum assemblies are available to cater to the wide array of milling tasks. They can be exchanged quickly and easily to suit the application. The range of applications extends from wide-scale complete removal down to a depth of 35 cm in a single pass to the rehabilitation of concrete pavements and airport runways as well as fine milling to improve pavement skid resistance.

Milling width
Milling depth max.
Maximum power
Operating weight, CE
Product No. 1

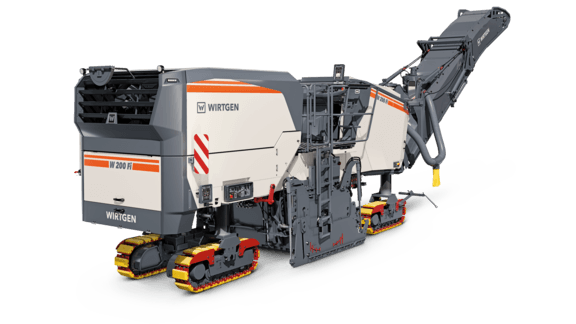

W 200 Fi USA
Milling width
2,200 mm
Milling depth max.
330 mm
Maximum power
455 kW / 619 HP
Operating weight, CE
28,200 kg
Product No. 1

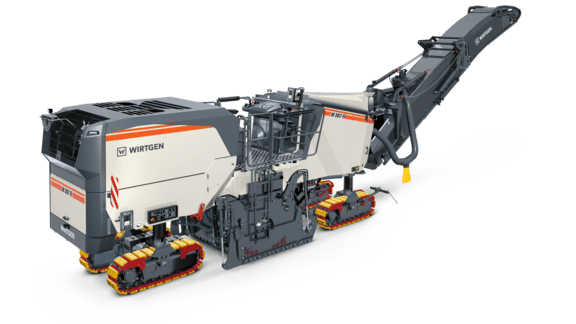

W 207 Fi USA
Milling width
2,200 mm
Milling depth max.
330 mm
Maximum power
470 kW / 639 HP
Operating weight, CE
28,700 kg
Product No. 1
W 210 Fi
Milling width
2,200 mm
Milling depth max.
330 mm
Maximum power
563 kW / 766 HP
Operating weight, CE
29,300 kg
Product No. 1

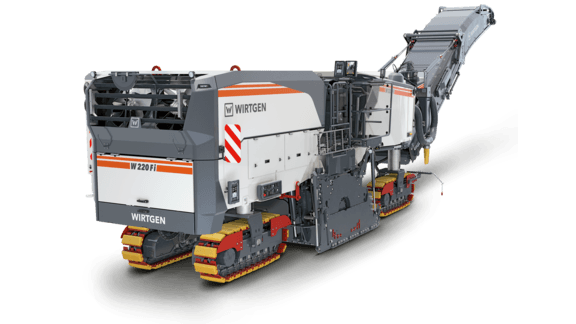

W 220 Fi
Milling width
2,200 mm
Milling depth max.
350 mm
Maximum power
597 kW / 812 HP
Operating weight, CE
37,100 kg
Product No. 1
W 250 Fi
Milling width
2,200 mm
Milling depth max.
350 mm
Maximum power
753 kW / 1009 HP
Operating weight, CE
42,300 kg
