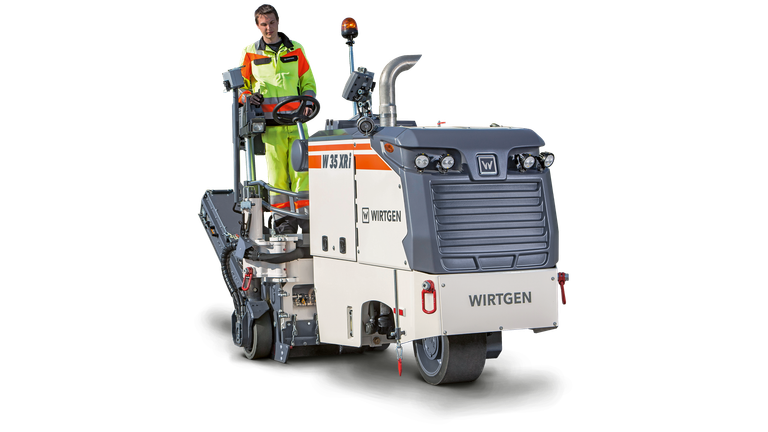

Small milling machine W 35 XRi

W 35 XRi Small milling machine

US EPA Tier 4f

350

mm

110

mm

Universal cold milling machine for a wide variety of applications

  • The highly maneuverable cold milling machine is perfect for milling jobs in confined spaces.
  • The machine’s range of applications can be extended through the use of a variety of different milling drums with milling drum housing widths of 14 in (0.35 m) or 20 in (0.5 m).
  • The machine is also suitable for renovation work in industrial warehouses or parking garages.
  • The W 35 XRi stands out for its low machine weight with additional weights that can be used as required for optimum ballasting and traction to meet varying requirements.
  • The LEVEL PRO PLUS leveling system fully integrated into the machine control system guarantees high-precision milling results.
Show less
Highlights
Simple, ergonomic operation
Particularly maneuverable and compact machine
Precise steering with high traction
High-precision, intuitive levelling with LEVEL PRO PLUS
Flexibility for different milling jobs
Efficient loading of milled material
High productivity at low environmental emissions

Cold milling with small milling machines

Small milling machines are equipped with a wheeled chassis and a milling drum positioned at the rear of the machine. The granulated RAP separated by the rotating milling drum is collected by a slewing discharge belt located at the rear of the machine and immediately conveyed to waiting trucks. That is why small milling machines are also called rear loaders. The compact rear loaders are designed to be operated by a single person. In addition, they are usually extremely maneuverable and have a retractable right rear wheel.

Learn more

WIRTGEN cutting technology

High quality results are the goal of every construction project. This applies to road rehabilitation using cold milling machines and cold recyclers as well as to soil stabilization and the extraction of minerals with surface miners. In order to remove pavement with precision and efficiency, it is essential that the drum, pick holder, and pick work together perfectly.

WIRTGEN is the market leader in cutting technology and offers customers high-performance cutting systems whose components are designed to be fully compatible. In addition, WIRTGEN continuously makes advancements to these cutting technology components, incorporating its practical experience and feedback from customers into the process.

Learn more

WIRTGEN leveling technology

WIRTGEN’s leveling technology adjusts height, depth, and pitch for extremely accurate results. In the process, the system permanently compares the actual values to predefined target values and adjusts the deviations proportionally. This state-of-the-art machine technology consistently guarantees outstanding leveling results and significantly reduces the machine operator’s workload.

WIRTGEN offers customers reliable hardware and software developed in-house. In this context, a variety of systems are used depending on the construction project and local conditions at the job site.

Learn more

Control technology

All WIRTGEN machines feature a built-in, high-quality machine control system. The fact that the majority of its software is developed in-house plays a key role in this regard – WIRTGEN has placed a special focus on ongoing development, thus significantly increasing the operational reliability of its machines. Many years of experience in software and hardware development also makes it possible to achieve more flexible and sophisticated machine functionality in terms of the range of applications and individual customer requirements.

Learn more

Technical specifications

Exhaust emissions category
Operating weight, CE
Milling width
Milling depth max.
Displacement
Max. travel speed
Max. milling speed
Maximum power
Exhaust emissions category
US EPA Tier 4f
Operating weight, CE
4,650 kg
Milling width
350 mm
Milling depth max.
110 mm
Displacement
2,925 cm³
Max. travel speed
6 km / h
Max. milling speed
1.5 km/h
Maximum power
45 kW / 61 HP

All details, illustrations and texts are non-binding and may include optional additional fittings. Subject to technical modifications. Performance data dependant upon operational conditions.
