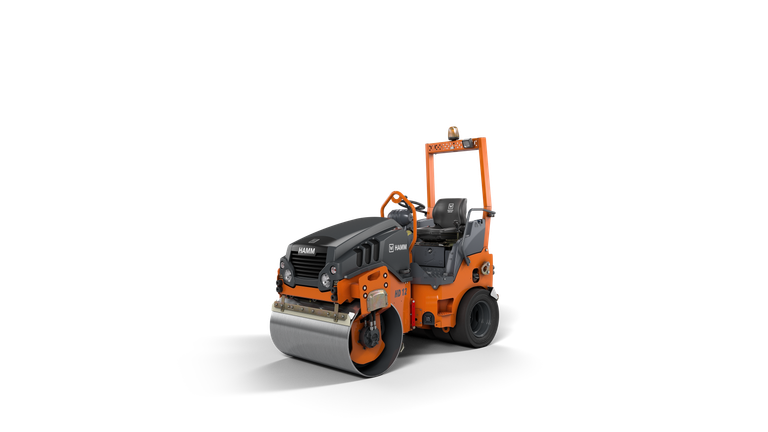

Tandem roller with vibration drum and set of wheels HD 12 P VT
NEW

HD 12 P VT Tandem roller with vibration drum and set of wheels

ha-abmessung-bandagen
47.2 in

ha-gewichte
5,722 lbs

ha-dieselmotor
KUBOTA

  • Ergonomic driver platform
  • Simple, intuitive and language-neutral control
  • Simple transport, simple loading
  • Excellent view of drum edge, machine and construction site environment
  • Compact dimensions

3-point articulation

3-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.

Find out more

Technical specifications

Series
Name
Description
Exhaust emissions category
Series
Series
HD CompactLine
Name
HD 12 P VT
Description
Tandem roller with vibration drum and set of wheels
Exhaust emissions category
EPA Tier 4
Series
H336
Static linear load, front
Operating weight with ROPS
Empty weight without cab, without ROPS
Axle load, rear
Axle load, front
Max. operating weight
Static linear load, front
62.7 lbs/in
Operating weight with ROPS
5,722 lbs
Empty weight without cab, without ROPS
5,169 lbs
Axle load, rear
2,767 lbs
Axle load, front
2,955 lbs
Max. operating weight
7,321 lbs
Total width
Total length
Maximum working width
Center distance
Ground clearance, center
Turning radius, inside
Total height with ROPS
Total width
51.6 in
Total length
99.6 in
Maximum working width
48 in
Center distance
66.9 in
Ground clearance, center
11 in
Turning radius, inside
93.3 in
Total height with ROPS
97.4 in
Number of tires, rear
Tire size, rear
Drum type, front
Drum diameter, front
Drum width, front
Width over tires, rear
Drum thickness, front
Track offset, right
Track offset, left
Number of tires, rear
4
Tire size, rear
9,5/65-15
Drum type, front
Smooth/non-split
Drum diameter, front
28.3 in
Drum width, front
47.2 in
Width over tires, rear
44.9 in
Drum thickness, front
0.6 in
Track offset, right
2 in
Track offset, left
0 in
Number of tires, rear
Tire size, rear
Width over tires, rear
Number of tires, rear
4
Tire size, rear
9,5/65-15
Width over tires, rear
44.9 in
Manufacturer
Model
Cylinders, quantity
Exhaust emission standard
Power ISO 14396, rpm
Power ISO 14396, HP
Power ISO 14396, kW
Power SAE J1995, rpm
Power SAE J1995, HP
Power SAE J1995, kW
Manufacturer
KUBOTA
Model
D1703-M-DI-E4B
Cylinders, quantity
3
Exhaust emission standard
EPA Tier 4
Power ISO 14396, rpm
2,200 rpm
Power ISO 14396, HP
24.8 HP
Power ISO 14396, kW
18.2 kW
Power SAE J1995, rpm
2,200 rpm
Power SAE J1995, HP
24.8 hp
Power SAE J1995, kW
18.5 kW
Speed, infinitely variable
Climbing ability, without vibration
Speed, infinitely variable
6.0
Climbing ability, without vibration
40 %
Centrifugal force, front, II
Centrifugal force, front, I
Amplitude, front, II
Amplitude, front, I
Vibration frequency, front, II
Vibration frequency, front, I
Centrifugal force, front, II
5,175 lbs
Centrifugal force, front, I
8,550 lbs
Amplitude, front, II
0.018 in
Amplitude, front, I
0.018 in
Vibration frequency, front, II
3,060 VPM
Vibration frequency, front, I
3,900 VPM
Steering, type
Steering, type
Articulated steering
Water sprinkling, type
Water sprinkling, type
Pressure
Fuel tank, capacity
Water tank, capacity
Additive tank, capacity
Fuel tank, capacity
11.1 gal
Water tank, capacity
47.6 gal
Additive tank, capacity
4.8 gal
Sound power level L(WA), guaranteed
Sound power level L(WA), guaranteed
106

Equipment

  • 12 V power socket
  • 3-point articulation
  • Dashboard with displays, indicator lights and switches
  • Dashboard cover, lockable and weather-resistant
  • Pressure water sprinkling system

Optional equipment

  • Plastic scraper, folding
  • ROPS, folding
  • Metal protective roof on ROPS (FOPS, level I)
  • Exterior rear-view mirror
  • Compaction meter
