NEW

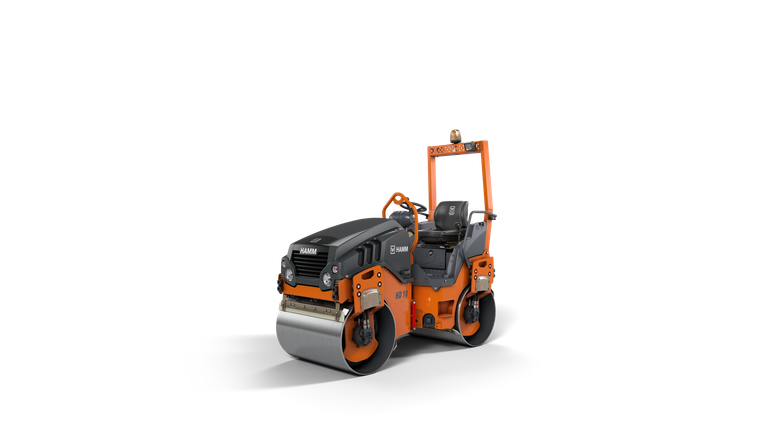

HD 10 P VV Tandem roller with two vibration drums
39.4 in
5,457 lbs
KUBOTA
3-point articulation
3-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
Technical specifications
- Series
- Name
- Description
- Exhaust emissions category
- Series
-
- Series
- HD CompactLine
- Name
- HD 10 P VV
- Description
- Tandem roller with two vibration drums
- Exhaust emissions category
- EPA Tier 4
- Series
- H336
- Operating weight with ROPS
- Empty weight without cab, without ROPS
- Static linear load, front
- Axle load, rear
- Axle load, front
- Max. operating weight
-
- Operating weight with ROPS
- 5,457 lbs
- Empty weight without cab, without ROPS
- 4,926 lbs
- Static linear load, front
- 67.8 lbs/in
- Axle load, rear
- 2,800 lbs
- Axle load, front
- 2,657 lbs
- Max. operating weight
- 7,034 lbs
- Total width
- Total length
- Maximum working width
- Center distance
- Ground clearance, center
- Turning radius, inside
- Total height with ROPS
-
- Total width
- 43.7 in
- Total length
- 99.6 in
- Maximum working width
- 41.3 in
- Center distance
- 66.9 in
- Ground clearance, center
- 11 in
- Turning radius, inside
- 97.2 in
- Total height with ROPS
- 97.4 in
- Drum type, front
- Drum type, rear
- Track offset, right
- Track offset, left
- Drum thickness, rear
- Drum thickness, front
- Drum diameter, rear
- Drum diameter, front
- Drum width, rear
- Drum width, front
-
- Drum type, front
- Smooth/non-split
- Drum type, rear
- Smooth/non-split
- Track offset, right
- 2 in
- Track offset, left
- 0 in
- Drum thickness, rear
- 0.6 in
- Drum thickness, front
- 0.6 in
- Drum diameter, rear
- 28.3 in
- Drum diameter, front
- 28.3 in
- Drum width, rear
- 39.4 in
- Drum width, front
- 39.4 in
- Manufacturer
- Model
- Cylinders, quantity
- Exhaust emission standard
- Power ISO 14396, rpm
- Power ISO 14396, HP
- Power ISO 14396, kW
- Power SAE J1995, rpm
- Power SAE J1995, HP
- Power SAE J1995, kW
-
- Manufacturer
- KUBOTA
- Model
- D1703-M-DI-E4B
- Cylinders, quantity
- 3
- Exhaust emission standard
- EPA Tier 4
- Power ISO 14396, rpm
- 2,200 rpm
- Power ISO 14396, HP
- 24.8 HP
- Power ISO 14396, kW
- 18.2 kW
- Power SAE J1995, rpm
- 2,200 rpm
- Power SAE J1995, HP
- 24.8 hp
- Power SAE J1995, kW
- 18.5 kW
- Speed, infinitely variable
- Climbing ability, without vibration
-
- Speed, infinitely variable
- 6.3
- Climbing ability, without vibration
- 40 %
- Centrifugal force, rear, II
- Centrifugal force, rear, I
- Centrifugal force, front, II
- Centrifugal force, front, I
- Amplitude, front, II
- Amplitude, front, I
- Vibration frequency, rear, II
- Vibration frequency, rear, I
- Vibration frequency, front, II
- Vibration frequency, front, I
- Amplitude, rear, II
- Amplitude, rear, I
-
- Centrifugal force, rear, II
- 4,500 lbs
- Centrifugal force, rear, I
- 7,425 lbs
- Centrifugal force, front, II
- 4,500 lbs
- Centrifugal force, front, I
- 7,425 lbs
- Amplitude, front, II
- 0.018 in
- Amplitude, front, I
- 0.018 in
- Vibration frequency, rear, II
- 3,060 VPM
- Vibration frequency, rear, I
- 3,900 VPM
- Vibration frequency, front, II
- 3,060 VPM
- Vibration frequency, front, I
- 3,900 VPM
- Amplitude, rear, II
- 0.018 in
- Amplitude, rear, I
- 0.018 in
- Steering, type
-
- Steering, type
- Articulated steering
- Water sprinkling, type
-
- Water sprinkling, type
- Pressure
- Fuel tank, capacity
- Water tank, capacity
-
- Fuel tank, capacity
- 11.1 gal
- Water tank, capacity
- 47.6 gal
- Sound power level L(WA), guaranteed
-
- Sound power level L(WA), guaranteed
- 106
