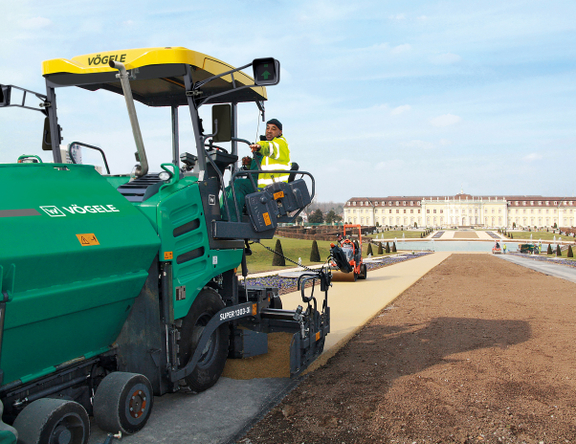

Wheeled paver Compact Class SUPER 1303-3i

SUPER 1303-3i Wheeled paver Compact Class

1.85

m

4.5

m

250

t/h

Compact, manœuvrable and powerful with every convenience

The SUPER 1303-3i features an extremely compact design and superb manoeuvrability. A basic width of 1.85 m and an overall length of just 4.95 m make the compact paver ideal for jobs in confined spaces. Coming with the AB 340 Extending Screed for pave widths up to 4.5 m, SUPER 1303-2 conveniently handles medium-sized jobs, too.

Show less
The highlights of the SUPER 1303-3i
Range of applications
Drive
Turning circle
Feed with mix
AutoSet Basic
Operating system
Extending screed
Tolles Produkt

ErgoPlus 3

Even the very best machine with the most advanced technology can only really show its strengths if it can be operated easily and as intuitively as possible. At the same time, it should offer an ergonomic and safe working environment for the operating team. Therefore, the ErgoPlus 3 operating concept focuses on the operator.

More
Tolles Produkt

AutoSet Basic

AutoSet Basic is especially helpful when the machine frequently has to be moved on the job site.

Simply pressing the “Execute” button hydraulically raises the augers, the hopper front and the deflectors in front of the crawler to the uppermost positions. The screed is moved into transport position. The conveyors are temporarily reversed, preventing mix from falling to the ground when the paver travels to the next work section on site.

Once the paver has been repositioned, pressing the “Execute” button again returns all systems to the previously stored working positions.

More
Tolles Produkt

PaveDock Assistant

A constant supply of mix is essential for producing a level, high-quality pavement. That's why VÖGELE developed the PaveDock Assistant for their “Dash 3” generation of pavers. This exceedingly efficient system greatly facilitates communication between the paver operator and the driver of the feed vehicle, and it ensures that the mix is supplied to the paver safely and without jolts.

More
Tolles Produkt

Pivot Steer – the steering brake

The new standard Pivot Steer function makes the SUPER wheeled pavers almost as nimble as the tracked pavers: a minimal inner turning circle enables the machines to turn virtually on the spot. This is a huge advantage, particularly on cramped job sites, such as those found in urban environments.

More

Technical specifications

Engine
Version
Manufacturer
Type
Nominal output
ECO mode output
Exhaust emissions standard
Exhaust emissions after-treatment
Fuel tank
Emission data
Sound power level
Daily noise exposure level
Version
liquid-cooled 4-cylinder diesel engine
Manufacturer
Deutz
Type
TCD 3,6 L4
Nominal output
74.4 kW / 2000 U/min
ECO mode output
68.7 kW / 1600 U/min
Exhaust emissions standard
European exhaust emissions standard V, US standard EPA Tier 4f
Exhaust emissions after-treatment
DOC, DPF, SCR
Fuel tank
110 l
Sound power level
105 dB
Daily noise exposure level
80 dB
Front wheels
Version
Tyre equipment
Tyre size, front wheels
Rear wheels
Version
Tyre size, rear wheels
Traction drive
Version
Standard
Speeds
Pave speed (up to)
Travel speed (up to)
Steering
Outside turning circle
Outside turning circle
Brakes
Service brake
Parking brake
Auxiliary brake
Version
4, mounted on bogies
Tyre equipment
Solid tyres
Tyre size, front wheels
460/310-250
Version
2, pneumatic, tubeless
Tyre size, rear wheels
365/80 R20
Version
separate hydraulic drives
Standard
2 rear and 2 front wheels (6x4)
Pave speed (up to)
30 m/min
Travel speed (up to)
20 km/h
Steering
hydraulic-assisted
Outside turning circle
5 m
Outside turning circle
3.8 m
Service brake
generously-dimensioned multiple-disk brakes operated by foot pedal, maintenance-free
Parking brake
spring-loaded multiple-disk brake, maintenance-free
Auxiliary brake
hydrostatic brake
Width
Feed height (bottom of material hopper)
Push-rollers
Standard
Positions
Hopper capacity
Width
3,265 mm
Feed height (bottom of material hopper)
570 mm
Standard
oscillating, fold up with hopper sides
Positions
can be adjusted in a forward direction by 80 mm
Hopper capacity
10 t
Conveyors
Version
Drive
Speed
Augers
Augers
Version
Diameter
Speed
Drive
Height
Standard height
Conveyors
2
Version
with replaceable feeder bars, direction of conveyor temporarily reversible
Drive
separate hydraulic drives, proportional control
Speed
29 m/min
Augers
2
Version
with replaceable auger blades, auger rotation reversible
Diameter
300 mm
Speed
85 U/min
Drive
separate hydraulic drives, proportional control
Height
infinitely variable
Standard height
mechanically adjustable by 13 cm
Layer thickness (up to)
Heating
Power Supply
Screed
Layer thickness (up to)
25 cm
Heating
electric
Power Supply
Three-phase AC generator
Screed
Type Basic width Maximum width (TV) Compacting systems
AB 340 1.8 m 4.5 m V, TV
Length
Operating weight
Maximum laydown rate
Length
Screed Total length
AB 340 4.95 m
Operating weight
Screed Total weight
AB 340 V 10,500 kg
AB 340 TV 10,700 kg
Maximum laydown rate
250 t/h

All details, illustrations and texts are non-binding and may include optional additional fittings. Subject to technical modifications. Performance data dependant upon operational conditions.
