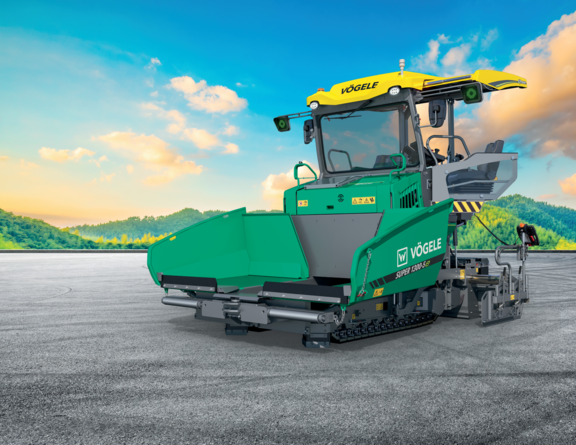

SUPER 1300-5e Tracked paver Compact Class
1,85
m
4,2
m
350
t/h
Powerful E-Power paver with large battery capacity

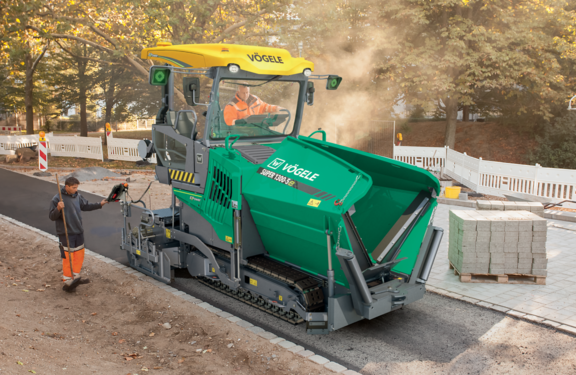

With the SUPER 1300-5e, VÖGELE is now offering the first battery-electric tracked paver in the Compact Class an. Its lithium-ion battery has a high storage capacity and operates in the high-voltage range. Combined with the AB 340 extending screed, the SUPER 1300-5e offers paving widths between 1.8 and 4.2 m. This makes the E-Power paver particularly suitable for use on inner-city projects such as the paving of pedestrian walkways and cycleways or small streets and squares.
Show less
Technical specifications
- Hopper capacity
-
- Hopper capacity
- 10 t
- Battery
- Battery capacity
- Nominal voltage
-
- Battery capacity
- 126 kWh
- Nominal voltage
- 364 V
- Undercarriage
- Version
- Ground contact
- Traction drive crawler tracks
- Lubrication of track rollers
- Track tension adjuster
-
- Version
- provided with rubber pads
- Ground contact
- 1,990 mm x 260 mm
- Traction drive crawler tracks
- separate hydraulic drives with electronic control
- Lubrication of track rollers
- lifetime
- Track tension adjuster
- spring assembly
