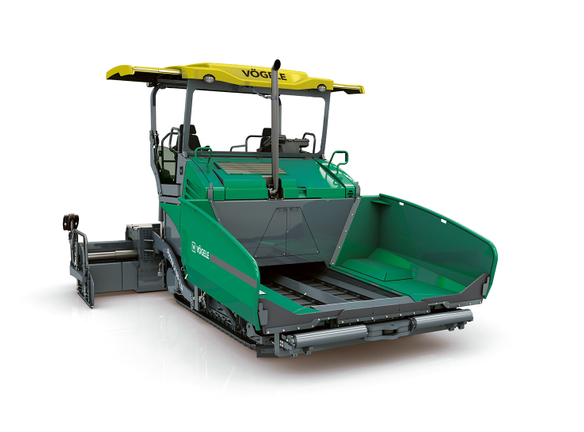

SUPER 2180-3 Li Highway Class tracked paver
m
m
t/h
Powerful, efficient and economical
The Highway Class from VÖGELE is legendary. No other paver in the world can rival it for popularity among professional road construction teams. Although the drive system of the high-grade SUPER 2180-3 Li has been completely revised, the machine still follows on seamlessly from its predecessors, offering the same proven features.
Show less
ErgoPlus 3
Even the very best machine with the most advanced technology can only really show its strengths if it can be operated easily and as intuitively as possible. At the same time, it should offer an ergonomic and safe working environment for the operating team. Therefore, the ErgoPlus 3 operating concept focuses on the operator.
VÖGELE EcoPlus
The machine concept behind the Dash 3 road pavers is summed up by the motto “Lower consumption – lower emissions – lower costs”. The VÖGELE EcoPlus low-emissions package combines a number of individual measures which can help to reduce fuel consumption and noise emissions.
Niveltronic Plus
The automatic levelling system Niveltronic Plus is an in-house development of JOSEPH VÖGELE AG and based on many years of experience in grade and slope control technology. Easy operation, precision and reliability are its hallmarks for perfect mastery of all grade and slope control jobs.
Technical specifications
- Hopper capacity
- Width
- Feed height (bottom of material hopper)
- Push-rollers
- Standard
- Positions
-
- Hopper capacity
- 15 t
- Width
- 3,261 mm
- Feed height (bottom of material hopper)
- 508 mm
- Standard
- oscillating
- Positions
- can be adjusted in a forward direction by 75 mm or 150 mm
- Engine
- Version
- Manufacturer
- Type
- Exhaust emissions standard
- Nominal output
- ECO mode output
- Fuel tank
-
- Version
- liquid-cooled 6-cylinder diesel engine
- Manufacturer
- Dongfeng Cummins
- Type
- B6.7 CS4-260C
- Exhaust emissions standard
- NR4
- Nominal output
- 191 kW / 2,000 U/min
- ECO mode output
- 190 kW / 1,700 U/min
- Fuel tank
- 350 l
- Undercarriage
- Version
- Ground contact
- Traction drive crawler tracks
- Track tension adjuster
- Speeds
- Pave speed (up to)
- Travel speed (up to)
- Lubrication of track rollers
-
- Version
- provided with rubber pads
- Ground contact
- 3,060 mm x 300 mm
- Traction drive crawler tracks
- separate hydraulic drives with electronic control
- Track tension adjuster
- spring assembly
- Pave speed (up to)
- 24 m/min
- Travel speed (up to)
- 4.5 km/h
- Lubrication of track rollers
- lifetime
- Conveyors
- Number
- Version
- Drive
- Speed (up to)
- Augers
- Number
- Version
- Diameter
- Drive
- Rpm (up to)
- Height
- Standard height
- Lubrication
-
- Number
- 2
- Version
- with replaceable feeder bars, direction of conveyor temporarily reversible
- Drive
- separate hydraulic drives, proportional control
- Speed (up to)
- 45 m/min
- Number
- 2
- Version
- with replaceable auger blades, auger rotation reversible
- Diameter
- 420 mm
- Drive
- separate hydraulic drives, proportional control
- Rpm (up to)
- 100 U/min
- Height
- infinitely variable
- Standard height
- hydraulically adjustable by 20 cm
- Lubrication
- centralized lubrication system, electrically-driven grease pump
