Inset Slipform pavers SP 64i

SP 64i Inset Slipform pavers

EU Stage 5/US EPA Tier 4f

2,000 - 7,500 mm

0 - 450 mm

The new benchmark for perfection in concrete paving

  • Lane paver that can be fully equipped in the SP 60 series
  • Highly precise paving of standard concrete slabs at widths ranging from 6' 7" (2.00) m to 19' 8" (6.00 m) and layer thicknesses of up to 450 mm.
  • Intelligent steering and control concept for exceedingly quiet operation even in narrow bends guarantee precision in cocrete steering
  • Simple conversion and easy expansion with additional components for adapting to an extremely wide range of field situations
Show less

Slipform paving inset

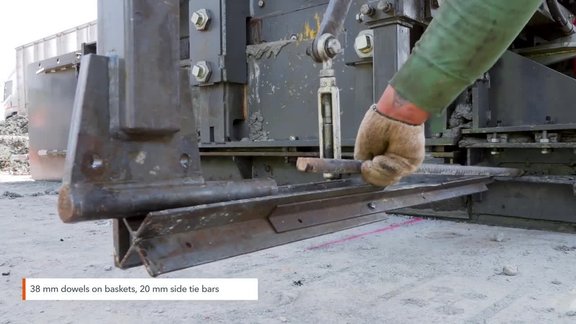

In inset application, the concrete is either deposited right in front of the slipform paver or is fed in front of the machine from the side via a belt conveyor or side feeder. In the next step, the concrete is distributed evenly across the full paving width by a spreading auger or spreading plow. Built-in electrical or hydraulic vibrators ensure homogeneous compaction of the concrete. The inset mold forms the concrete surface to the specified thickness and width while the slipform paver travels forward. In addition, a dowel bar inserter can be added which inserts the dowel bars into the concrete as specified parallel to the paver’s direction of travel. Central tie bars or side tie bars can be inserted perpendicular to the concrete pavement. The oscillating beam scrapes the surface across the roadway. Afterwards, a super smoother can smooth the concrete surface.

Learn more

WIRTGEN leveling technology

WIRTGEN’s leveling technology adjusts height, depth, and pitch for extremely accurate results. In the process, the system permanently compares the actual values to predefined target values and adjusts the deviations proportionally. This state-of-the-art machine technology consistently guarantees outstanding leveling results and significantly reduces the machine operator’s workload.

WIRTGEN offers customers reliable hardware and software developed in-house. In this context, a variety of systems are used depending on the construction project and local conditions at the job site.

Learn more

Technical specifications

Exhaust emissions category
Number of crawler tracks
Paving width
Layer thickness
Displacement
Machine weight
Mechanical height adjustment
Rated power
Height adjustment, hydraulic
Exhaust emissions category
EU Stage 5/US EPA Tier 4f
Number of crawler tracks
4
Paving width
2,000 - 7,500 mm
Layer thickness
0 - 450 mm
Displacement
6,057 cm³
Machine weight
17,000 - 45,000 kg
Mechanical height adjustment
420 mm
Rated power
180 kW / 245 HP
Height adjustment, hydraulic
1,100 mm

All details, illustrations and texts are non-binding and may include optional additional fittings. Subject to technical modifications. Performance data dependant upon operational conditions.
