Cold milling machines


Efficient milling and granulating of road pavements

Asphalt and concrete pavements can be cost-effectively removed with cold milling machines. The range of applications extends from the complete removal of asphalt and concrete to the layer-by-layer removal and levelling of asphalt and concrete surfaces. With WIRTGEN cold milling machines, it is possible to machine working widths from 35 cm up to 4.40 m and working depths up to 35 cm in a single pass. In addition, a large number of different milling drums, such as ECO cutters or fine milling drums, ensure that machines can be used with a high degree of flexibility.

Small milling machines

Small milling machines are equipped with a wheeled chassis and a milling drum positioned at the rear. The granulated RAP which is broken up by the rotating milling drum is transferred to a slewing and height-adjustable discharge conveyor and immediately loaded onto waiting transport vehicles. The compact rear loaders are highly maneuverable and their rear right wheel can be swiveled in when milling flush to the edges of obstacles. A variety of different milling drums are available, enabling the small milling machines to cover a wide range of applications extending from partial pavement rehabilitations and tie-in milling to the rehabilitation of industrial floors.

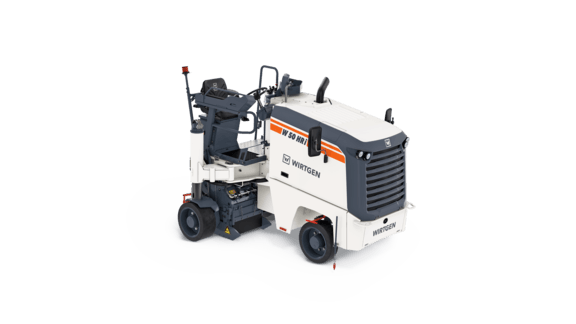

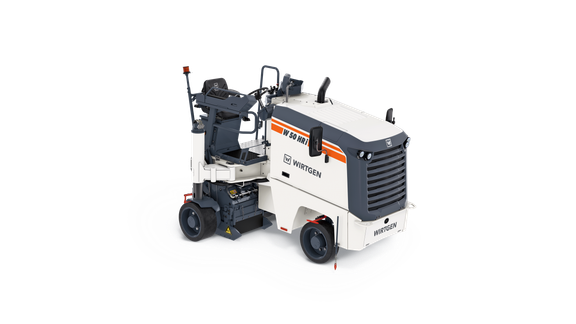

W 50 HRi Small milling machines
W 50 HRi

Small milling machines

Milling width
500 mm
Milling depth max.
180 mm
Maximum power 89 kW / 121 HP
Operating weight, CE
5,850 kg
W 55 HRi Small milling machines
W 55 HRi

Small milling machines

Milling width
500 mm
Milling depth max.
180 mm
Maximum power 89 kW / 121 HP
Operating weight, CE
6,900 kg
W 100 HRi Small milling machines
W 100 HRi

Small milling machines

Milling width
1,000 mm
Milling depth max.
200 mm
Operating weight, CE
13,900 kg
W 130 HRi Small milling machines
W 130 HRi

Small milling machines

Milling width
1,300 mm
Milling depth max.
200 mm
Operating weight, CE
14,400 kg

Compact milling machines

The highly flexible compact milling machines combine the advantages of the small and large milling machine classes. The maneuverable front-loaders are easy to transport and are ideal for use on confined job sites. These powerful machines can mill off entire asphalt pavements cost-effectively. A wide range of different milling drums is available, greatly extending the possible range of applications so that the milling of individual layers and fine milling operations are also among the everyday tasks of these machines.

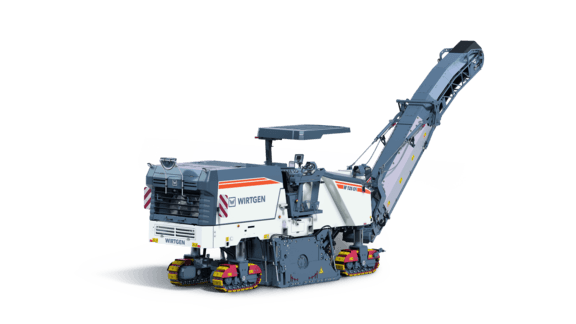

W 125 CFi Compact milling machines
W 125 CFi

Compact milling machines

Milling width
1,200 mm
Milling depth max.
330 mm
Maximum power 292 kW / 397 HP
Operating weight, CE
21,400 kg

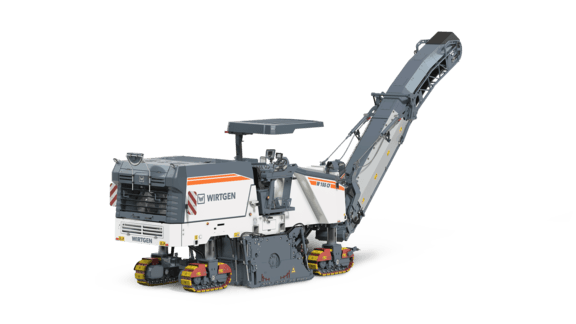

W 155 CFi Compact milling machines
W 155 CFi

Compact milling machines

Milling width
1,500 mm
Milling depth max.
330 mm
Maximum power 292 kW / 397 HP
Operating weight, CE
20,900 kg

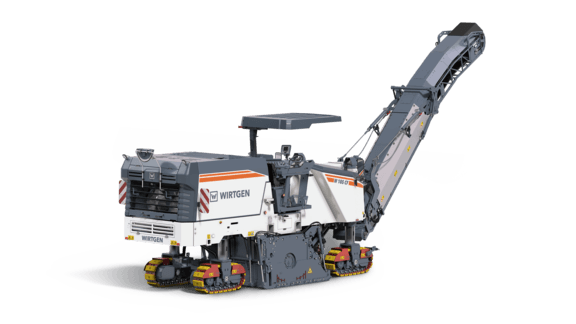

W 185 CFi Compact milling machines
W 185 CFi

Compact milling machines

Milling width
1,900 mm
Milling depth max.
330 mm
Maximum power 292 kW / 397 HP
Operating weight, CE
21,250 kg

Large milling machines

Large milling machines have a milling drum positioned centrally beneath the machine and a two-part front-loading system. Trucks can be loaded quickly and flexibly via the slewing and height-adjustable discharge conveyor. A variety of different milling drums and milling drum assemblies are available to cater to the wide array of milling tasks. They can be exchanged quickly and easily to suit the application. The range of applications extends from wide-scale complete removal down to a depth of 35 cm in a single pass to the rehabilitation of concrete pavements and airport runways as well as fine milling to improve pavement skid resistance.

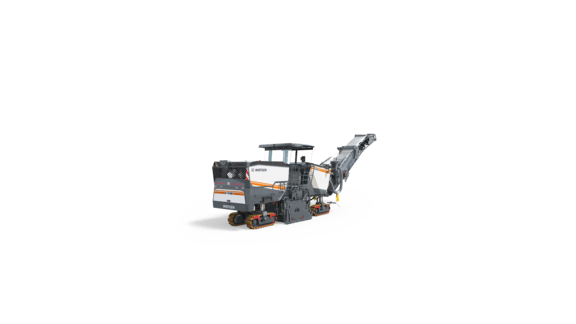

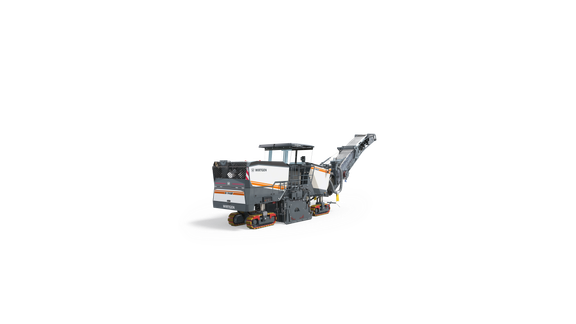

W 195i Large milling machines
W 195i

Large milling machines

Milling width
2,000 mm
Milling depth max.
330 mm
Maximum power 410 kW / 557 HP
Operating weight, CE
29,710 kg

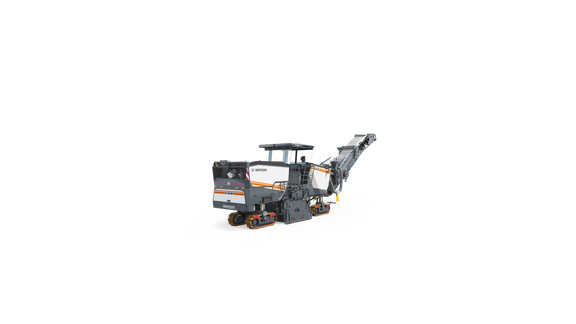

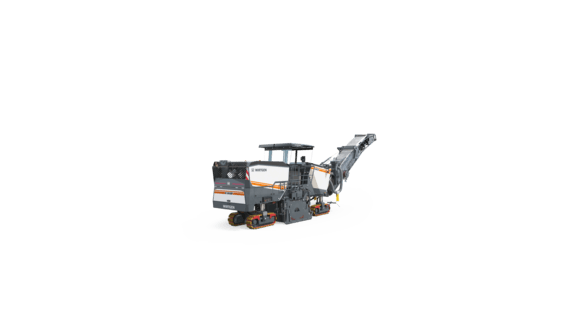

W 205i Large milling machines
W 205i

Large milling machines

Milling width
2,000 mm
Milling depth max.
330 mm
Maximum power 455 kW / 619 HP
Operating weight, CE
30,650 kg

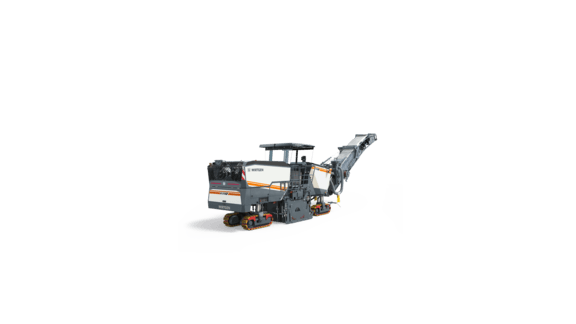

W 215i Large milling machines
W 215i

Large milling machines

Milling width
2,000 mm
Milling depth max.
330 mm
Maximum power 470 kW / 639 HP
Operating weight, CE
30,840 kg
