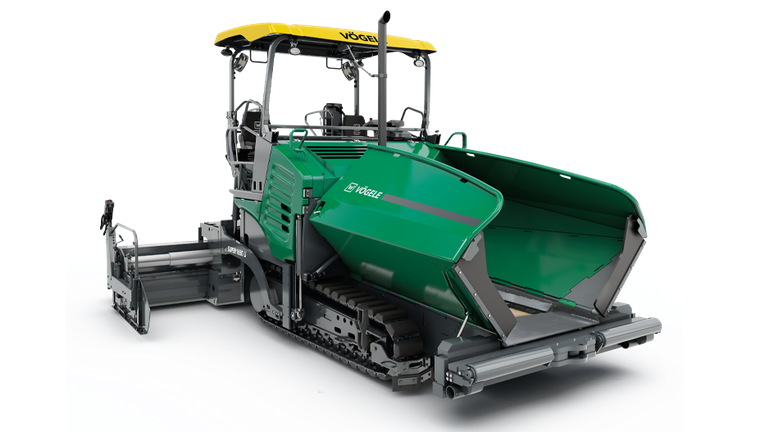

Universal Class tracked paver SUPER 1680 Li

SUPER 1680 Li Universal Class tracked paver

2.55

m

7.8

m

800

t/h

Robust, powerful and easy to operate

The VÖGELE SUPER 1680 Li concentrates on key functions, meaning that it delivers an outstanding price/benefit ratio. The machine is the ideal candidate when the aim is to complete classic paving tasks in top quality using tried and tested technology.

Show less
The highlights of the SUPER 1680 Li
Drive concept
Efficient transmission of tractive power
Optimal mix feed
Large push-rollers
Wide range of applications
ErgoBasic operating system
Wide range of applications
ErgoBasic operating system
Niveltronic Basic System

ErgoBasic

The ErgoBasic operating concept was designed on the back of the tried and tested ErgoPlus operating system for our Premium Line pavers and tailored specifically to meet the demands and needs of VÖGELE Classic Line users.

The goal was to develop an operating system which can be operated just as quickly, accurately and intuitively as the ErgoPlus 3 system on the “Dash 3” machines. That makes VÖGELE the only manufacturer to offer a standardized operating concept for all paver classes.

More

Niveltronic Basic

VÖGELE has also developed the Niveltronic Basic System for Automated Grade and Slope Control to match the ErgoBasic operating concept. It is completely integrated in the machine control system and therefore perfectly adapted to the paver model concerned. Another outstanding aspect of Niveltronic Basic is its particularly simple and intuitive handling, a feature which makes it easy even for less experienced operators to use the system correctly. This creates ideal conditions for the Classic Line pavers to work true to line and level on any base.

More

Technical specifications

Engine
Version
Manufacturer
Type
Exhaust emissions standard
Nominal output
ECO mode output
Fuel tank
Version
liquid-cooled 4-cylinder diesel engine
Manufacturer
Foton Cummins
Type
F4.5
Exhaust emissions standard
NR4
Nominal output
123 kW / 2,000 U/min
ECO mode output
119 kW / 1,700 U/min
Fuel tank
220 l
Undercarriage
Version
Ground contact
Traction drive crawler tracks
Lubrication of track rollers
Track tension adjuster
Speeds
Pave speed (up to)
Travel speed (up to)
Version
provided with rubber pads
Ground contact
2,410 mm x 305 mm
Traction drive crawler tracks
separate hydraulic drives with electronic control
Lubrication of track rollers
lifetime
Track tension adjuster
spring assembly
Pave speed (up to)
24 m/min
Travel speed (up to)
4.5 km/h
Hopper capacity
Width
Feed height (bottom of material hopper)
Push-rollers
Standard
Positions
Hopper capacity
15 t
Width
3,265 mm
Feed height (bottom of material hopper)
615 mm
Standard
oscillating
Positions
can be adjusted in a forward direction by 75 mm or 150 mm
Conveyors
Number
Version
Drive
Speed (up to)
Augers
Number
Version
Diameter
Drive
Rpm (up to)
Height
Standard height
Lubrication
Number
2
Version
with replaceable feeder bars, direction of conveyor temporarily reversible
Drive
separate hydraulic drives, proportional control
Speed (up to)
33 m/min
Number
2
Version
with replaceable auger blades, auger rotation reversible
Diameter
400 mm
Drive
separate hydraulic drives, proportional control
Rpm (up to)
84 U/min
Height
infinitely variable
Standard height
mechanically adjustable by 15 cm
Lubrication
centralized lubrication system, electrically-driven grease pump
Screed
Layer thickness (up to)
Heating
Power Supply
Screed
Type Basic width Maximum width Compacting systems
AB 480 2.55 m 7.8 m TV
Layer thickness (up to)
30 cm
Heating
electric, thermostat-controlled
Power Supply
Three-phase AC generator
Operating weight
Length
Operating weight
Screed Total weight
AB 480 TV 18,300 kg
Length
Screed Total length
AB 480 6.08 m

All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
