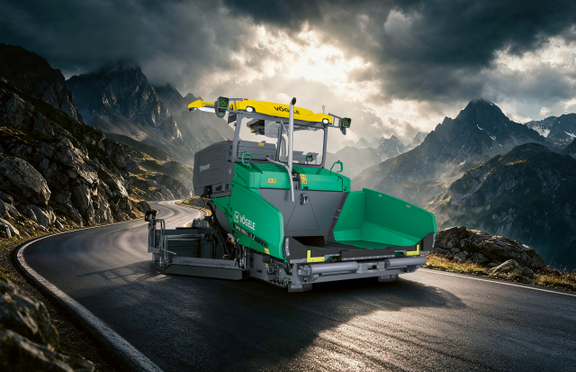

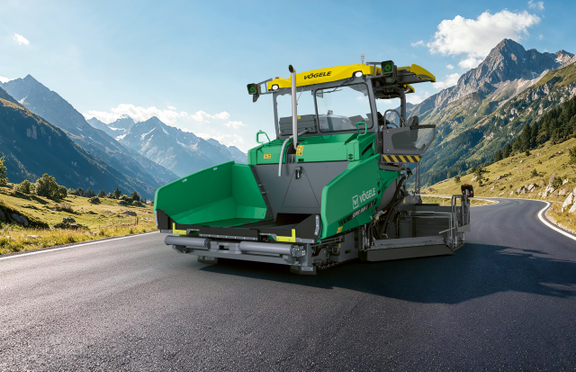

SUPER 1800-5 X SprayJet Tracked paver Special Class
m
m
t/h
The innovative Dash 5 SprayJet paver
As a Dash 5 generation machine, the SUPER 1800-5 X SprayJet paver combines maximum performance with the most advanced spray technology. The VÖGELE SprayJet paver can be used not only for paving ultra-thin bonded overlays (UTBO) hot over a polymer-modified bitumen emulsion seal, but also for paving conventional surface and binder courses. Thanks to the ErgoPlus 5 operating concept, the spray module is easy to use and enables users to keep a constant eye on all relevant settings.
Show less
ErgoPlus – The operating concept
An innovative machine with the latest technology also includes an advanced operating concept. This must be easy and intuitive to use - and simultaneously ergonomic. The ErgoPlus 5 operating concept makes the operator the focus.
Comfort Package with Paver Access Control (PAC)
The Comfort Package makes operating “Dash 5” pavers more convenient, safe and ergonomic than ever before. The Comfort Package includes the PAC comfort access feature, Ergonomic Plus operator seats, luggage nets and sound insulation in the hardtop, and also bottle holders.
Light Package and Light Package Plus
In the Light Package and Light Package Plus, VÖGELE offers two options for optimum illumination of the workplace for the Dash 5 machine generation.
Auto Grade Plus
Auto Grade Plus has been developed by JOSEPH VÖGELE AG based on extensive experience in levelling technology. Easy operation, precision and reliability are its hallmarks for perfect mastery of all grade and slope control jobs.
Technical specifications
- Engine
- Version
- Manufacturer
- Type
- Exhaust emissions standard
- Exhaust emissions after-treatment
- Nominal output
- ECO mode output
- Fuel tank
-
- Version
- liquid-cooled 4-cylinder diesel engine
- Manufacturer
- Cummins
- Type
- QSB4.5 - C155
- Exhaust emissions standard
- ECE R96 category H (equivalent to EU stage 3a)
- Exhaust emissions after-treatment
- without
- Nominal output
- 129 kW / 2,000 U/min
- ECO mode output
- 128 kW / 1,700 U/min
- Fuel tank
- 300 l
- Undercarriage
- Version
- Ground contact
- Traction drive crawler tracks
- Lubrication of track rollers
- Track tension adjuster
- Speeds
- Pave speed (up to)
- Travel speed (up to)
-
- Version
- provided with rubber pads
- Ground contact
- 2,830 mm x 300 mm
- Traction drive crawler tracks
- separate hydraulic drives with electronic control
- Lubrication of track rollers
- lifetime
- Track tension adjuster
- spring assembly
- Pave speed (up to)
- 25 m/min
- Travel speed (up to)
- 4.5 km/h
- Hopper capacity
- Width
- Feed height (bottom of material hopper)
- Push-rollers
- Standard
- Positions
- Option
-
- Hopper capacity
- 13 t
- Width
- 3,290 mm
- Feed height (bottom of material hopper)
- 578 mm
- Standard
- oscillating
- Positions
- Displaceable forwards by 100mm
- Option
- sprung (PaveDock)
- Conveyors
- Number
- Drive
- Augers
- Number
- Version
- Diameter
- Lubrication
-
- Number
- 2
- Drive
- separate hydraulic drive provided for each conveyor and each auger
- Number
- 2
- Version
- with replaceable auger blades, auger rotation reversible
- Diameter
- 320 mm
- Lubrication
- centralized lubrication system, electrically-driven grease pump
- Spray nozzles
- Number of spray nozzles
- Spray pressure (up to)
- Spray cone
- Rate of spread
- Emulsion tank
- Capacity
- Standard
- Optionally with additional tank
- Spray bars
- Spray width
- Number of spray bars
- Heating
-
- Number of spray nozzles
- 24
- Spray pressure (up to)
- 3 bar
- Spray cone
- 120 °
- Rate of spread
- 0.3 kg/m² to 1.6 kg/m²
- Emulsion tank
- insulated hopper walls
- Standard
- 2,100 l
- Optionally with additional tank
- 7,100 l
- Spray width
- 2.55 m to 8.25 m
- Number of spray bars
- 5
- Heating
- electric, thermostat-controlled
All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
