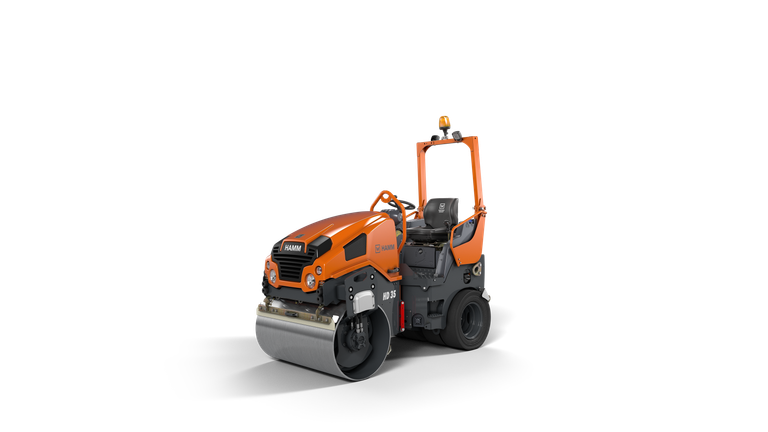

HD 35 VT Tandem roller with vibrating roller drum and set of wheels
2,655 kg
1,200 mm
MEE IV
Technical specifications
- Series
- Name
- Description
- Exhaust emissions category
- Series
-
- Series
- HD CompactLine
- Name
- HD 35 VT
- Description
- Tandem roller with vibrating roller drum and set of wheels
- Exhaust emissions category
- MEE IV
- Series
- H286
- Static linear load, front
- Operating weight with ROPS
-
- Static linear load, front
- 11.3 kg/cm
- Operating weight with ROPS
- 2,655 kg
- Total width
- Total length
- Maximum working width
- Centre distance
- Turning radius, inside
- Total height with ROPS
-
- Total width
- 1,310 mm
- Total length
- 2,530 mm
- Maximum working width
- 1,220 mm
- Centre distance
- 1,700 mm
- Turning radius, inside
- 2,370 mm
- Total height with ROPS
- 2,391 mm
- Drum diameter, front
- Drum width, front
- Drum type, front
- Drum thickness, front
- Track offset, right
- Track offset, left
-
- Drum diameter, front
- 720 mm
- Drum width, front
- 1,200 mm
- Drum type, front
- Smooth/non-split
- Drum thickness, front
- 15 mm
- Track offset, right
- 50 mm
- Track offset, left
- 0 mm
- Number of tyres, rear
- Tyre size, rear
- Width over tyres, rear
-
- Number of tyres, rear
- 4
- Tyre size, rear
- 9,5/65-15
- Width over tyres, rear
- 1,133 mm
- Manufacturer
- Model
- Cylinders, quantity
- Exhaust emission standard
- Exhaust gas after-treatment
- Power ISO 14396, rpm
- Power ISO 14396, HP
- Power ISO 14396, kW
- Power SAE J1995, rpm
- Power SAE J1995, HP
- Power SAE J1995, kW
-
- Manufacturer
- KUBOTA
- Model
- D1803-M-DI-CT02
- Cylinders, quantity
- 3
- Exhaust emission standard
- MEE IV
- Exhaust gas after-treatment
- -
- Power ISO 14396, rpm
- 2,600 rpm
- Power ISO 14396, HP
- 33.2 HP
- Power ISO 14396, kW
- 24.4 kW
- Power SAE J1995, rpm
- 2,600 rpm
- Power SAE J1995, HP
- 32.7 hp
- Power SAE J1995, kW
- 24.4 kW
- Speed, infinitely variable
- Climbing ability, without vibration
-
- Speed, infinitely variable
- 0 - 12,0
- Climbing ability, without vibration
- 40 %
- Centrifugal force, front, II
- Centrifugal force, front, I
- Amplitude, front, II
- Amplitude, front, I
- Vibration frequency, front, II
- Vibration frequency, front, I
-
- Centrifugal force, front, II
- 32 kN
- Centrifugal force, front, I
- 52 kN
- Amplitude, front, II
- 0.52 mm
- Amplitude, front, I
- 0.52 mm
- Vibration frequency, front, II
- 52 Hz
- Vibration frequency, front, I
- 67 Hz
- Steering, type
-
- Steering, type
- Articulated steering
- Water sprinkling, type
-
- Water sprinkling, type
- Pressure
- Fuel tank, capacity
- Water tank, capacity
- Additive tank, capacity
-
- Fuel tank, capacity
- 42 l
- Water tank, capacity
- 180 l
- Additive tank, capacity
- 18 l
- Sound power level L(WA), guaranteed
-
- Sound power level L(WA), guaranteed
- 106
