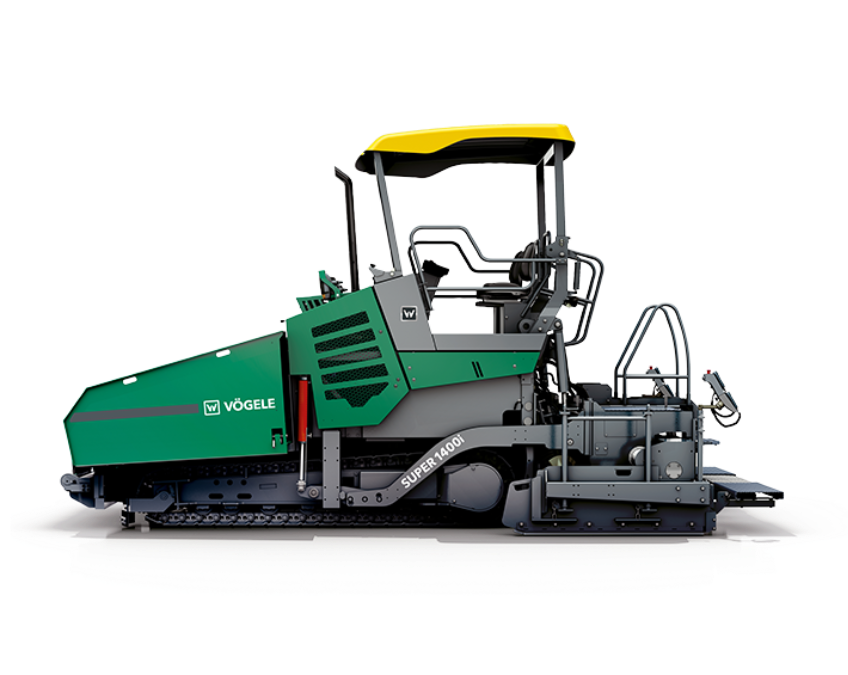

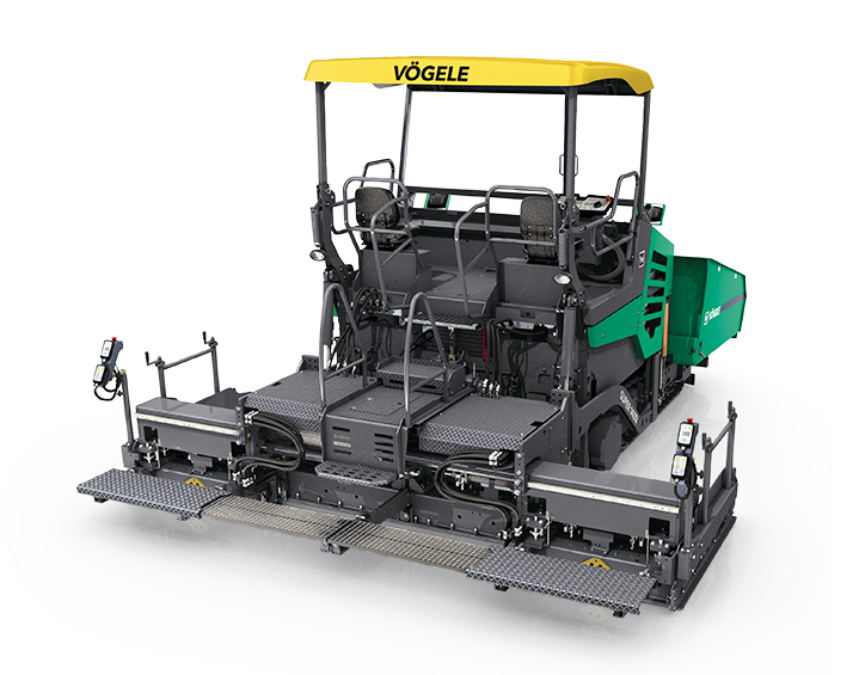

Tracked paver Universal Class SUPER 1400i

SUPER 1400i Tracked paver Universal Class

2.55

m

7.5

m

600

t/h

Low emissions, low noise – economical and powerful

The new SUPER 1400i points the way toward the future of road construction in India. The paver has a modern JOHN DEERE engine with innovative exhaust emissions after-treatment. The machine’s chassis and material handling systems are unrivalled in terms of robustness. The innovative and easy-to-learn ErgoBasic operating system is every machine operator‘s dream, providing ergonomic working conditions tailored to real-life use.

Show less
The highlights of the SUPER 1400i
Engine
Paving quality
Service concept
Operating system
Grade and slope control technology
Extending screed
Screed heating
Tolles Produkt

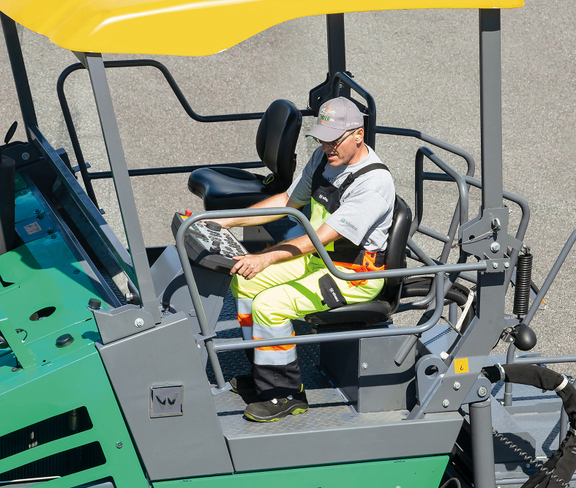

ErgoBasic

The ErgoBasic operating concept was designed on the back of the tried and tested ErgoPlus operating system for our Premium Line pavers and tailored specifically to meet the demands and needs of VÖGELE Classic Line users.

The goal was to develop an operating system which can be operated just as quickly, accurately and intuitively as the ErgoPlus 3 system on the “Dash 3” machines. That makes VÖGELE the only manufacturer to offer a standardized operating concept for all paver classes.

More
Tolles Produkt

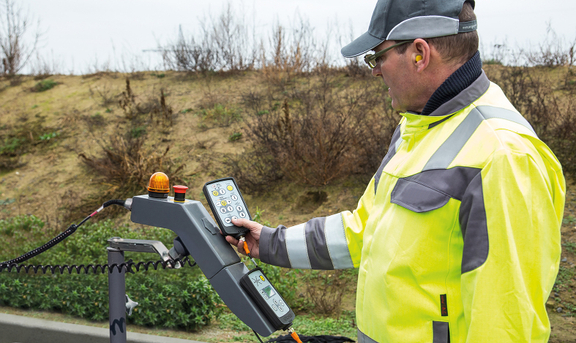

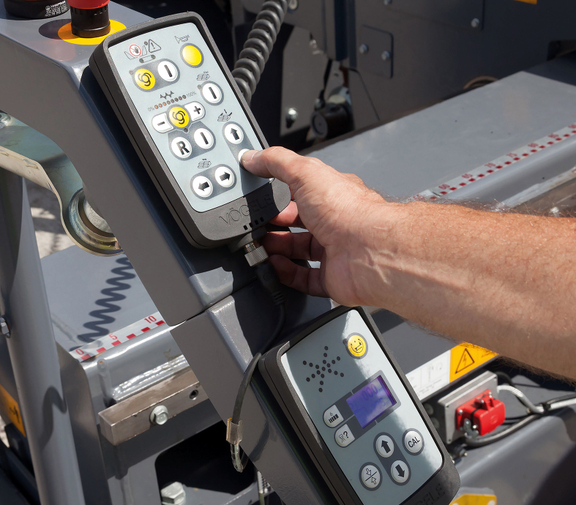

Niveltronic Basic

VÖGELE has also developed the Niveltronic Basic System for Automated Grade and Slope Control to match the ErgoBasic operating concept. It is completely integrated in the machine control system and therefore perfectly adapted to the paver model concerned. Another outstanding aspect of Niveltronic Basic is its particularly simple and intuitive handling, a feature which makes it easy even for less experienced operators to use the system correctly. This creates ideal conditions for the Classic Line pavers to work true to line and level on any base.

More

Technical specifications

Engine
Version
Manufacturer
Type
Exhaust emissions standard
Nominal output
ECO mode output
Fuel tank
Version
liquid-cooled 4-cylinder diesel engine
Manufacturer
John Deere
Type
4045 EWL
Exhaust emissions standard
CEV Stage IV
Nominal output
110 kW / 2,200 U/min
ECO mode output
106.5 kW / 1,800 U/min
Fuel tank
220 l
Undercarriage
Version
Ground contact
Traction drive crawler tracks
Lubrication of track rollers
Track tension adjuster
Speeds
Pave speed crawler tracks (up to)
Travel speed (up to)
Version
provided with rubber pads
Ground contact
2,830 mm x 305 mm
Traction drive crawler tracks
separate hydraulic drives with electronic control
Lubrication of track rollers
lifetime
Track tension adjuster
spring assembly
Pave speed crawler tracks (up to)
24 m/min
Travel speed (up to)
4.5 km/h
Hopper capacity
Width
Feed height (bottom of material hopper)
Push-rollers
Positions
Standard
Hopper capacity
13 t
Width
3,267 mm
Feed height (bottom of material hopper)
560 mm
Positions
can be displaced forwards by 150 mm
Standard
oscillating
Augers
Drive
Version
Speed
Diameter
Height
Standard height
Conveyors
Drive
Version
Speed
Conveyors
Augers
Drive
separate hydraulic drives, proportional control
Version
with replaceable auger blades, auger rotation reversible
Speed
65 U/min
Diameter
400 mm
Height
infinitely variable
Standard height
mechanically adjustable by 15 cm
Drive
separate hydraulic drives, proportional control
Version
with replaceable feeder bars, direction of conveyor temporarily reversible
Speed
25 m/min
Conveyors
2
Augers
2
Screed
Layer thickness (up to)
Power Supply
Heating
Screed
Type Basic width Maximum width Compacting systems
AB 480 2.55 m 7.5 m TV
Layer thickness (up to)
30 cm
Power Supply
Three-phase AC generator
Heating
electric
Operating weight
Length
Maximum laydown rate
Operating weight
Screed Total weight
AB 480 TV 16,500 kg
Length
Screed Total length
AB 480 6.04 m
Maximum laydown rate
600 t/h

All details, illustrations and texts are non-binding and may include optional additional fittings. Subject to technical modifications. Performance data dependant upon operational conditions.
