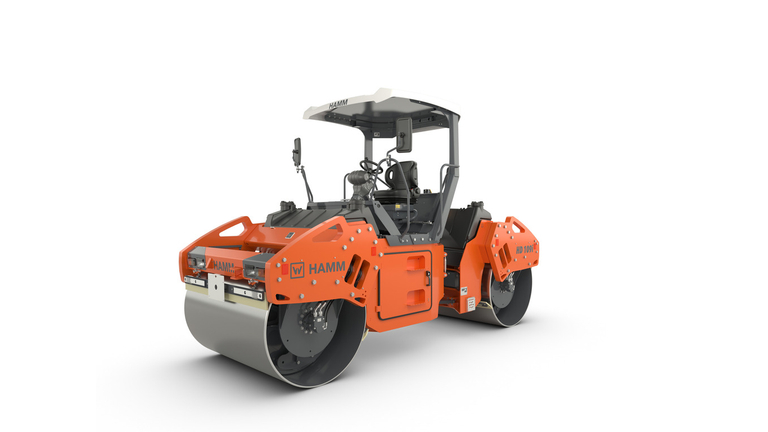

HD 109i VV Tandem roller with two vibration drums
10,060 kg
1,680 mm
JOHN DEERE
3-point articulation
3-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
Technical specifications
- Series
- Name
- Description
- Series
-
- Series
- HD
- Name
- HD 109i VV
- Description
- Tandem roller with two vibration drums
- Series
- H306
- Operating weight with ROPS
- Empty weight without cab, without ROPS
- Static linear load, front
- Axle load, rear
- Axle load, front
- Max. operating weight
-
- Operating weight with ROPS
- 10,060 kg
- Empty weight without cab, without ROPS
- 9,230 kg
- Static linear load, front
- 30.3 kg/cm
- Axle load, rear
- 5,231 kg
- Axle load, front
- 4,829 kg
- Max. operating weight
- 10,520 kg
- Total width
- Total length
- Maximum working width
- Centre distance
- Ground clearance, centre
- Turning radius, inside
- Total height
-
- Total width
- 1,928 mm
- Total length
- 4,810 mm
- Maximum working width
- 1,780 mm
- Centre distance
- 3,510 mm
- Ground clearance, centre
- 343 mm
- Turning radius, inside
- 4,151 mm
- Total height
- 3,027 mm
- Drum type, front
- Drum type, rear
- Track offset, left
- Drum thickness, rear
- Drum thickness, front
- Drum diameter, rear
- Drum diameter, front
- Drum width, rear
- Drum width, front
-
- Drum type, front
- Smooth
- Drum type, rear
- Smooth
- Track offset, left
- 100 mm
- Drum thickness, rear
- 17 mm
- Drum thickness, front
- 17 mm
- Drum diameter, rear
- 1,200 mm
- Drum diameter, front
- 1,200 mm
- Drum width, rear
- 1,680 mm
- Drum width, front
- 1,680 mm
- Manufacturer
- Model
- Cylinders, quantity
- Power SAE J1995, rpm
- Power SAE J1995, HP
- Power SAE J1995, kW
-
- Manufacturer
- JOHN DEERE
- Model
- EWX 2.9
- Cylinders, quantity
- 3
- Power SAE J1995, rpm
- 2,200 rpm
- Power SAE J1995, HP
- 74 hp
- Power SAE J1995, kW
- 55 kW
- Speed, transport gear
- Climbing ability, without vibration
- Speed, working gear, I
-
- Speed, transport gear
- 0-13,8
- Climbing ability, without vibration
- 35 %
- Speed, working gear, I
- 0-7
- Centrifugal force, rear, II
- Centrifugal force, rear, I
- Centrifugal force, front, II
- Centrifugal force, front, I
- Amplitude, front, II
- Amplitude, front, I
- Vibration frequency, rear, II
- Vibration frequency, rear, I
- Vibration frequency, front, II
- Vibration frequency, front, I
- Amplitude, rear, II
- Amplitude, rear, I
-
- Centrifugal force, rear, II
- 60 kN
- Centrifugal force, rear, I
- 75 kN
- Centrifugal force, front, II
- 60 kN
- Centrifugal force, front, I
- 75 kN
- Amplitude, front, II
- 0.37 mm
- Amplitude, front, I
- 0.66 mm
- Vibration frequency, rear, II
- 50 Hz
- Vibration frequency, rear, I
- 42 Hz
- Vibration frequency, front, II
- 50 Hz
- Vibration frequency, front, I
- 42 Hz
- Amplitude, rear, II
- 0.37 mm
- Amplitude, rear, I
- 0.66 mm
- Steering, type
-
- Steering, type
- Articulated steering
- Water sprinkling, type
-
- Water sprinkling, type
- Pressure
- Fuel tank, capacity
- Water tank, capacity
-
- Fuel tank, capacity
- 156 l
- Water tank, capacity
- 700 l
