Surface Miner 4200 SMi

4200 SMi Surface Miner

EU Stage 5/US EPA Tier 4f

1,194 kW / 1,623 HP

4,200

mm

Maximum performance in large-scale opencast mining

  • Surface miner with maximum mining performance for selective mining of hard or soft rock.
  • The 4.2 m cutting drum unit with a cutting depth of up to 650 mm in hard rock, which is precisely adapted to the specific application, achieves outstanding cutting performance with minimal cutting tool wear.

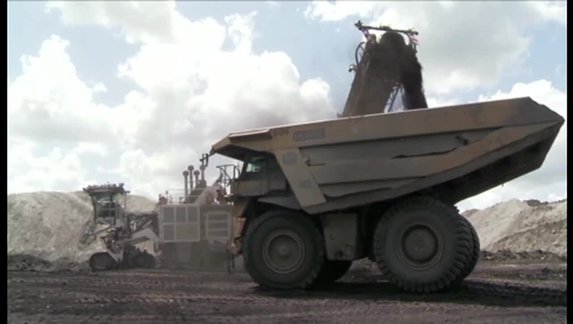

  • The powerful rear loading conveyor can be elevated and rotated and makes it possible to load trucks with a payload of 120 to 220 tons.
  • With an annual production capacity of up to 12 million tons in soft rock, the miner is ideally suited for large-scale open-cast mining.
  • The operator’s cabin features windows on all sides and is heatable, air-conditioned, soundproofed and isolated from vibrations for fatigue-free, productive work.
Show less
Highlights
Discharger conveyor
Counterweight
Kabin
Track units
Cutting drum
Power unit with diesel engine
Safety equipment
WIRTGEN Pick Inspection
Access
Drum tooling

Surface Mining

As the surface miner moves forward, a special cutting drum rotates against the direction of travel, cutting layers of material from the rock formations and crushing it in the process. The primary conveyor picks up the material in the drum housing and transports it towards the rear of the machine, where it is then accepted by the slewable and height-adjustable discharge conveyor. The discharge conveyor loads the material into trucks or dumpers or discharges it to the side of the miner. The discharge height can be adjusted to the height of the transport vehicles. The surface miner is driven via four steerable and height-adjustable track units. An automatic leveling system ensures precise adherence to the cutting depth, thus enabling even thin seams or layers to be mined selectively and with maximum accuracy.

Learn more

WIRTGEN cutting technology

High quality results are the goal of every construction project. This applies to road rehabilitation using cold milling machines and cold recyclers as well as to soil stabilization and the extraction of minerals with surface miners. In order to remove pavement with precision and efficiency, it is essential that the drum, pick holder, and pick work together perfectly.

WIRTGEN is the market leader in cutting technology and offers customers high-performance cutting systems whose components are designed to be fully compatible. In addition, WIRTGEN continuously makes advancements to these cutting technology components, incorporating its practical experience and feedback from customers into the process.

Learn more

WIRTGEN leveling technology

WIRTGEN’s leveling technology adjusts height, depth, and pitch for extremely accurate results. In the process, the system permanently compares the actual values to predefined target values and adjusts the deviations proportionally. This state-of-the-art machine technology consistently guarantees outstanding leveling results and significantly reduces the machine operator’s workload.

WIRTGEN offers customers reliable hardware and software developed in-house. In this context, a variety of systems are used depending on the construction project and local conditions at the job site.

Learn more

Technical specifications

Exhaust emissions category
Operating weight, CE
Power
Max. working speed
Max. travel speed
Cutting width max.
Cutting depth
Exhaust emissions category
EU Stage 5/US EPA Tier 4f
Operating weight, CE
204,300 kg
Power
1,194 kW / 1,623 HP
Max. working speed
0 – 27 m / min
Max. travel speed
0 – 2,5 km / h
Cutting width max.
4,200 mm
Cutting depth
830 mm

All details, illustrations and texts are non-binding and may include optional additional fittings. Subject to technical modifications. Performance data dependant upon operational conditions.
