AB 200 Extending screeds
m
The AB 200 extends the range of applications for the Mini Class

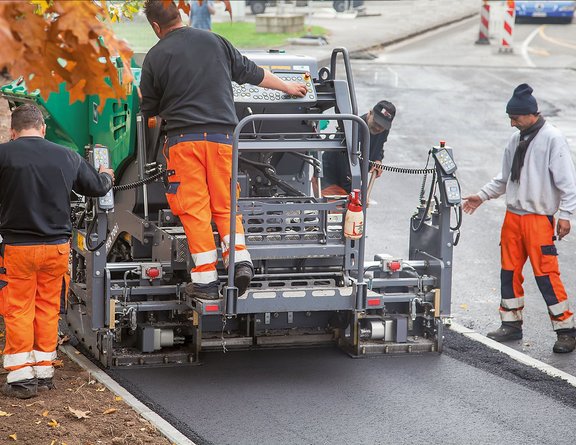

The AB 200 Extending Screed has a basic width of just 1.1 m and extends hydraulically up to 2 m. Its small basic width makes it ideal for paving between rails and in milled tracks, as well as for paving narrow paths. The screed is available with vibrators (AB 200 V) for the SUPER 700(i).
Show less
Compaction technology
VÖGELE sets the benchmark with products that deliver a phenomenal degree of precompaction in the paving process. Cutting-edge technology and the most advanced materials guarantee the outstanding performance and reliability of VÖGELE compaction technology. This applies to all VÖGELE compacting systems, from vibrators all the way to the VÖGELE high-compaction system with tamper and pressure bars.
Telescoping system
The operating principle of all VÖGELE extending screeds is the single-tube telescoping system. Even at maximum extension, half of the three-part, generously-sized telescoping tube is clamped, ensuring optimum stabilization. As the telescoping system is arranged at a high level, this prevents any contact with paving mix.
Heating System
VÖGELE has put its faith in electric screed heating for decades. This extensive experience, in combination with continuous further development, means that VÖGELE screeds are now brought to temperature quickly and evenly.
Manufacturing Technology
VÖGELE screeds feature leading-edge technology made possible by state-of-the-art production processes. The first of these processes, the precision cutting to shape of extremely wear-resistant sheet steel, takes place on laser cutting stations. Robots which operate continuously to a consistently high standard ensure long-lasting, stable welds.
Technical specifications
- Basic width
- Hydraulically adjustable
- Minimum paving width
- Maximum paving width
- Bolt-on extensions
- Cut-off shoes
-
- Basic width
- 1.1 m
- Hydraulically adjustable
- 1.10 m to 2.00 m
- Minimum paving width
- 0.5 m
- Maximum paving width
- 3.2 m
- Bolt-on extensions
-
Length Extra bolt-on extensions 35 cm (V, TV) 60 cm (V, TV)
- Cut-off shoes
- 0.5 m - 1 m
- Version
- Crown adjustment
-
- Version
- mechanical
- Crown adjustment
- -2 % to 4 %
- Compacting systems
- Vibrators (V)
- Version
- Frequency (max.)
- Tamper (T)
- Speed (max.)
- Stroke (TV)
-
- Compacting systems
- V, TV
- Version
- eccentric vibrators
- Frequency (max.)
- 50 Hz
- Speed (max.)
- 1,800 rpm
- Stroke (TV)
- 4 mm
- Heating rods
- Output generation
-
- Heating rods
- on screed plates and in tamper bars
- Output generation
- three-phase AC generator
- Basic screed weight
- Depth (in transport position)
-
- Basic screed weight
-
Screed Weight V 720 kg TV 820 kg
- Depth (in transport position)
-
Screed Depth AB 200 0.76 m
All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
