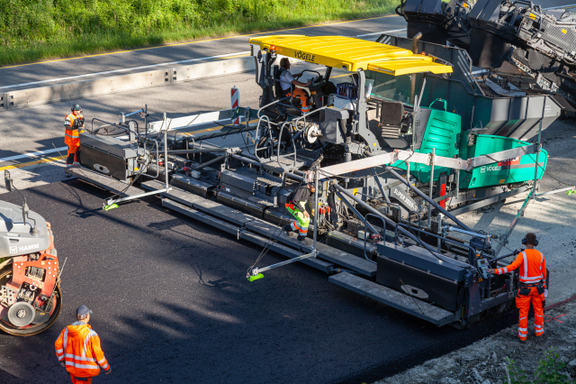

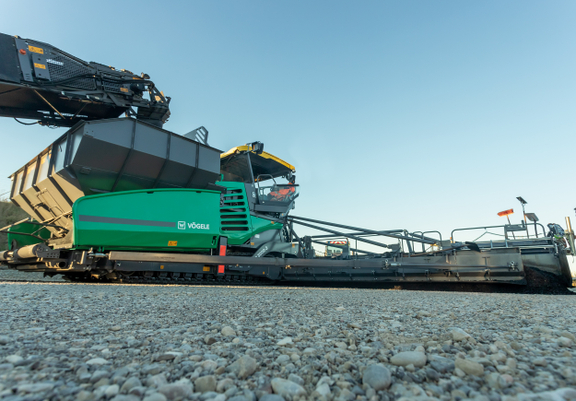

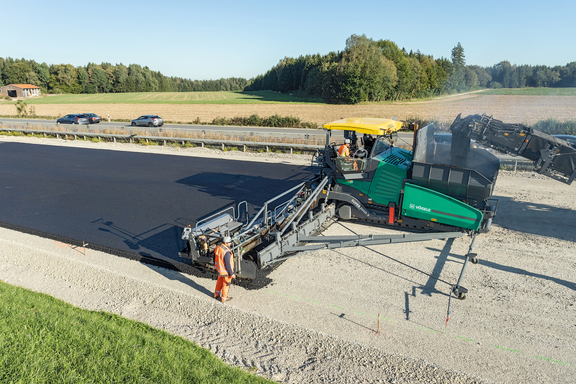

The largest paver in VÖGELE’s range is a real powerhouse and a flexible all-rounder, to boot: boasting a pave width of up to 18m, it is ideal for large-scale projects such as motorways and runways, but is equally at home constructing thick anti-freeze layers and crushed-stone bases. The screed concept of the SUPER 3000-3 is likewise geared to maximum flexibility, enabling the machines to tackle a broad range of different applications efficiently and productively.Show more Show less

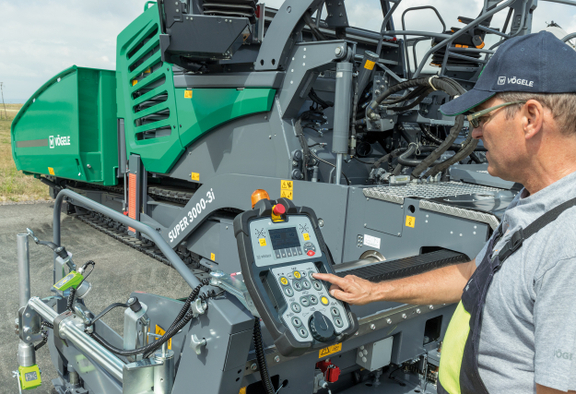

Even the very best machine with the most advanced technology can only really show its strengths if it can be operated easily and as intuitively as possible. At the same time, it should offer an ergonomic and safe working environment for the operating team. Therefore, the ErgoPlus 3 operating concept focuses on the operator.
The philosophy behind the machine concept of the Premium Line road pavers is "Lower consumption – lower emissions – lower costs". The VÖGELE EcoPlus low-emissions package combines a number of individual measures to reduce the fuel consumption and noise levels to a significant extent.
With AutoSet Plus, we have enhanced the efficiency, the convenience and thus the quality of key job site processes. AutoSet Plus has two handy automatic functions.
The two functions of AutoSet Plus automate routine tasks, allowing work processes to be carried out more quickly and with greater control. This in turn means that construction projects can be completed faster and more reliably.

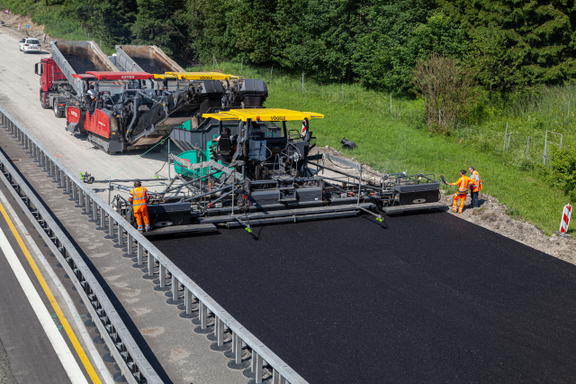

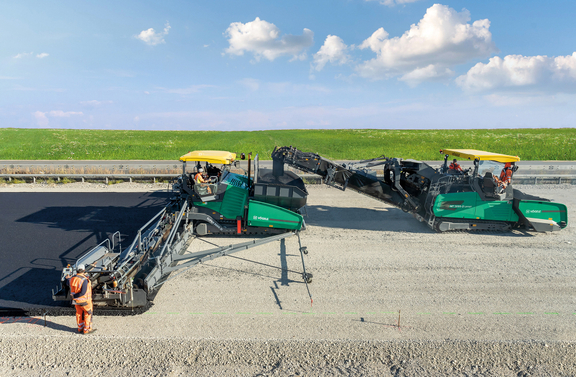

A constant supply of mix is essential for producing a level, high-quality pavement. That's why VÖGELE developed the PaveDock Assistant for their “Dash 3” generation of pavers. This exceedingly efficient system greatly facilitates communication between the paver operator and the driver of the feed vehicle, and it ensures that the mix is supplied to the paver safely and without jolts. Used in combination with the PaveDock push-rollers, PaveDock Assistant contributes greatly to process safety during the transfer of the mix.
A constant supply of mix is essential for producing a level, high-quality pavement. That's why VÖGELE developed the PaveDock Assistant for their “Dash 3” generation of pavers. This exceedingly efficient system greatly facilitates communication between the paver operator and the driver of the feed vehicle, and it ensures that the mix is supplied to the paver safely and without jolts.

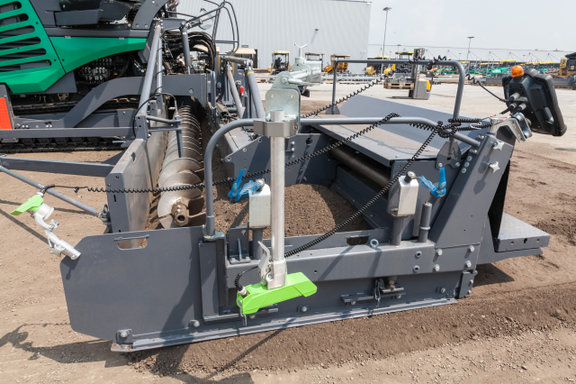

|Type||Basic width||Maximum width||Compacting systems|
|AB 600||3 m||9.5 m||TV, TP1, TP2, TP2 Plus|
|SB 300||3 m||16 m||TV, TP1, TP2|
|SB 300 HD||3 m||12 m||TV|
|SB 350||3.5 m||18 m||TV, TP1, TP2|
|AB 600 TV||31,800 kg|
|AB 600 TP1||32,100 kg|
|AB 600 TP2||32,450 kg|
|AB 600 TP2 Plus||32,850 kg|
|SB 300 TV||30,350 kg|
|SB 300 TP1||30,500 kg|
|SB 300 TP2||30,650 kg|
|SB 300 HD||30,250 kg|
|SB 300 HD TV||30,400 kg|
|SB 350 TV||30,500 kg|
|SB 350 TP1||30,750 kg|
|SB 350 TP2||30,900 kg|
|AB 600 TV||7.44 m|
|AB 600 TP||7.58 m|
|SB 300||7.48 m|
|SB 350||7.48 m|
All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
