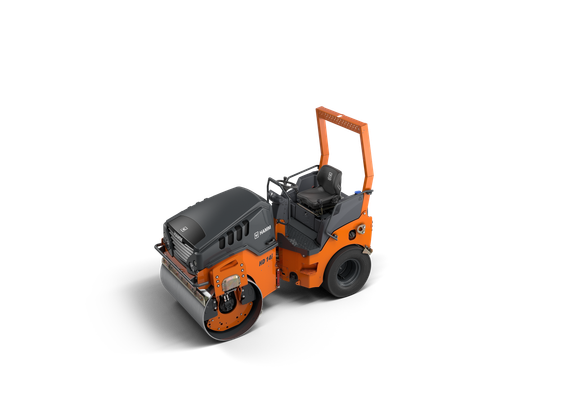

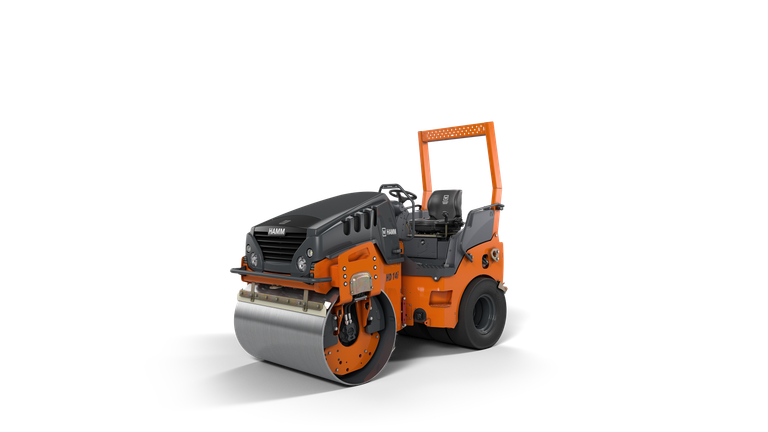

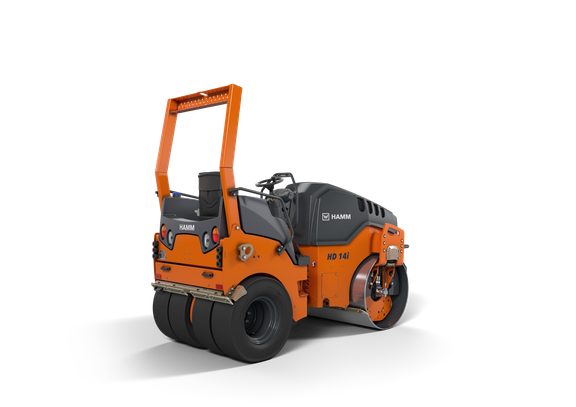

Tandem roller with vibrating roller drum and set of tyres HD 14i VT

HD 14i VT Tandem roller with vibrating roller drum and set of tyres

4,300 kg

1,380 mm

EU Stage V / EPA Tier 4

  • Excellent view of the drum edges, the machine and the construction site surroundings
  • Ergonomic driver platform
  • Easy transport, simple loading
  • Simple, intuitive and language-neutral operation
  • Compact dimensions
Show less

3-point articulation

3-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.

Learn more

Technical specifications

Series
Name
Description
Exhaust emissions category
Series
Series
HD CompactLine
Name
HD 14i VT
Description
Tandem roller with vibrating roller drum and set of tyres
Exhaust emissions category
EU Stage V / EPA Tier 4
Series
H285
Operating weight, max.
Static linear load, front
Operating weight with ROPS
French classific., data/class
Basic weight no cab, without ROPS
Operating weight with cab
Axle load, rear
Axle load, front
Operating weight, max.
5,250 kg
Static linear load, front
16.3 kg/cm
Operating weight with ROPS
4,050 kg
French classific., data/class
10,6/VT0
Basic weight no cab, without ROPS
3,730 kg
Operating weight with cab
4,300 kg
Axle load, rear
1,795 kg
Axle load, front
2,255 kg
Total width
Total length
Max. working width
Total height with cab
Wheel base
Ground clearance, centre
Turning radius, inside
Total height with ROPS
Height loading, min.
Total width
1,506 mm
Total length
2,965 mm
Max. working width
1,380 mm
Total height with cab
2,720 mm
Wheel base
1,950 mm
Ground clearance, centre
305 mm
Turning radius, inside
2,650 mm
Total height with ROPS
2,590 mm
Height loading, min.
1,820 mm
Drum diameter, front
Drum width, front
Drum type, front
Drum thickness, front
Track offset, right
Track offset, left
Drum diameter, front
898 mm
Drum width, front
1,380 mm
Drum type, front
Smooth/non-split
Drum thickness, front
16 mm
Track offset, right
50 mm
Track offset, left
0 mm
Number of tyres, rear
Size of tyres, rear
Width over tyres, rear
Number of tyres, rear
4
Size of tyres, rear
10.5/80-16
Width over tyres, rear
1,276 mm
Version
Number of cylinders
Emission standard
Exhaust gas after-treatment
Power ISO 14396, rpm
Power ISO 14396, HP
Power ISO 14396, kW
Power SAE J1349, rpm
Power SAE J1349, HP
Power SAE J1349, kW
Version
V2403-CR
Number of cylinders
4
Emission standard
EU Stage V / EPA Tier 4
Exhaust gas after-treatment
DOC-DPF
Power ISO 14396, rpm
2,700 rpm
Power ISO 14396, HP
50.9 HP
Power ISO 14396, kW
37.4 kW
Power SAE J1349, rpm
2,700 rpm
Power SAE J1349, HP
50.1 hp
Power SAE J1349, kW
37.4 kW
Speed, infinitely variable
Climbing ability, without vibration
Climbing ability, with vibration
Speed, infinitely variable
0 - 11,0
Climbing ability, without vibration
40 %
Climbing ability, with vibration
30
Centrifugal force, front, II
Centrifugal force, front, I
Amplitude, front, II
Amplitude, front, I
Vibration frequency, front, II
Vibration frequency, front, I
Centrifugal force, front, II
39 kN
Centrifugal force, front, I
64 kN
Amplitude, front, II
0.31 mm
Amplitude, front, I
0.51 mm
Vibration frequency, front, II
51 Hz
Vibration frequency, front, I
60 Hz
Steering, type
Oscillation angle +/-
Steering, type
Articulated steering
Oscillation angle +/-
8 °
Water sprinkler, type
Fuel tank, capacity
Water tank, capacity
Additive tank, capacity
Water sprinkler, type
Pressure
Fuel tank, capacity
73 l
Water tank, capacity
285 l
Additive tank, capacity
18 l
Fuel tank, capacity
Water tank, capacity
Additive tank, capacity
Fuel tank, capacity
73 l
Water tank, capacity
285 l
Additive tank, capacity
18 l
Acoustic power LW(A), measured
Sound power level L(WA), guaranteed
Acoustic power LW(A), measured
102 db(A)
Sound power level L(WA), guaranteed
106

Equipment

  • 12 V socket
  • CompactLine front suspension eyelet
  • Central water drain
  • Water filtering (triple)
  • Automatic vibration system
  • Track offset, mechanical
  • Mechanical battery isolation switch
  • V-belt protection
  • Drive lever, left and right
  • Operator’s platform with entry from both sides
  • Pressure water sprinkling with interval switch
  • Dashboard cover, lockable and weather-resistant
  • Dashboard with displays, indicator lights and switches
  • 3-point articulation

Optional equipment

  • Plastic scraper, foldable
  • Drum edge lighting
  • Tool kit
  • Additional mirror
  • Bonnet with sound insulation
  • Battery isolating switch
  • Rotating beacon
  • Working lights
  • Telematics system, interface
  • Back-up alarm (reversing)
  • HAMM Temperature Meter (HTM)
  • HCQ compaction meter
  • Thermal aprons
  • Chip spreader
  • Edge pressing and cutting equipment
  • Protective roof
  • Radio
  • Safety belt monitoring device
  • ROPS, foldable
  • ROPS cabin with heating
