Double-deck post screening unit for EVO2 cone and impact crushers

For the cone crusher MOBICONE MCO 90(i) EVO2 and the impact crusher MOBIREX MR 110(i) EVO2, double-deck post screening units for two final products are now available

A double-deck post screening unit increases productivity: the two Kleemann EVO2 crushing plants MOBICONE MCO 90(i) EVO2 and MOBIREX MR 110(i) EVO2 can now classify two final products. Thanks to the integration of the new Kleemann technology, both plants increase the flexibility of operators. The cone crusher MOBICONE MCO 90(i) EVO2 and impact crusher MOBIREX MR 110(i) EVO2 can now produce two classified final grain sizes with a single machine – without a separate screening plant.

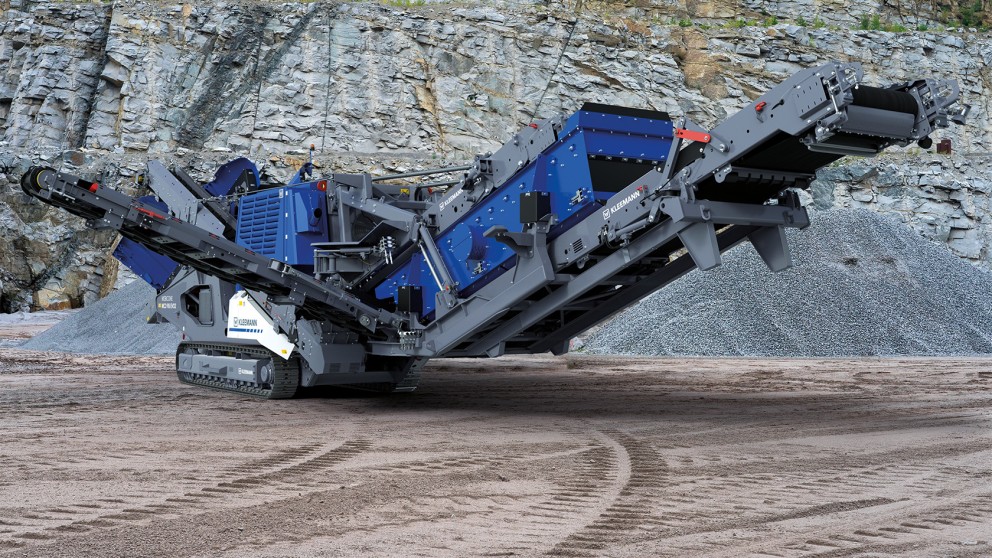

New flexibility with the double-deck classifying screen: the cone crusher MOBICONE MCO 90(i) EVO2 (here in the photo) and the impact crusher MOBIREX MR 110(i) EVO2 can produce and discharge one or two classified final products.

More application flexibility for a Kleemann cone crusher and an impact crusher

The cone crusher MOBICONE MCO 90(i) EVO2 is mainly used in hard stone. The impact crusher MOBIREX MR 110(i) EVO2 is designed for applications in soft and medium-hard stone as well as in recycling. The optionally available double-deck post screening unit also allows both plants to effectively screen grain sizes under 20 mm.

The discharge height of the fine grain conveyor of both Kleemann plants is designed to maximise the height of the stockpile. The return conveyor returns crushed stone that is too coarse back to the crusher unit and thus guarantees a closed material loop. This is another reason why the two plants have a very high product quality.

If an application only requires one classified final grain, the post screening unit can also be used as a single-deck variant.

MOBIREX MR 110(i) EVO2 with wind sifter

For recycling applications, the mobile impact crushing plant MOBIREX MR 110(i) EVO2 can be equipped with an optional wind sifter – or with two for the double-deck post screening unit. They increase quality by removing light-weight contamination such as wood and plastic elements from the material.

Double-deck post screening unit for EVO2 cone and impact crushers

Highlights of the mobile cone crusher MOBICONE MCO 90(i) EVO2

  • Simple and intuitive SPECTIVE control concept
  • Continuous Feed System (CFS) for optimum crusher loading
  • Innovative overload systems for protecting the crusher
  • Efficient and powerful diesel-directdrive D-DRIVE
  • High-performance double-deck post screening unit with oversize grain returning (option)

Double-deck post screening unit for EVO2 cone and impact crushers

Highlights of the mobile impact crusher MOBICONE MCO 110(i) EVO2

  • Optimised material flow as a result of extending system widths
  • Hydraulic gap setting
  • Simple and intuitive SPECTIVE control concept
  • Efficient and powerful diesel-directdrive D-DRIVE
  • High-performance double-deck post screening unit with oversize grain returning (option)
