HD 10i VO Tandem roller with vibration and oscillation drum
2,525 kg
1,000 mm
KUBOTA
Highlights
Technical specifications
- Series
- Name
- Description
- Series
-
- Series
- HD CompactLine
- Name
- HD 10i VO
- Description
- Tandem roller with vibration and oscillation drum
- Series
- H251
- Operating weight with ROPS
- Static linear load, rear
- Static linear load, front
- Max. operating weight
-
- Operating weight with ROPS
- 2.525 kg
- Static linear load, rear
- 13.2
- Static linear load, front
- 12,1 kg/cm
- Max. operating weight
- 3.240 kg
- Total width
- Total length
- Maximum working width
- Centre distance
- Ground clearance, centre
- Turning radius, inside
- Total height with ROPS
- Curb clearance, rear
- Curb clearance, left
-
- Total width
- 1.110 mm
- Total length
- 2.530 mm
- Maximum working width
- 1.050 mm
- Centre distance
- 1.700 mm
- Ground clearance, centre
- 280 mm
- Turning radius, inside
- 2.470 mm
- Total height with ROPS
- 2.475 mm
- Curb clearance, rear
- 570 mm
- Curb clearance, left
- 570 mm
- Drum type, front
- Drum type, rear
- Track offset, right
- Track offset, left
- Drum thickness, rear
- Drum thickness, front
- Drum diameter, rear
- Drum diameter, front
- Drum width, rear
- Drum width, front
-
- Drum type, front
- Smooth/non-split
- Drum type, rear
- Smooth/non-split
- Track offset, right
- 50 mm
- Track offset, left
- 0 mm
- Drum thickness, rear
- 15 mm
- Drum thickness, front
- 15 mm
- Drum diameter, rear
- 720 mm
- Drum diameter, front
- 720 mm
- Drum width, rear
- 1.000 mm
- Drum width, front
- 1.000 mm
- Manufacturer
- Model
- Cylinders, quantity
- Exhaust gas after-treatment
- Power ISO 14396, rpm
- Power ISO 14396, HP
- Power ISO 14396, kW
- Power SAE J1995, rpm
- Power SAE J1995, HP
- Power SAE J1995, kW
- Exhaust emissions category, EU
- Exhaust emissions category, USA
-
- Manufacturer
- KUBOTA
- Model
- D1803-CR-E5B
- Cylinders, quantity
- 3
- Exhaust gas after-treatment
- DOC-DPF
- Power ISO 14396, rpm
- 2.400 rpm
- Power ISO 14396, HP
- 33,4 HP
- Power ISO 14396, kW
- 24,6 kW
- Power SAE J1995, rpm
- 2.400 rpm
- Power SAE J1995, HP
- 33,5 hp
- Power SAE J1995, kW
- 25 kW
- Exhaust emissions category, EU
- EU Stage 5
- Exhaust emissions category, USA
- EPA Tier 4
- Speed, infinitely variable
- Climbing ability, without vibration
- Climbing ability, with vibration
-
- Speed, infinitely variable
- 0 - 10,6
- Climbing ability, without vibration
- 40 %
- Climbing ability, with vibration
- 35
- Oscillation force, rear, II
- Oscillation force, rear, I
- Tangential amplitude, rear, II
- Tangential amplitude, rear, I
- Oscillation frequency, rear, II
- Oscillation frequency, rear, I
-
- Oscillation force, rear, II
- 23 kN
- Oscillation force, rear, I
- 39 kN
- Tangential amplitude, rear, II
- 1,34 mm
- Tangential amplitude, rear, I
- 1,34 mm
- Oscillation frequency, rear, II
- 29 Hz
- Oscillation frequency, rear, I
- 38 Hz
- Centrifugal force, front, II
- Centrifugal force, front, I
- Amplitude, front, II
- Amplitude, front, I
- Vibration frequency, front, II
- Vibration frequency, front, I
-
- Centrifugal force, front, II
- 26 kN
- Centrifugal force, front, I
- 43 kN
- Amplitude, front, II
- 0,45 mm
- Amplitude, front, I
- 0,45 mm
- Vibration frequency, front, II
- 51 Hz
- Vibration frequency, front, I
- 65 Hz
- Steering, type
- Oscillation angle +/-
-
- Steering, type
- Articulated steering
- Oscillation angle +/-
- 8 °
- Water sprinkling, type
-
- Water sprinkling, type
- Pressure
- Fuel tank, capacity
- Water tank, capacity
-
- Fuel tank, capacity
- 42 l
- Water tank, capacity
- 180 l
- Acoustic power LW(A), measured
- Sound power level L(WA), guaranteed
-
- Acoustic power LW(A), measured
- 102 db(A)
- Sound power level L(WA), guaranteed
- 106
Related products
HD 10i VV
Tandem roller with two vibration drums
| Weight | 2,475 kg |
| Drum width | 1,000 mm |
| Manufacturer | KUBOTA |

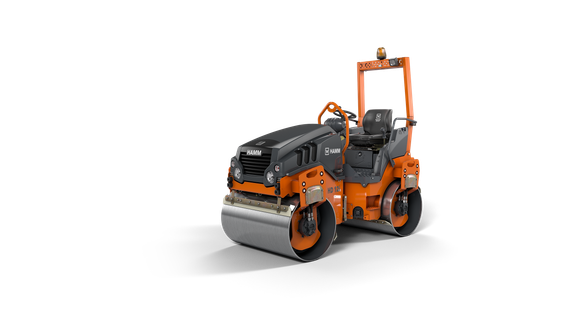

HD 12i VV
Tandem roller with two vibration drums
| Weight | 2,695 kg |
| Drum width | 1,200 mm |
| Manufacturer | KUBOTA |

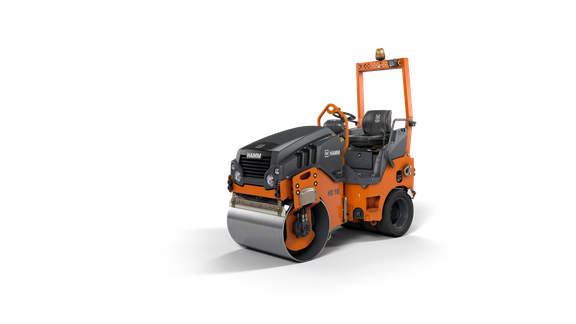

HD 10i VT
Tandem roller with vibration drum and set of wheels
| Weight | 2,385 kg |
| Drum width | 1,000 mm |
| Manufacturer | KUBOTA |

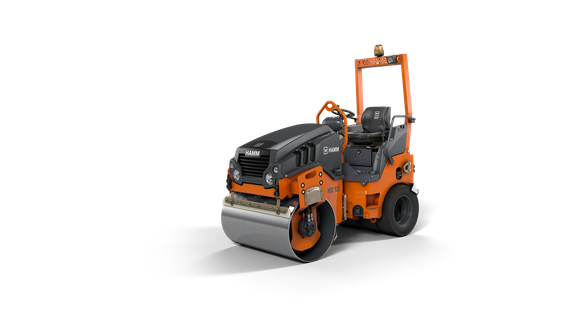

HD 12i VT
