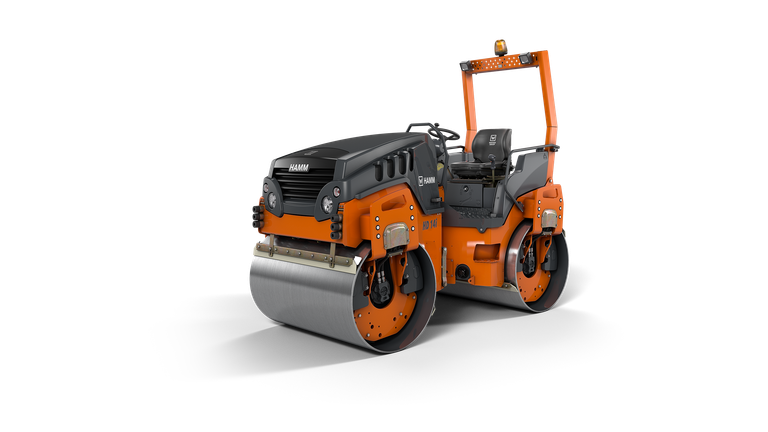

Tandem roller with two vibrating roller drums HD 14i VV

HD 14i VV Tandem roller with two vibrating roller drums

EU Stage V / EPA Tier 4

4685 kg

1380 mm

  • Simple, intuitive and language-neutral operation
  • Easy transport, simple loading
  • Ergonomic driver platform
  • Excellent view of the drum edges, the machine and the construction site surroundings
  • Compact dimensions
Show less

3-point articulation

3-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.

Learn more

Technical specifications

Series
Name
Description
Exhaust emissions category
Series
Series
HD CompactLine
Name
HD 14i VV
Description
Tandem roller with two vibrating roller drums
Exhaust emissions category
EU Stage V / EPA Tier 4
Series
H285
Operating weight, max.
Operating weight with ROPS
French classific., data/class
Basic weight no cab, without ROPS
Operating weight with cab
Static linear load, front
Axle load, rear
Axle load, front
Operating weight, max.
5,630 kg
Operating weight with ROPS
4,435 kg
French classific., data/class
10,6/VT0
Basic weight no cab, without ROPS
4,115 kg
Operating weight with cab
4,685 kg
Static linear load, front
16.3 kg/cm
Axle load, rear
2,180 kg
Axle load, front
2,255 kg
Total width
Total length
Max. working width
Total height with cab
Wheel base
Ground clearance, centre
Turning radius, inside
Total height with ROPS
Height loading, min.
Total width
1,506 mm
Total length
2,965 mm
Max. working width
1,430 mm
Total height with cab
2,720 mm
Wheel base
1,950 mm
Ground clearance, centre
305 mm
Turning radius, inside
2,650 mm
Total height with ROPS
2,590 mm
Height loading, min.
1,820 mm
Track offset, right
Track offset, left
Drum thickness, rear
Drum thickness, front
Drum diameter, rear
Drum diameter, front
Drum width, rear
Drum width, front
Track offset, right
50 mm
Track offset, left
0 mm
Drum thickness, rear
16 mm
Drum thickness, front
16 mm
Drum diameter, rear
898 mm
Drum diameter, front
898 mm
Drum width, rear
1,380 mm
Drum width, front
1,380 mm
Version
Number of cylinders
Emission standard
Exhaust gas after-treatment
Power ISO 14396, rpm
Power ISO 14396, HP
Power ISO 14396, kW
Power SAE J1995, rpm
Power SAE J1995, HP
Power SAE J1995, kW
Version
V2403-CR
Number of cylinders
4
Emission standard
EU Stage V / EPA Tier 4
Exhaust gas after-treatment
DOC-DPF
Power ISO 14396, rpm
2,700 rpm
Power ISO 14396, HP
50.9 HP
Power ISO 14396, kW
37.4 kW
Power SAE J1995, rpm
2,700 rpm
Power SAE J1995, HP
50.1 hp
Power SAE J1995, kW
37.4 kW
Speed, infinitely variable
Climbing ability, without vibration
Climbing ability, with vibration
Speed, infinitely variable
0 - 11,0
Climbing ability, without vibration
40 %
Climbing ability, with vibration
30
Centrifugal force, rear, II
Centrifugal force, rear, I
Centrifugal force, front, II
Centrifugal force, front, I
Amplitude, front, II
Amplitude, front, I
Vibration frequency, rear, II
Vibration frequency, rear, I
Vibration frequency, front, II
Vibration frequency, front, I
Amplitude, rear, II
Amplitude, rear, I
Centrifugal force, rear, II
39 kN
Centrifugal force, rear, I
64 kN
Centrifugal force, front, II
39 kN
Centrifugal force, front, I
64 kN
Amplitude, front, II
0.31 mm
Amplitude, front, I
0.51 mm
Vibration frequency, rear, II
51 Hz
Vibration frequency, rear, I
60 Hz
Vibration frequency, front, II
51 Hz
Vibration frequency, front, I
60 Hz
Amplitude, rear, II
0.31 mm
Amplitude, rear, I
0.51 mm
Oscillation angle +/-
Oscillation angle +/-
8 °
Fuel tank, capacity
Water tank, capacity
Fuel tank, capacity
73 l
Water tank, capacity
285 l
Fuel tank, capacity
Water tank, capacity
Fuel tank, capacity
73 l
Water tank, capacity
285 l
Acoustic power LW(A), measured
Acoustic power LW(A), sticker
Acoustic power LW(A), measured
102 db(A)
Acoustic power LW(A), sticker
104

Equipment

  • 12 V socket
  • 3-point articulation
  • Dashboard with displays, indicator lights and switches
  • Dashboard cover, lockable and weather-resistant
  • Pressure water sprinkling with interval switch
  • Operator’s platform with entry from both sides
  • Drive lever, left and right
  • V-belt protection
  • Mechanical battery isolation switch
  • Track offset, mechanical
  • Automatic vibration system
  • Water filtering (triple)
  • Central water drain

Optional equipment

  • Plastic scraper, foldable
  • ROPS cabin with heating
  • Safety belt monitoring device
  • Protective roof
  • Edge pressing and cutting equipment
  • HCQ compaction meter
  • HAMM Temperature Meter (HTM)
  • Back-up alarm (reversing)
  • Telematics system, interface
  • Working lights
  • Rotating beacon
  • Additional mirror
