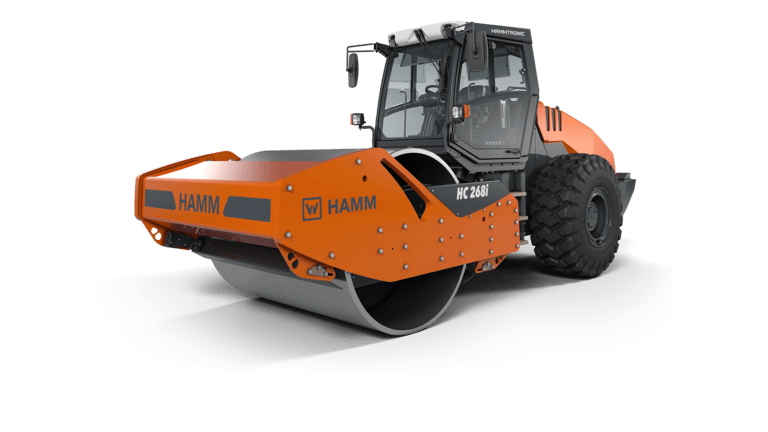

HC 268i Compactor with smooth drum
24,990 kg
2,140 mm
MEE IV
Technical specifications
- Series
- Name
- Description
- Exhaust emissions category
- Series
-
- Series
- HC
- Name
- HC 268i
- Description
- Compactor with smooth drum
- Exhaust emissions category
- MEE IV
- Series
- H260
- Static linear load, front
- Operating weight with cab
- Axle load, rear
- Axle load, front
-
- Static linear load, front
- 64.8 kg/cm
- Operating weight with cab
- 24,990 kg
- Axle load, rear
- 11,115 kg
- Axle load, front
- 13,875 kg
- Total width
- Total length
- Maximum working width
- Centre distance
- Ground clearance, centre
- Turning radius, inside
- Total height
- Slope angle, rear
- Slope angle, front
-
- Total width
- 2,350 mm
- Total length
- 6,847 mm
- Maximum working width
- 2,140 mm
- Centre distance
- 3,433 mm
- Ground clearance, centre
- 441 mm
- Turning radius, inside
- 5,159 mm
- Total height
- 3,301 mm
- Slope angle, rear
- 29 °
- Slope angle, front
- 35 °
- Drum diameter, front
- Drum width, front
- Drum type, front
- Drum thickness, front
-
- Drum diameter, front
- 1,600 mm
- Drum width, front
- 2,140 mm
- Drum type, front
- Smooth
- Drum thickness, front
- 45 mm
- Tyre size, rear
- Width over tyres, rear
-
- Tyre size, rear
- EM 23.5-R25 PR
- Width over tyres, rear
- 2,235 mm
- Manufacturer
- Model
- Cylinders, quantity
- Exhaust emission standard
- Exhaust gas after-treatment
- Power ISO 14396, rpm
- Power ISO 14396, HP
- Power ISO 14396, kW
- Power SAE J1349, rpm
- Power SAE J1349, HP
- Power SAE J1349, kW
-
- Manufacturer
- CUMMINS
- Model
- B5.9CS4 210C
- Cylinders, quantity
- 6
- Exhaust emission standard
- MEE IV
- Exhaust gas after-treatment
- DOC-DPF
- Power ISO 14396, rpm
- 2,200 rpm
- Power ISO 14396, HP
- 209 HP
- Power ISO 14396, kW
- 154 kW
- Power SAE J1349, rpm
- 2,200 rpm
- Power SAE J1349, HP
- 206 hp
- Power SAE J1349, kW
- 154 kW
- Speed, infinitely variable
- Climbing ability, without vibration
-
- Speed, infinitely variable
- 0-11,8
- Climbing ability, without vibration
- 24 %
- Centrifugal force, front, II
- Centrifugal force, front, I
- Amplitude, front, II
- Amplitude, front, I
- Vibration frequency, front, II
- Vibration frequency, front, I
-
- Centrifugal force, front, II
- 242 kN
- Centrifugal force, front, I
- 331 kN
- Amplitude, front, II
- 1.2 mm
- Amplitude, front, I
- 2.02 mm
- Vibration frequency, front, II
- 30 Hz
- Vibration frequency, front, I
- 27 Hz
- Steering, type
- Oscillation angle +/-
-
- Steering, type
- Articulated steering
- Oscillation angle +/-
- 10 °
- Fuel tank, capacity
-
- Fuel tank, capacity
- 321 l
Related products
HC 208i
Compactor with smooth drum
| Weight | 19,845 kg |
| Drum width | 2,140 mm |
| Exhaust emissions category | MEE IV |

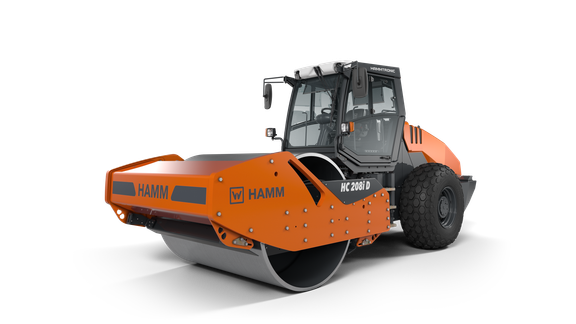

HC 208i D
