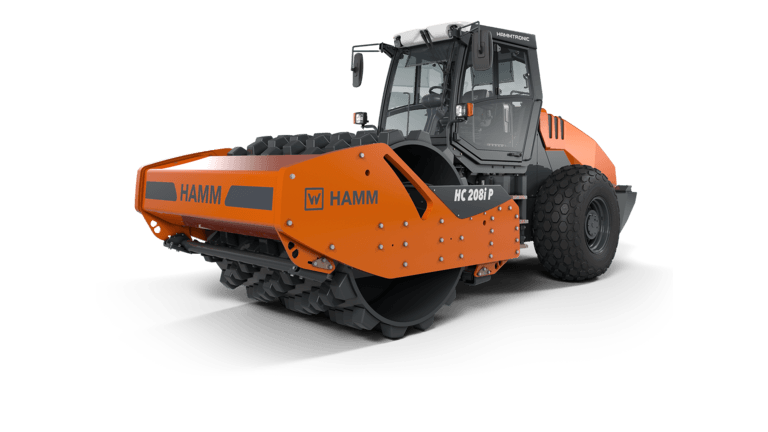

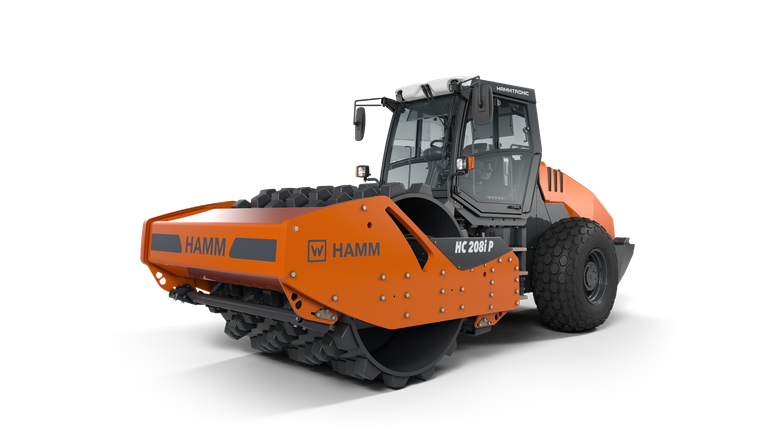

Compactor with padfoot drum HC 208i P

HC 208i P Compactor with padfoot drum

20,720 kg

2,140 mm

MEE IV

  • High compaction performance
  • Ergonomic driver platform
  • Simple, intuitive and language-neutral operation
  • 3-point articulation for outstanding traction and off-road mobility
  • Excellent view of the machine and the construction site
  • Electronic machine management Hammtronic
  • Easy maintenance and servicing
Show less

3-point articulation

3-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.

Learn more

HAMMTRONIC

HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, thereby increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programmes (for DV+ series only), guaranteeing even, smooth movement of both drums.

Learn more

Technical specifications

Series
Name
Description
Exhaust emissions category
Series
Series
HC
Name
HC 208i P
Description
Compactor with padfoot drum
Exhaust emissions category
MEE IV
Series
H260
Static linear load, front
Operating weight with cab
Axle load, rear
Axle load, front
Static linear load, front
61 kg/cm
Operating weight with cab
20,720 kg
Axle load, rear
7,670 kg
Axle load, front
13,050 kg
Total width
Total length
Maximum working width
Centre distance
Ground clearance, centre
Turning radius, inside
Total height
Slope angle, rear
Slope angle, front
Total width
2,350 mm
Total length
6,847 mm
Maximum working width
2,140 mm
Centre distance
3,433 mm
Ground clearance, centre
441 mm
Turning radius, inside
5,159 mm
Total height
3,301 mm
Slope angle, rear
29 °
Slope angle, front
35 °
Drum diameter, front
Drum width, front
Padfeet, quantity
Height of the padfeet
Drum type, front
Drum thickness, front
Drum diameter, front
1,680 mm
Drum width, front
2,140 mm
Padfeet, quantity
130
Height of the padfeet
100 mm
Drum type, front
Padfoot
Drum thickness, front
30 mm
Tyre size, rear
Width over tyres, rear
Tyre size, rear
AW 23.1-26 12 PR
Width over tyres, rear
2,235 mm
Manufacturer
Model
Cylinders, quantity
Exhaust emission standard
Exhaust gas after-treatment
Power ISO 14396, rpm
Power ISO 14396, HP
Power ISO 14396, kW
Power SAE J1349, rpm
Power SAE J1349, HP
Power SAE J1349, kW
Manufacturer
CUMMINS
Model
B5.9CS4 210C
Cylinders, quantity
6
Exhaust emission standard
MEE IV
Exhaust gas after-treatment
DOC-DPF
Power ISO 14396, rpm
2,200 rpm
Power ISO 14396, HP
209 HP
Power ISO 14396, kW
154 kW
Power SAE J1349, rpm
2,200 rpm
Power SAE J1349, HP
206 hp
Power SAE J1349, kW
154 kW
Speed, infinitely variable
Climbing ability, without vibration
Speed, infinitely variable
0-12,2
Climbing ability, without vibration
61 %
Centrifugal force, front, II
Centrifugal force, front, I
Amplitude, front, II
Amplitude, front, I
Vibration frequency, front, II
Vibration frequency, front, I
Centrifugal force, front, II
242 kN
Centrifugal force, front, I
331 kN
Amplitude, front, II
1.1 mm
Amplitude, front, I
1.85 mm
Vibration frequency, front, II
30 Hz
Vibration frequency, front, I
27 Hz
Steering, type
Oscillation angle +/-
Steering, type
Articulated steering
Oscillation angle +/-
10 °
Fuel tank, capacity
Fuel tank, capacity
321 l

Equipment

  • Dashboard with displays, indicator lights and switches
  • Driver's platform with access on one side
  • Vibration-isolated driver's platform
  • Seat length adjustment
  • 1 drive lever
  • ECO mode
  • Tiltable engine hood
  • Hydrostatic steering
  • 3-point articulation
  • Adjustable scraper
  • Plastic protective roof, reinforced with fibre glass and folding

Optional equipment

  • Cab with air-conditioning system, without heating
  • HAMM Compaction Meter (HCM)
  • Back-up alarm
  • Working spotlights
  • Rotating beacon
  • Tool kit

Related products

All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
