NEW

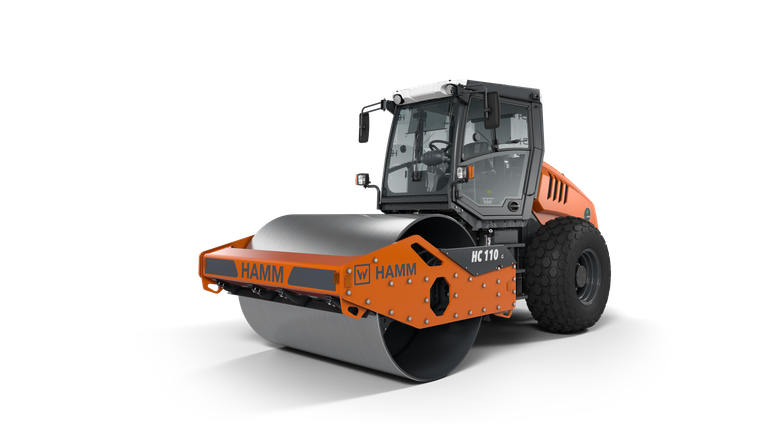

HC 110 Compactor with smooth drum
11,595 kg
2,140 mm
EU Stage IIIA / EPA Tier 3
3-point articulation
3-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
Technical specifications
- Series
- Name
- Description
- Exhaust emissions category
- Series
-
- Series
- HC
- Name
- HC 110
- Description
- Compactor with smooth drum
- Exhaust emissions category
- EU Stage IIIA / EPA Tier 3
- Series
- H294
- Static linear load, front
- Operating weight with ROPS
- Empty weight without cab, without ROPS
- Operating weight with cab
- Axle load, rear
- Axle load, front
-
- Static linear load, front
- 29.81 kg/cm
- Operating weight with ROPS
- 11,265 kg
- Empty weight without cab, without ROPS
- 10,620 kg
- Operating weight with cab
- 11,595 kg
- Axle load, rear
- 5,215 kg
- Axle load, front
- 6,380 kg
- Total width
- Total length
- Maximum working width
- Total height with cab
- Centre distance
- Ground clearance, centre
- Turning radius, inside
- Slope angle, rear
- Slope angle, front
-
- Total width
- 2,271 mm
- Total length
- 5,989 mm
- Maximum working width
- 2,140 mm
- Total height with cab
- 3,030 mm
- Centre distance
- 2,992 mm
- Ground clearance, centre
- 448 mm
- Turning radius, inside
- 3,883 mm
- Slope angle, rear
- 27 °
- Slope angle, front
- 40.6 °
- Drum diameter, front
- Drum width, front
- Drum type, front
- Drum thickness, front
-
- Drum diameter, front
- 1,504 mm
- Drum width, front
- 2,140 mm
- Drum type, front
- Smooth
- Drum thickness, front
- 25 mm
- Number of tyres, rear
- Tyre size, rear
- Width over tyres, rear
-
- Number of tyres, rear
- 2
- Tyre size, rear
- AW 23.1-26 8 PR
- Width over tyres, rear
- 2,140 mm
- Manufacturer
- Model
- Cylinders, quantity
- Exhaust emission standard
- Power SAE J1995, rpm
- Power SAE J1995, HP
- Power SAE J1995, kW
- Exhaust emissions category, Brazil
-
- Manufacturer
- JOHN DEERE
- Model
- JDPS 4045PTE
- Cylinders, quantity
- 4
- Exhaust emission standard
- EU Stage IIIA / EPA Tier 3
- Power SAE J1995, rpm
- 2,000 rpm
- Power SAE J1995, HP
- 135.4 hp
- Power SAE J1995, kW
- 101 kW
- Exhaust emissions category, Brazil
- MAR-I
- Speed, transport gear
- Climbing ability, without vibration
- Speed, working gear, I
-
- Speed, transport gear
- 0-11,1
- Climbing ability, without vibration
- 58 %
- Speed, working gear, I
- 0-8,5
- Centrifugal force, front, II
- Centrifugal force, front, I
- Amplitude, front, II
- Amplitude, front, I
- Vibration frequency, front, II
- Vibration frequency, front, I
-
- Centrifugal force, front, II
- 145 kN
- Centrifugal force, front, I
- 250 kN
- Amplitude, front, II
- 0.85 mm
- Amplitude, front, I
- 1.95 mm
- Vibration frequency, front, II
- 35 Hz
- Vibration frequency, front, I
- 30 Hz
- Steering, type
-
- Steering, type
- Articulated steering
- Fuel tank, capacity
-
- Fuel tank, capacity
- 270 l
