NEW

SP 33

EU Stage 3a/US EPA Tier 3

0 - 300 mm

2,200

High-Quality Paving of a Wide Range of Monolithic Profiles

The compact slipform paver can pave a wide range of monolithic concrete profiles such as curbs, curb-gutter profiles, rectangular profiles, concrete safety barriers up to a height of 1.3 m, drainage channels, and gutter profiles.

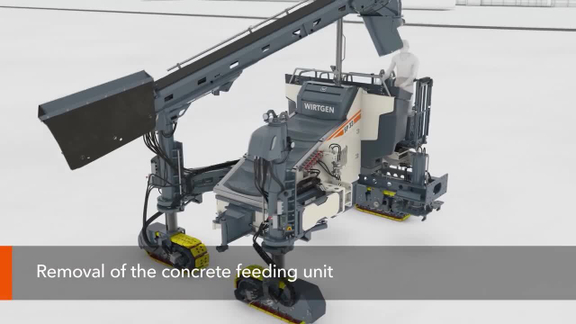

In the offset configuration, concrete surfaces up to a paving width of 2.2 m can also be realized in combination with a Trimmer with a width of up to 2.44 m – even slabs with a paving width of up to 3.0 m can be realized in crosspave configuration without a Trimmer.
The slipform paver is ideal for construction sites where a high degree of maneuverability, tight radii and maximum flexibility are required.
Two crawler units with parallelogram swing legs at the front and a laterally adjustable crawler unit at the rear enable zero-clearance paving and maximum flexibility.
The machine can be precisely controlled via stringline scanning, without a stringline using WIRTGEN AutoPilot 2.0, or with third-party 3D applications.

Show less

Technical specifications

Exhaust emissions category

Number of track units

Layer thickness

Displacement

Hydraulic height adjustment

Max. mould width

Max. mould height

Height adjustment, mechanical

Rated power

Lateral adjustment of mould

Travel speed max.

Exhaust emissions category: EU Stage 3a/US EPA Tier 3

Number of track units: 3

Layer thickness: 0 - 300 mm

Displacement: 4.04 l

Hydraulic height adjustment: 1,000 mm

Max. mould width: 2,200 mm

Max. mould height: 1,300 mm

Height adjustment, mechanical: 280 mm

Rated power: 92 kW / 125 HP 2,100 rpm

Lateral adjustment of mould: 1,200 mm

Travel speed max.: 35 m/min

Downloads

News & Job reports

The Wirtgen SP 33 demonstrated its flexibility and paved an agricultural track path and a kerb and gutter profile on two projects in Austria within one week.

SP 33 demonstrates its flexibility in Austria

The SP 33 enables concrete paving in offset and Crosspave modes

Wirtgen SP 33

All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
