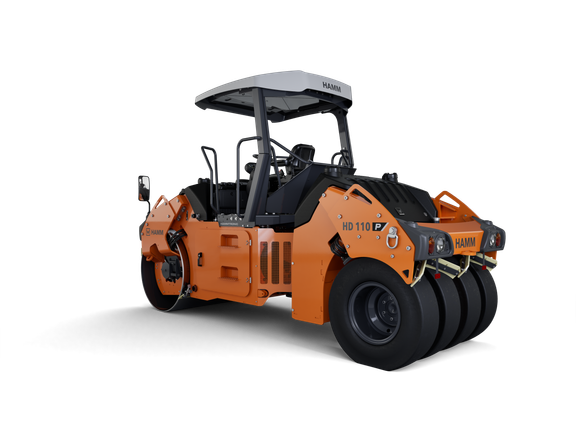

HD 110 P VT Tandem roller with two vibration drums
9,950 kg
1,680 mm
CUMMINS
Technical specifications
- Series
- Name
- Description
- Series
-
- Series
- HD
- Name
- HD 110 P VT
- Description
- Tandem roller with two vibration drums
- Series
- H296
- Static linear load, front
- Operating weight with ROPS
- Empty weight without cab, without ROPS
- Operating weight with cab
- Axle load, rear
- Axle load, front
- Max. operating weight
-
- Static linear load, front
- 31.37 kg/cm
- Operating weight with ROPS
- 9,730 kg
- Empty weight without cab, without ROPS
- 8,895 kg
- Operating weight with cab
- 9,950 kg
- Axle load, rear
- 4,680 kg
- Axle load, front
- 5,270 kg
- Max. operating weight
- 10,610 kg
- Total length
- Total width with cab
- Maximum working width
- Total height with cab
- Centre distance
- Ground clearance, centre
- Turning radius, inside
- Total height with ROPS
-
- Total length
- 4,954 mm
- Total width with cab
- 1,807 mm
- Maximum working width
- 1,811 mm
- Total height with cab
- 2,972 mm
- Centre distance
- 3,699 mm
- Ground clearance, centre
- 337 mm
- Turning radius, inside
- 5,876 mm
- Total height with ROPS
- 3,097 mm
- Drum diameter, front
- Drum width, front
- Number of tyres, rear
- Tyre size, rear
- Width over tyres, rear
- Drum type, front
- Drum thickness, front
- Track offset, left
-
- Drum diameter, front
- 1,200 mm
- Drum width, front
- 1,680 mm
- Number of tyres, rear
- 4
- Tyre size, rear
- 11.00-20
- Width over tyres, rear
- 1,602 mm
- Drum type, front
- Smooth/non-split
- Drum thickness, front
- 22 mm
- Track offset, left
- 170 mm
- Number of tyres, rear
- Tyre size, rear
- Width over tyres, rear
-
- Number of tyres, rear
- 4
- Tyre size, rear
- 11.00-20
- Width over tyres, rear
- 1,602 mm
- Manufacturer
- Model
- Cylinders, quantity
- Power ISO 14396, rpm
- Power ISO 14396, HP
- Power ISO 14396, kW
- Power SAE J1349, rpm
- Power SAE J1349, HP
- Power SAE J1349, kW
- Exhaust emissions category, Brazil
-
- Manufacturer
- CUMMINS
- Model
- QSB3.9-C130-32
- Cylinders, quantity
- 4
- Power ISO 14396, rpm
- 2,500 rpm
- Power ISO 14396, HP
- 132 HP
- Power ISO 14396, kW
- 97 kW
- Power SAE J1349, rpm
- 2,500 rpm
- Power SAE J1349, HP
- 130 hp
- Power SAE J1349, kW
- 97 kW
- Exhaust emissions category, Brazil
- MAR 1
- Regulation, infinitely variable
- Speed, infinitely variable
- Climbing ability, without vibration
-
- Regulation, infinitely variable
- HAMMTRONIC
- Speed, infinitely variable
- 0 - 11,3
- Climbing ability, without vibration
- 53 %
- Centrifugal force, front, II
- Centrifugal force, front, I
- Amplitude, front, II
- Amplitude, front, I
- Vibration frequency, front, II
- Vibration frequency, front, I
-
- Centrifugal force, front, II
- 99 kN
- Centrifugal force, front, I
- 120 kN
- Amplitude, front, II
- 0.49 mm
- Amplitude, front, I
- 0.86 mm
- Vibration frequency, front, II
- 50 Hz
- Vibration frequency, front, I
- 42 Hz
- Steering, type
-
- Steering, type
- Articulated steering
- Water sprinkling, type
-
- Water sprinkling, type
- Pressure
- Fuel tank, capacity
- Water tank, capacity
- Additive tank, capacity
-
- Fuel tank, capacity
- 173 l
- Water tank, capacity
- 760 l
- Additive tank, capacity
- 22 l
Downloads
Related products

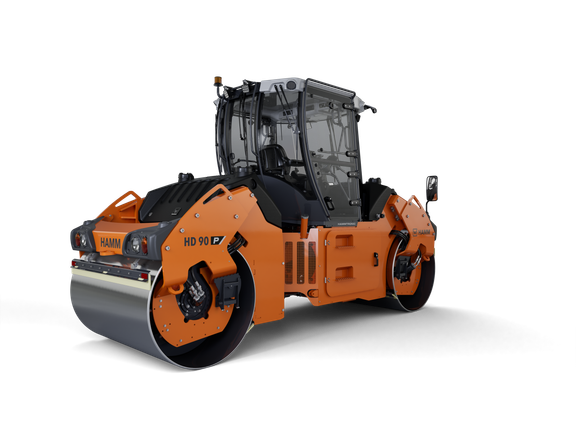

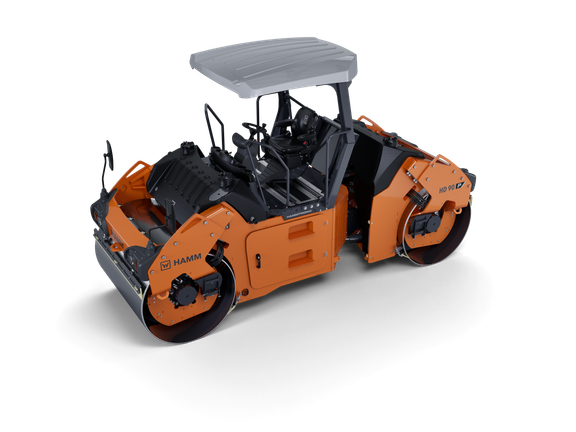

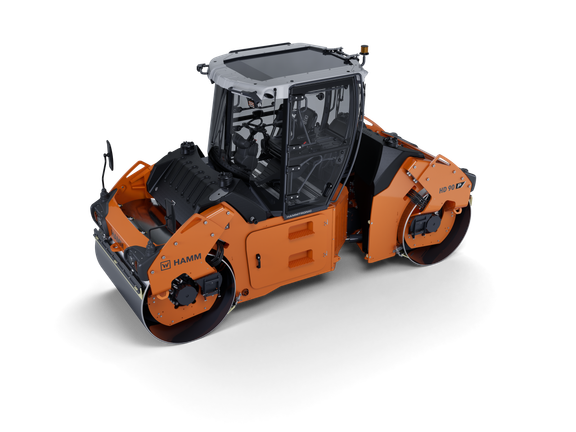

HD 90 P VV
