Wheeled paver Universal Class SUPER 1703-3

SUPER 1703-3 Wheeled paver Universal Class

2.59

m

5.95

m

700

t/h

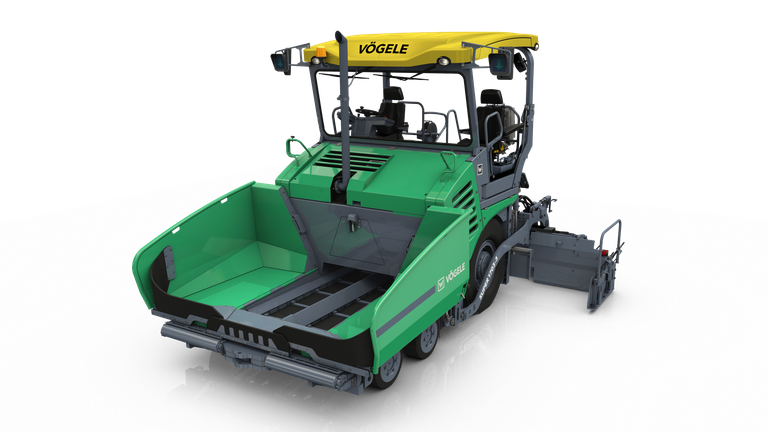

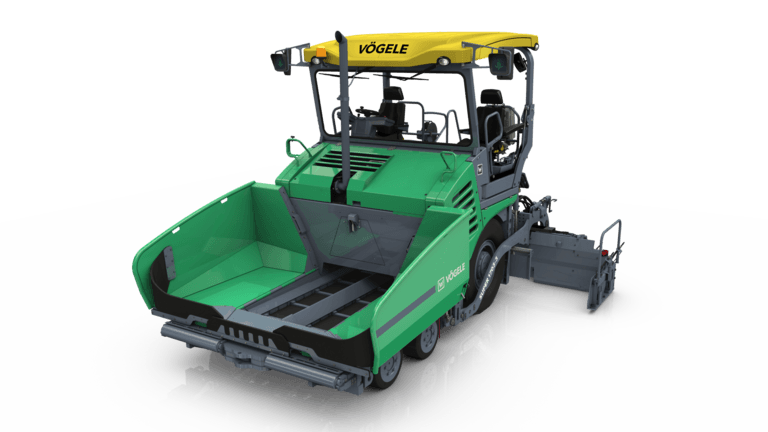

The compact-sized wheeled paver in the 8-foot-class

The wheeled SUPER 1703-3 paver has been specially designed for the requirements of the North American and Australian market. The 8-foot class wheeled paver is an all-rounder and with great mobility. The paver is highly manoeuvrable thanks to its compact dimensions and the new Pivot Steer steering brake, making it suitable for numerous applications. VÖGELE's ErgoPlus 3 operating concept makes paver operation easier and safer than ever before.

Weniger anzeigen
The highlights of the SUPER 1703-3
Range of applications
Drive concept
Power transmission
Turning circle
Feed with mix
Operating system
Extending screed
Tolles Produkt

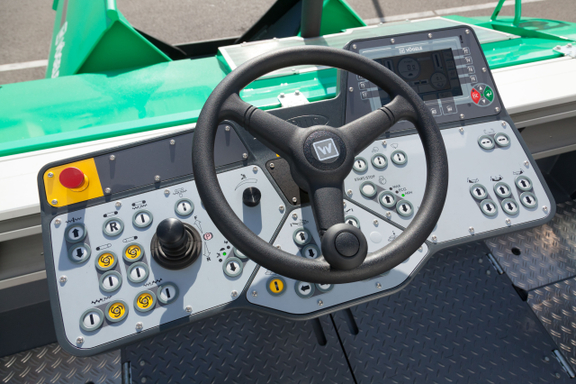

ErgoPlus 3

Even the very best machine with the most advanced technology can only really show its strengths if it can be operated easily and as intuitively as possible. At the same time, it should offer an ergonomic and safe working environment for the operating team. Therefore, the ErgoPlus 3 operating concept focuses on the operator.

More
Tolles Produkt

VÖGELE EcoPlus

The philosophy behind the machine concept of the Premium Line road pavers is "Lower consumption – lower emissions – lower costs". The VÖGELE EcoPlus low-emissions package combines a number of individual measures to reduce the fuel consumption and noise levels to a significant extent.

More
Tolles Produkt

AutoSet Plus

With AutoSet Plus, we have enhanced the efficiency, the convenience and thus the quality of key job site processes. AutoSet Plus has two handy automatic functions.

The two functions of AutoSet Plus automate routine tasks, allowing work processes to be carried out more quickly and with greater control. This in turn means that construction projects can be completed faster and more reliably.

More
Tolles Produkt

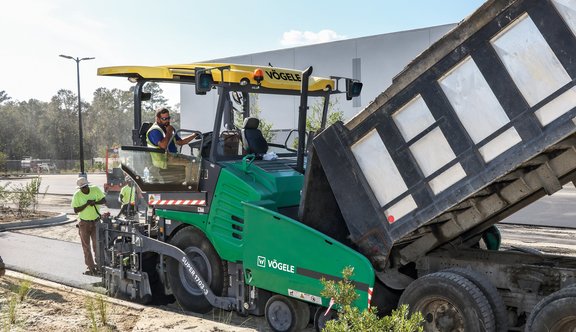

PaveDock and PaveDock Assistant

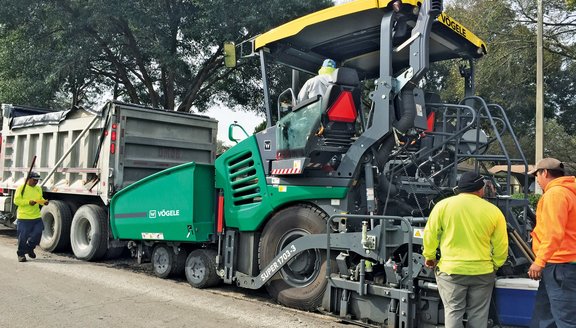

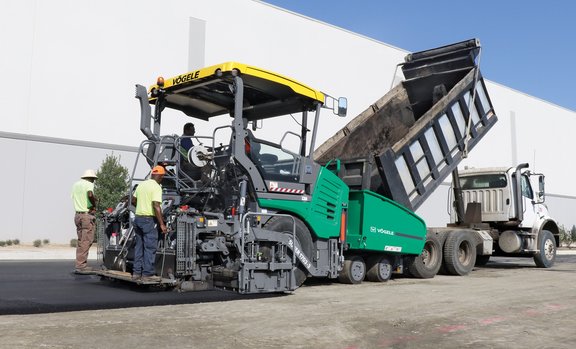

A constant supply of mix is essential for producing a level, high-quality pavement. That's why VÖGELE developed the PaveDock Assistant for their “Dash 3” generation of pavers. This exceedingly efficient system greatly facilitates communication between the paver operator and the driver of the feed vehicle, and it ensures that the mix is supplied to the paver safely and without jolts. Used in combination with the PaveDock push-rollers, PaveDock Assistant contributes greatly to process safety during the transfer of the mix.

More
Tolles Produkt

Pivot Steer – the steering brake

The new standard Pivot Steer function makes the SUPER wheeled pavers almost as nimble as the tracked pavers: a minimal inner turning circle enables the machines to turn virtually on the spot. This is a huge advantage, particularly on cramped job sites, such as those found in urban environments.

More

Technical specifications

Engine
Manufacturer
Type
Nominal output
ECO mode output
Exhaust emissions standard
Fuel tank
Engine
liquid-cooled 4-cylinder diesel engine
Manufacturer
Cummins
Type
QSB4.5 C155
Nominal output
116 kW / 2000 U/min
ECO mode output
106 kW / 1700 U/min
Exhaust emissions standard
European exhaust emissions standard 3a, US standard EPA Tier 3
Fuel tank
215 l
Front wheels
Tyre equipment
Tyre size, front wheels
Rear wheels
Tyre size, rear wheels
Traction drive
Standard
Option
Speeds
Pave speed (up to)
Travel speed (up to)
Steering
Outside turning circle
Outside turning circle
Brakes
Service brake
Parking brake
Auxiliary brake
Front wheels
4, mounted on bogies
Tyre equipment
Solid tyres
Tyre size, front wheels
540/300–390
Rear wheels
2, pneumatic, tubeless
Tyre size, rear wheels
14.00 R25
Traction drive
separate hydraulic drives
Standard
2 rear and 2 front wheels (6x4)
Option
2 rear and 4 front wheels (6x6)
Pave speed (up to)
76 m/min
Travel speed (up to)
20 km/h
Steering
hydraulic-assisted
Outside turning circle
6.5 m
Outside turning circle
3.5 m
Service brake
generously-dimensioned multiple-disk brakes operated by foot pedal, maintenance-free
Parking brake
spring-loaded multiple-disk brake, maintenance-free
Auxiliary brake
hydrostatic brake
Width
Feed height (bottom of material hopper)
Push-rollers
Standard
Positions
Hopper capacity
Width
3,265 mm
Feed height (bottom of material hopper)
615 mm
Standard
oscillating
Positions
can be adjusted in a forward direction by 75 mm or 150 mm
Hopper capacity
13 t
Conveyors
Conveyors
Version
Drive
Speed
Augers
Augers
Version
Diameter
Speed
Drive
Height
Standard height
Lubrication
Conveyors
2
Version
with replaceable feeder bars, direction of conveyor temporarily reversible
Drive
separate hydraulic drives, proportional control
Speed
34 m/min
Augers
2
Version
with replaceable auger blades, auger rotation reversible
Diameter
400 mm
Speed
120 U/min
Drive
separate hydraulic drives, proportional control
Height
infinitely variable
Standard height
hydraulically adjustable by 15 cm
Lubrication
centralized lubrication system, electrically-driven grease pump
Layer thickness (up to)
Heating
Power Supply
Screed
Layer thickness (up to)
30 cm
Heating
electric, thermostat-controlled
Power Supply
Three-phase AC generator
Screed
Type Basic width Maximum width Compacting systems
VF 500 2.45 m 5.95 m V
Length
Operating weight
Maximum laydown rate
Length
Screed Total length
VF 500 5.96 m
Operating weight
Screed Total weight
VF 500 17,250 kg
Maximum laydown rate
700 t/h
