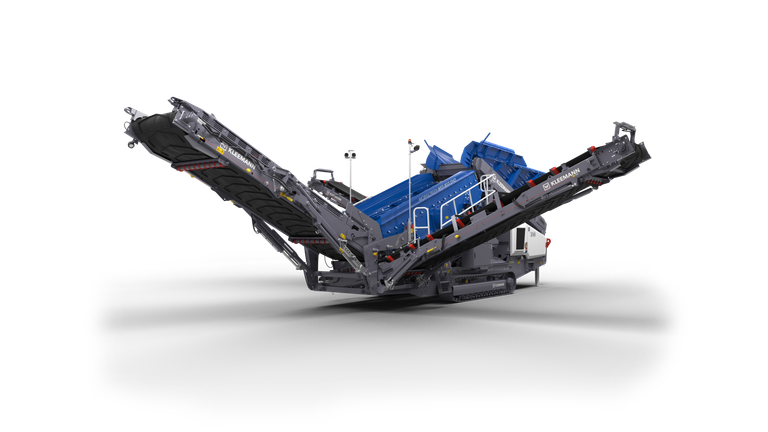

Mobile scalping screen plant MSS 802i EVO

MSS 802i EVO Mobile scalping screen plant

Diesel-hydraulic

800 mm x 500 mm x 300 mm

500

t/h

Properties

Changing work sites and new applications often create challenges for screening plants. The mobile screen for coarse elements MOBISCREEN MSS 802 EVO is ideally prepared for this. The large range of screen surfaces and the simple setting of screening parameters make it possible to adapt the MSS 802 EVO easily to new application conditions.

  • Mobile double-deck screening unit
  • Diesel-hydraulic drive
  • Screen for coarse elements
  • Maximum feed size 500 mm
Show less
Highlights

Flexibility, operability and ergonomics: the mobile screen for coarse elements MOBISCREEN MSS 802(i) EVO

Feed hopper
Control system
Drive
Screen
Material flow
Transport & Setup
Safety & Ergonomics
Environment

Scalping screens

Good preparation before the crushing process

Scalping screens are designed such that they can sort material even before the first crushing stage. For this purpose, different screening plant versions are available with different screen casing sizes as double-deck screening plants.

Depending on the plant, feed material can have a feed size of up to 500 mm. Thanks to their compact dimensions, the plants are easy to relocate and transport.

Recommended use

Scalping screen for screening all stone types and residual construction materials > double-deck screens for classifying up to 3 fractions

Extensive range of coarse screen surfaces

Feed capacity of 200 t/h up to 500 t/h

Screen surfaces

The matching screen surfaces for optimum results

During the daily routine, screen surfaces are really put to the test. To guarantee long-term, reliable screening to the desired final grain size, the screen surfaces from KLEEMANN are made of particularly wear-resistant spring wire steel or round wire.

Thanks to the double-anchoring at the crossings, they have a high mesh stability for uniform screening. The screening result itself is determined by numerous factors. The most important influence factors include the grain shape, the humidity content and the feed volume.

Everything at a glance with WITOS®

The WITOS FleetView telematics system provides support for efficient fleet and service management. It provides information on the operating status of the machine independently of the location and time. Even users with only one machine benefit from WITOS.

From support for maintenance and diagnostic processes to the targeted control of the machines: the range of services is diversified and it is an ideal supplement to the WIRTGEN GROUP Smart Service agreements.

Find out more

External power supply

(Dual Power Option)

Electricity is often cheaper than diesel. Added to this are ecological, legal or social provisions that often restrict the use of diesel.

The screening plants are equipped with a Dual Power System with two electric motors each with 37 kW (50 PS) for high work output combined with low fuel consumption. Connection is made via an electrical device. This permits a quick switch between two power sources (diesel engine or external power supply). Users thus remain flexible and the pollutant emission is reduced.

Technical specifications

Max. feed size
Feeding height
Feed capacity up to approx.
Hopper volume
Max. feed size
800 mm x 500 mm x 300 mm
Feeding height
3,570 mm
Feed capacity up to approx.
500 t/h
Hopper volume
9.1 m³
Width x length
Width x length
1,400 mm x 4,500 mm
Width x length
Width x length
1,200 mm x 4,380 mm
Discharge height approx.
Width x length
Discharge height approx.
3,630 mm
Width x length
900 mm x 7,760 mm
Discharge height approx.
Width x length
Discharge height approx.
4,050 mm
Width x length
1,400 mm x 6,065 mm
Model
Upper deck (W x L)
Lower deck (W x L)
Model
Double-deck screen machine
Upper deck (W x L)
1,550 mm x 4,880 mm
Lower deck (W x L)
1,550 mm x 4,500 mm
Drive concept
Power supply unit output
Drive concept
Diesel-hydraulic
Power supply unit output
99 kW
Transport height approx. (default value)
Transport length approx.
Transport width approx.
Transport weight of basic plant approx.
Transport height approx. (default value)
3,400 mm
Transport length approx.
15,840 mm
Transport width approx.
3,000 mm
Transport weight of basic plant approx.
30,000 kg

All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
