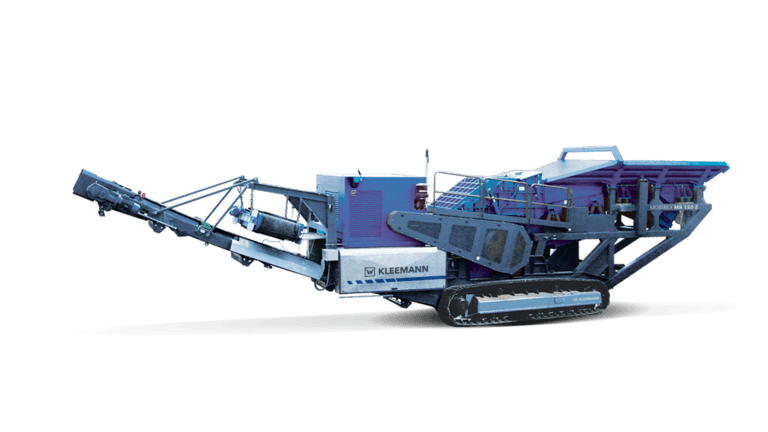

MR 150 Z Mobile impact crusher
t/h
Properties
The MR 150 Z is the largest standalone transportable impact crusher plant from KLEEMANN. It is distinguished from the MR 122 Z not only due to the larger material flow width but mainly due to its drive concept: In order to achieve the maximum output in a limited space, the plant has a powerful diesel engine most of its power of which is used to drive the crusher. With this drive variant, the MR 150 Z has the lowest consumption of all mobile impact crushers of its kind.
Show less
Effective prescreening - better results and less wear
For effective prescreening of the feed material, the crushing plants are equipped with an independently vibrating double-deck prescreen. Wear in the crushing chamber is thus reduced by diverting the medium grain directly onto the vibrating extractor. The screen surfaces in the upper and lower deck can be changed easily and safely.
Impact crusher
In contrast to pressure crushing, the impact crusher operates according to the impact crushing principle. In this process, the crushed material is picked up by a fast moving rotor, greatly accelerated and smashed against a fixed impact plate ("impact toggles"). From there, it falls back within range of the rotor. The crushed material is broken again and again until it can pass through the gap between the rotor and impact toggle.
Technical specifications
- Max. feed size
- Feeding height
- Feed capacity up to approx.
- Hopper width
- Hopper length
- Hopper volume
-
- Max. feed size
- 760 mm x 1,220 mm x 456 mm
- Feeding height
- 4,600 mm
- Feed capacity up to approx.
- 550 t/h
- Hopper width
- 3,050 mm
- Hopper length
- 3,900 mm
- Hopper volume
- 9 m³
- Width x length
-
- Width x length
- 1,480 mm x 3,500 mm
- Width x length
- Model
-
- Width x length
- 1,460 mm x 2,540 mm
- Model
- Double-deck heavy-piece screen
- Discharge height
- Width
- Length
-
- Discharge height
- 3,400 mm
- Width
- 650 mm
- Length
- 6,000 mm
- Crusher drive type
- Crusher inlet (W x H)
- Crusher weight (approx.)
- Crushing power
- Impact crusher model
- Rotor diameter
- Adjustment of impact toggles
-
- Crusher drive type
- Electric
- Crusher inlet (W x H)
- 1,520 mm x 990 mm
- Crusher weight (approx.)
- 22,000 kg
- Crushing power
- 315 kW
- Impact crusher model
- SHB 15/100
- Rotor diameter
- 1,330 mm
- Adjustment of impact toggles
- stepless, fully hydraulic
- Crushing capacity demolished concrete up to approx.
- Crushing capacity rubble up to approx.
- Crushing capacity demolished asphalt up to approx.
- Crushing capacity limestone up to approx.
-
- Crushing capacity demolished concrete up to approx.
- 355 t/h
- Crushing capacity rubble up to approx.
- 355 t/h
- Crushing capacity demolished asphalt up to approx.
- 305 t/h
- Crushing capacity limestone up to approx.
- 320 t/h
- Width x length
-
- Width x length
- 1,400 mm x 2,600 mm
- Discharge height approx.
- Width
- Length
-
- Discharge height approx.
- 3,850 mm
- Width
- 1,500 mm
- Length
- 10,000 mm
- Drive concept
- Power supply unit output
- Power pack manufacturer
- Generator
-
- Drive concept
- E-DRIVE (Diesel-electric)
- Power supply unit output
- 481 kW
- Power pack manufacturer
- Scania
- Generator
- 880 kVA
- Transport height approx. (default value)
- Transport length approx.
- Transport width approx.
- Transport weight of basic plant approx.
-
- Transport height approx. (default value)
- 4,100 mm
- Transport length approx.
- 17,380 mm
- Transport width approx.
- 3,600 mm
- Transport weight of basic plant approx.
- 78,500 kg
All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
