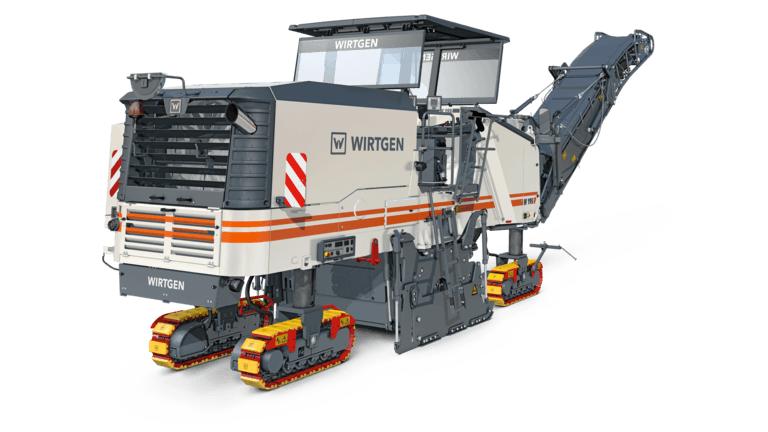

Large milling machine W 195i

W 195i Large milling machine

CN NR Stage 4

2,000

mm

330

mm

Advanced – Cold milling machine for economical applications.

  • Two-meter front loader in tried-and-tested design for efficient milling operations.
  • The machine is suitable for all milling applications typical of the two-meter class.
  • High daily production rates can be achieved thanks to an exceptionally simple and reliable operating concept.
  • Optimized weight and advanced machine technology ensure high flexibility in operation.
  • The cold milling machine is exceptionally cost-effective thanks to low diesel consumption and tool use.
Show less
Highlights
Ease of operation
Maximum precision guaranteed by LEVEL PRO PLUS
Ease of maintenance
Reduced diesel consumption for increased efficiency
Excellent manoeuvrability and mobility on site
Heavy-duty milling drum
Milling drum unit featuring state-of-the-art cutting technology
Wide, fast loading conveyor for maximum loading capacity
Effective milling performance
Significant reduction of tool cost

Cold milling with large milling machines

Large milling machines are designed with a milling drum arranged in the centre of the machine and a forward-loading two-stage conveyor system. They are therefore called front loaders. The powerful, slewing and height-adjustable discharge conveyor enables large trucks to be loaded quickly and with maximum flexibility. Front loaders are usually equipped with a walk-through operator‘s platform offering a high level of operator comfort. Alternatively, they are supplied with a hydraulically moving and swivelling operator’s cabin. Numerous intelligent automated features support the operator in performing his job. Front loaders are equipped with four hydraulically steerable and height-adjustable track units.

Learn more

WIRTGEN cutting technology

Results of high quality are the main goal of every construction project. This applies to road rehabilitation using cold milling machines and cold recyclers as well as to soil stabilization and the extraction of useful minerals using surface miners. Optimum interaction between the milling drum, toolholder and pick is essential for precise, efficient paving removal.

WIRTGEN is a market leader in cutting technology and offers customers perfectly matched, high-performance cutting systems. WIRTGEN is also constantly developing its cutting technology components further. Such further developments are largely based on practical experience and feedback from our customers.

Learn more

WIRTGEN levelling technology

WIRTGEN levelling technology controls height, depth and slope to achieve results of maximum precision. In the process, the system continuously reconciles the actual values with a preselected target value, correcting any deviations by means of proportional control. State-of-the-art machine engineering ensures levelling results of consistently high quality while at the same time relieving the machine operator of a significant part of his workload.

WIRTGEN offers customers reliable hardware and software developed in-house. Different systems are used depending on the construction project to be completed and local conditions on site.

Learn more

Control technology

WIRTGEN machines are fitted with a machine control system of the highest quality, in which the large proportion of software developed in-house plays the decisive role. WIRTGEN puts a special focus on continuous improvement, which has the added effect of significantly increasing the operational reliability of the machines. In addition, many years of experience in software and hardware development allow for higher and more flexible machine functionality in terms of applications and meeting specific customer requirements.

Learn more

Technical specifications

Exhaust emissions category
Operating weight, CE
Milling width
Milling depth max.
Displacement
Maximum power
Rated power
Exhaust emissions category
CN NR Stage 4
Operating weight, CE
29,710 kg
Milling width
2,000 mm
Milling depth max.
330 mm
Displacement
15 l
Maximum power
410 kW / 557 HP
Rated power
373 kW / 507 HP

All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
